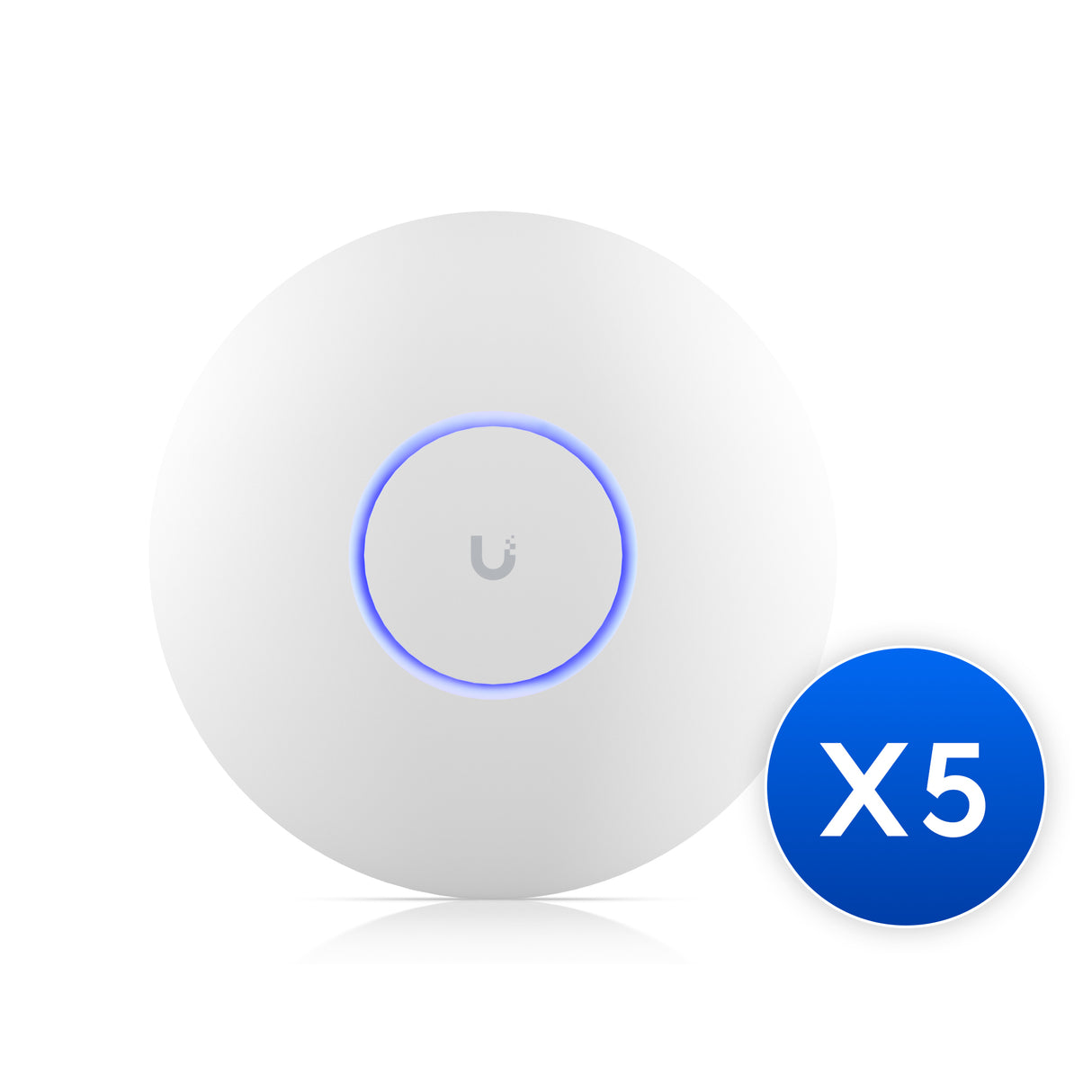

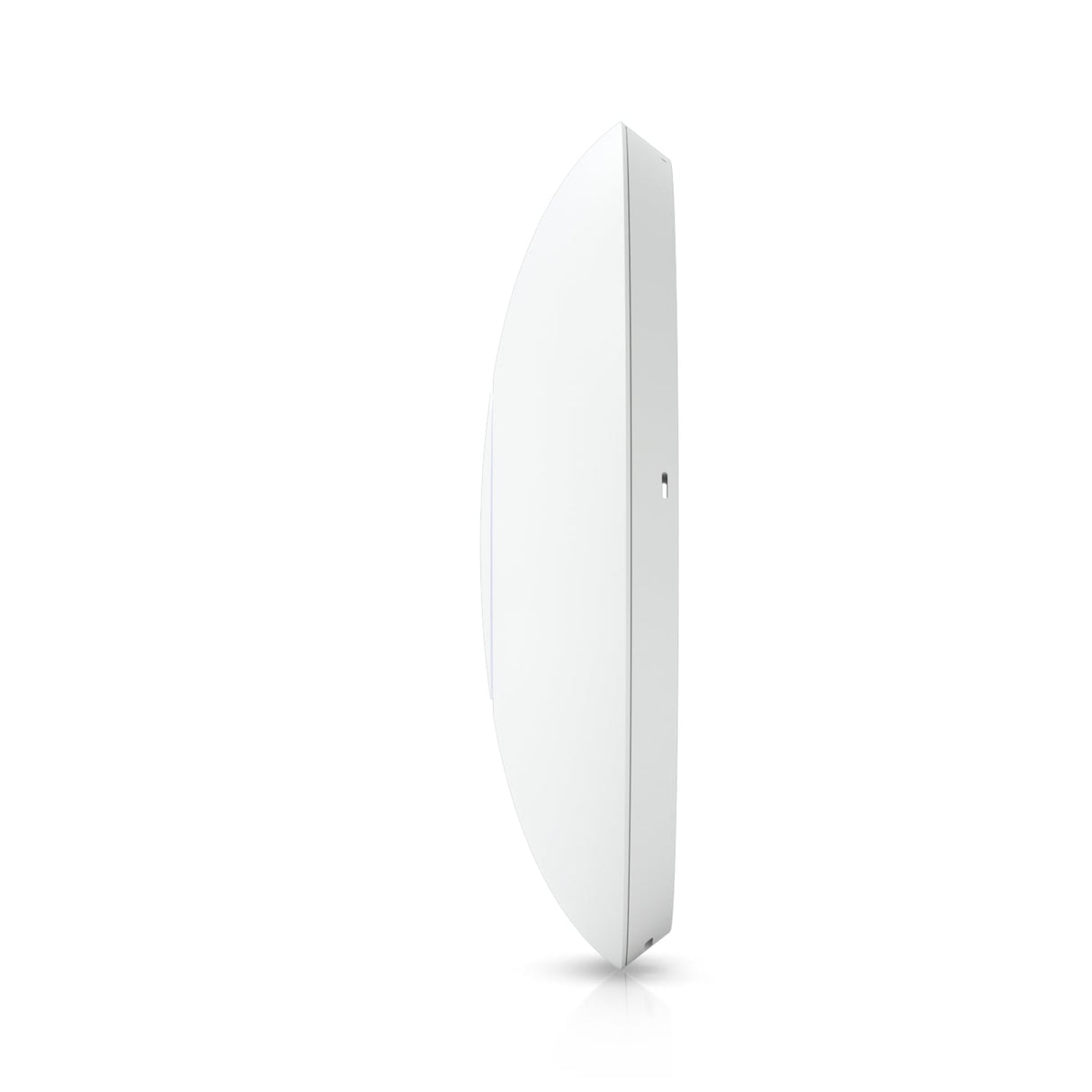

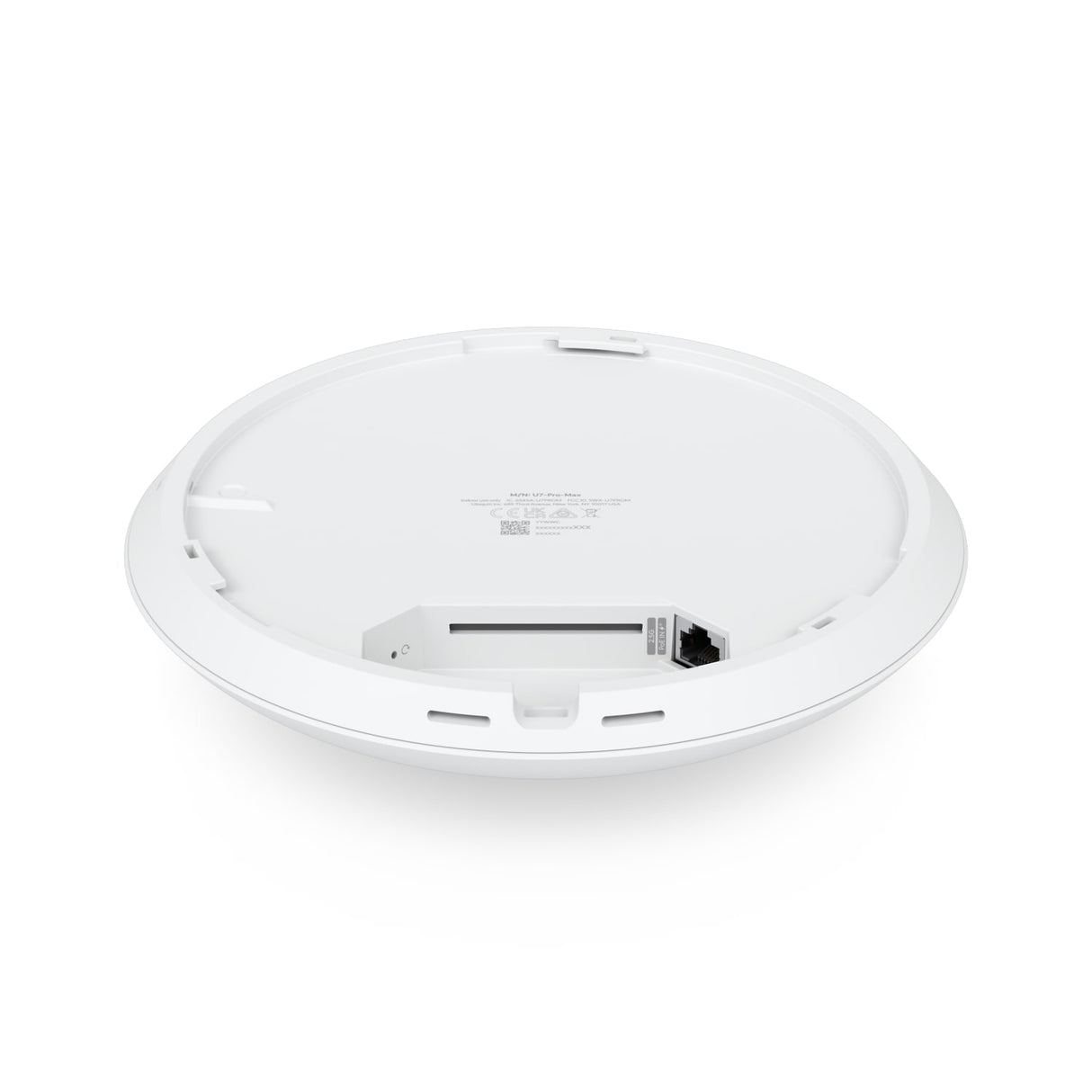

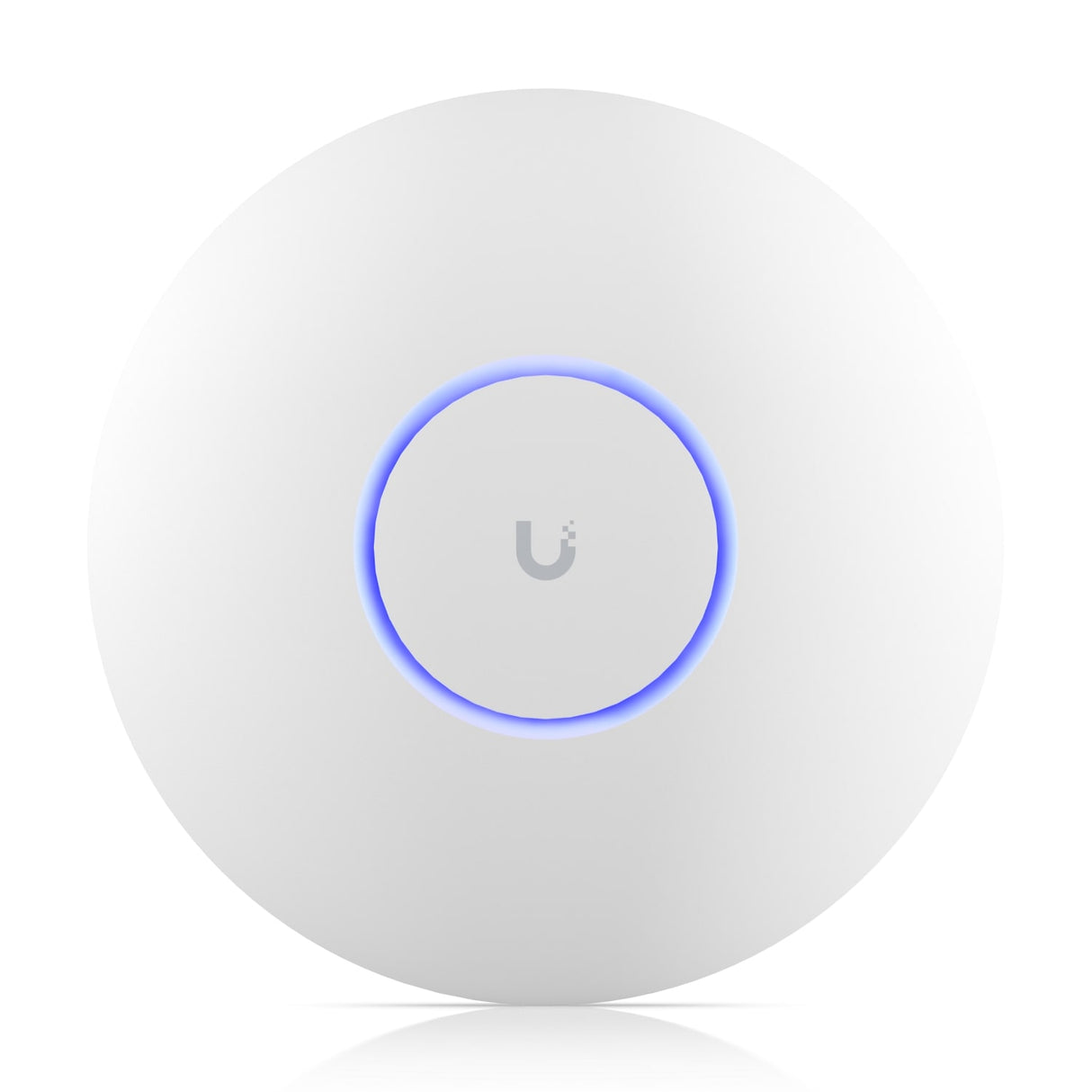

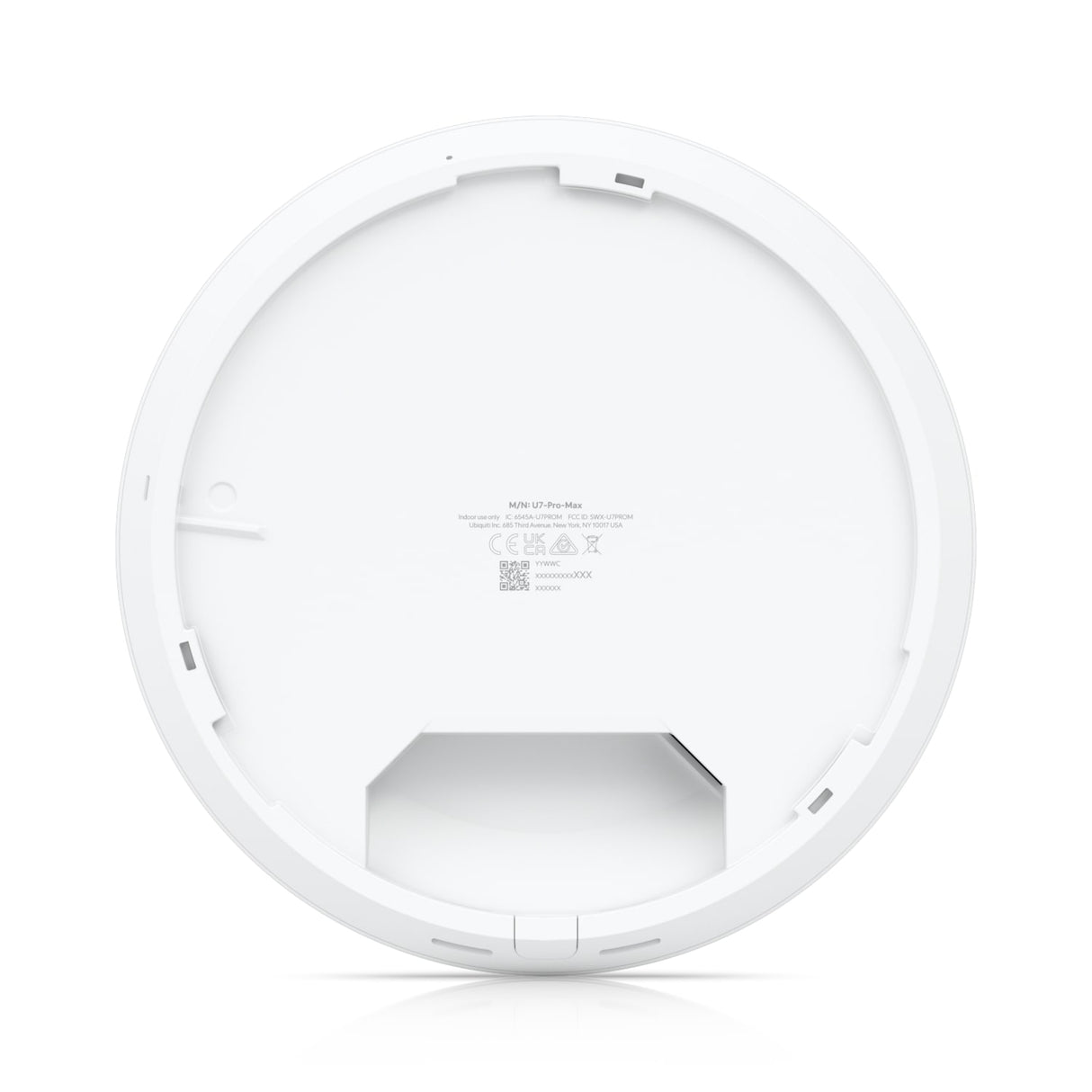

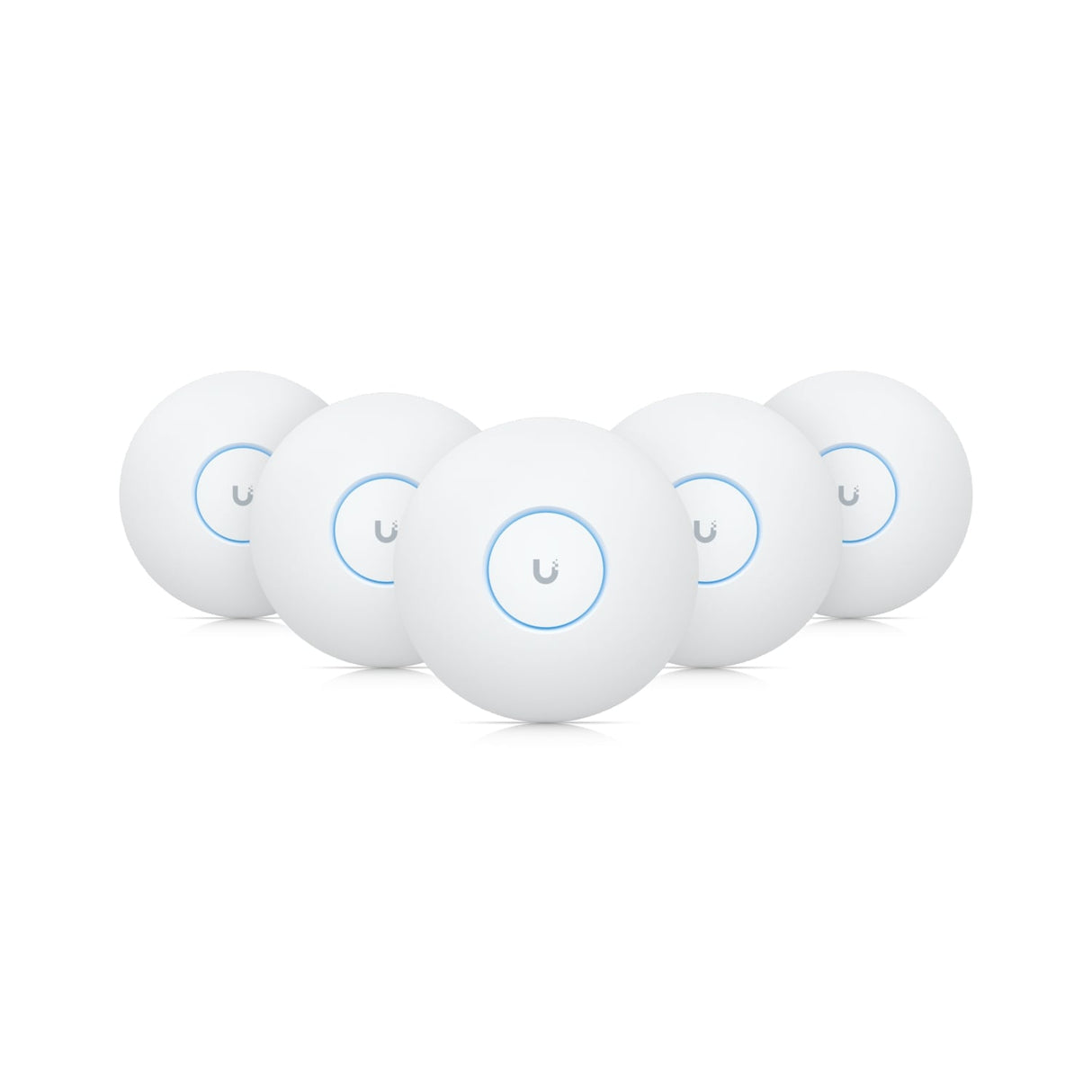

UBIQUITI U7-Pro-Max Ceiling-mounted Wi-Fi 7 Access Point - 5 Pack

Ceiling-mounted Wi-Fi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free Wi-Fi in demanding, large-scale environments.

Wi-Fi 7 with 6 GHz support
8 spatial streams
Real-time spectral analysis for enhanced channel selection*
160 m² (1,750 ft²) coverage
500+ connected devices
Powered using PoE+
2.5 GbE uplink

Multi-Link Operation (MLO) capability is coming soon and will be provided via software update.

*Requires UniFi Network 8.2.93 and later.

The Wi-Fi Industry Standard

The Ubiquiti U7 Pro Max, a Wi-Fi 7 access point, offers advanced features ideal for high-density environments like offices and conference venues. It delivers up to 14,988 Mbps across the 2.4 GHz, 5 GHz, and 6 GHz bands, which supports more than 500 devices simultaneously with low latency and consistent performance.

Exceptional Multi-Device Support for High-Traffic Environments

The Ubiquiti U7 Pro Max is designed to provide extensive wireless coverage, ideal for homes, offices, and even large open spaces. It offers a coverage area of up to 160 square metres, and can support over 500 connected devices, making it suitable for environments with a high number of users and devices.

Versatile Mounting Options

The Ubiquiti U7 Pro Max offers versatile and convenient mounting options, making it easy to install for both wall and ceiling configurations. The included wall and ceiling mounting kit simplifies installation and provides a secure, unobtrusive fit, blending into most settings while delivering seamless, high-speed Wi-Fi 7 coverage.

Enhanced Security and Simplified Installation

This AP includes WPA, WPA2, and WPA3 encryption standards, improving network security for various devices and applications. It also features a 2.5 GbE PoE+ port for power and data through a single cable, simplifying setup and reducing infrastructure complexity.


Technical Specs
Mechanical
Dimensions
Ø206 x 46 mm (Ø8.1 x 1.8")
Weight
680 g (1.5 lb)
Enclosure material
Polycarbonate, aluminium
Mount material
Stainless steel (SUS304), galvanised steel (SGCC)
Hardware
Networking interface
(1) 1/2.5 GbE RJ45 port
Management interface
Ethernet
Power method
PoE+
Power supply
UniFi PoE switch
Supported voltage range
44—57V DC
Max. power consumption
25W
Max. TX power - 2.4 GHz
23 dBm
Max. TX power - 5 GHz
29 dBm
Max. TX power - 6 GHz
23 dBm
MIMO - 2.4 GHz
2 x 2 (DL/UL MU-MIMO)
MIMO - 5 GHz
4 x 4 (DL/UL MU-MIMO)
MIMO - 6 GHz
2 x 2 (DL/UL MU-MIMO)
Max. data rate - 2.4 GHz
688 Mbps (BW40)
Max. data rate - 5 GHz
8.6 Gbps (BW240)
Max. data rate - 6 GHz
5.7 Gbps (BW320)
Antenna gain - 2.4 GHz
4 dBi
Antenna gain - 5 GHz
6 dBi
Antenna gain - 6 GHz
5.9 dBi
LEDs
White/blue
Button
Factory reset
Mounting
Wall, ceiling (Included)
Ambient operating temperature
-30 to 50° C (-22 to 122° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi standards
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest traffic isolation
Supported
Concurrent clients
500+
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be (WiFi 7) - 5 GHz
7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11be (WiFi 7) - 6 GHz
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network
Version 8.2.93 and later
