100GbE QSFP28 LR4 Optical Transceiver NVIDIA Networking MMA1L10-CR is a 4-channel, pluggable, QSFP28, optical transceiver designed for use in 100 GbE links with up to 10 km reach on single mode fiber. The transceiver is compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4, and IEEE 802.3bm CAUI-4 standards. The MMA1L10-CR module converts 4 input channels of 25 Gb/s electrical data to 4 channels of LAN WDM optical signals at 4 different wavelengths and then multiplexes these into a single optical transmit signal. Reversely, on the receiver side the module de-multiplexes a 100 Gb/s optical LAN WDM input into 4 optical signals and then converts these to 4 electrical differential output signals. MMA1L10-CR has selectable retiming as specified in the QSFP28 MSA. This enables the transceiver to be used in both 40 GbE and 100 GbE applications. Digital diagnostic monitoring functions for temperature, supply voltage, and optical power are available via the two-wire (I2C) management interface, as specified by the QSFP28 MSA. The optical connector is a duplex LC/UPC (un-angled) connector intended for a pair of single mode fibers. Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.

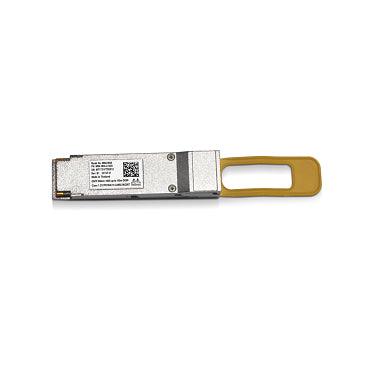

Nvidia MMA1L10-CR network transceiver module Fiber optic 100000 Mbit/s QSFP28 1310 nm

NVIDIA  |  SKU: MMA1L10-CR
$2,72844 RRP $3,21520
$3,00128 Incl. GST
Shipping calculated at checkout.

Care information

👉 If you discover a fault within 14 days of receiving your item(s), we will help you replace or repair it. Please email us at hello@techforgood.com.au.

👉Our warranty policy can be found here.

Delivery and Shipping

👉Orders received before 12pm (AEST) are dispatched same day (Mon-Fri only)

👉Orders are only processed Monday-Friday (and not on public holidays).

👉You can expect your order to arrive within 3-5 days.

👉We do not ship to PO box addresses.

👉Our full shipping policy can be found here.

Shop with purpose! We use 2% of this transaction to buy a mobile for a person in need.

Nvidia MMA1L10-CR network transceiver module Fiber optic 100000 Mbit/s QSFP28 1310 nm
NVIDIA

Nvidia MMA1L10-CR network transceiver module Fiber optic 100000 Mbit/s QSFP28 1310 nm

$2,72844 RRP $3,21520
$3,00128 Incl. GST
100GbE QSFP28 LR4 Optical Transceiver NVIDIA Networking MMA1L10-CR is a 4-channel, pluggable, QSFP28, optical transceiver designed for use in 100 GbE links with up to 10 km reach on single mode fiber. The transceiver is compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4, and IEEE 802.3bm CAUI-4 standards. The MMA1L10-CR module converts 4 input channels of 25 Gb/s electrical data to 4 channels of LAN WDM optical signals at 4 different wavelengths and then multiplexes these into a single optical transmit signal. Reversely, on the receiver side the module de-multiplexes a 100 Gb/s optical LAN WDM input into 4 optical signals and then converts these to 4 electrical differential output signals. MMA1L10-CR has selectable retiming as specified in the QSFP28 MSA. This enables the transceiver to be used in both 40 GbE and 100 GbE applications. Digital diagnostic monitoring functions for temperature, supply voltage, and optical power are available via the two-wire (I2C) management interface, as specified by the QSFP28 MSA. The optical connector is a duplex LC/UPC (un-angled) connector intended for a pair of single mode fibers. Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
