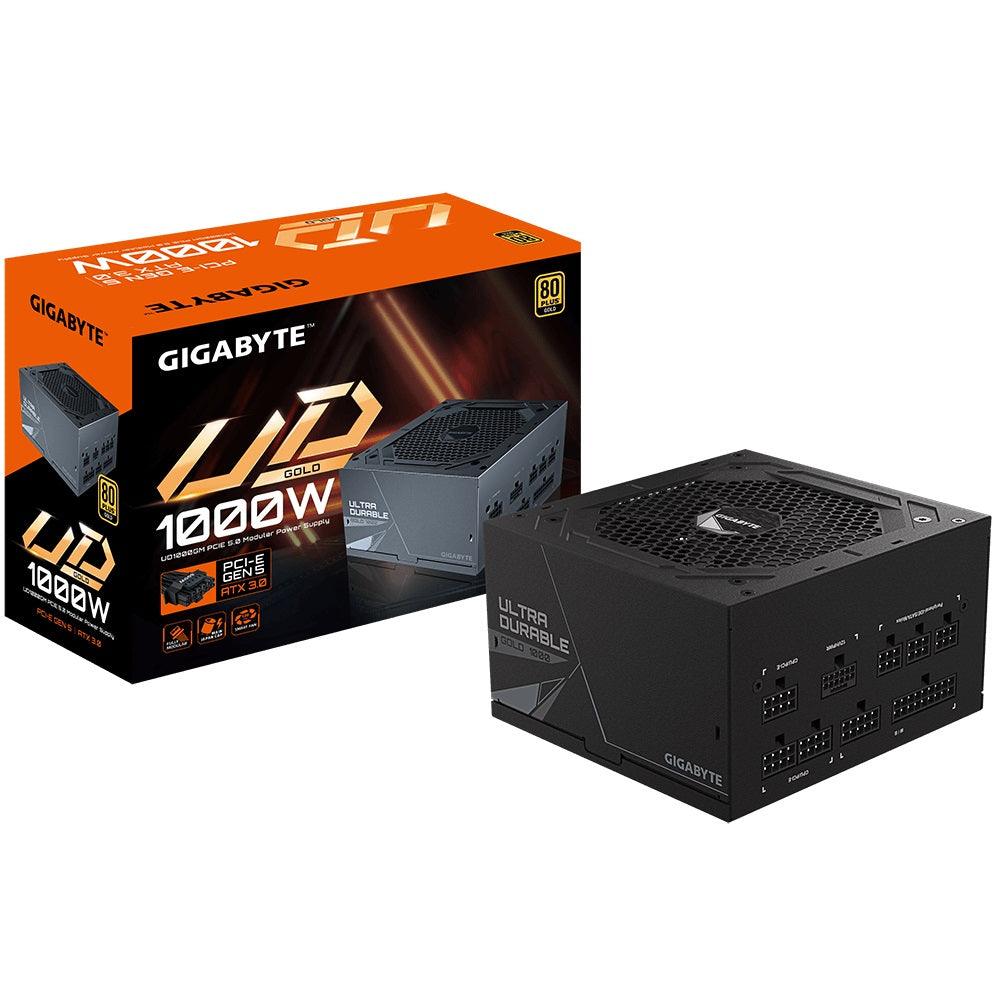

Gigabyte UD1000GM PG5 2.0 1000W ATX PSU Power Supply 80+ Gold >90% 120mm Fan Black Flat Cables Single +12V >100K Hrs
KEY FEATURE
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
120mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics cards
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact design
10 years warranty (Adjusted according to different regions)
SPECIFICATION:
Model GP-UD1000GM PG5
Type Intel Form Factor ATX 12V v3.0
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 15-6.5A
Input Frequency 60-50 Hz
Output Capacity 1000W
Dimension 150 x 140 x 86 mm
Fan Type 120mm Hydraulic Bearing(HYB)fan
80 PLUS Gold
Efficiency 90% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, All black
Connectors:
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
KEY FEATURE
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
120mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics cards
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact design
10 years warranty (Adjusted according to different regions)
SPECIFICATION:
Model GP-UD1000GM PG5
Type Intel Form Factor ATX 12V v3.0
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 15-6.5A
Input Frequency 60-50 Hz
Output Capacity 1000W
Dimension 150 x 140 x 86 mm
Fan Type 120mm Hydraulic Bearing(HYB)fan
80 PLUS Gold
Efficiency 90% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, All black
Connectors:
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
Gigabyte UD1000GM PG5 2.0 1000W ATX PSU Power Supply 80+ Gold >90% 120mm Fan Black Flat Cables Single +12V >100K Hrs
GIGABYTE | SKU:
GP-UD1000GM PG5 2.0
$27261
RRP
$31482
Unit price
/
Unavailable
$29987
Incl. GST
Shipping calculated at checkout.
Couldn't load pickup availability
