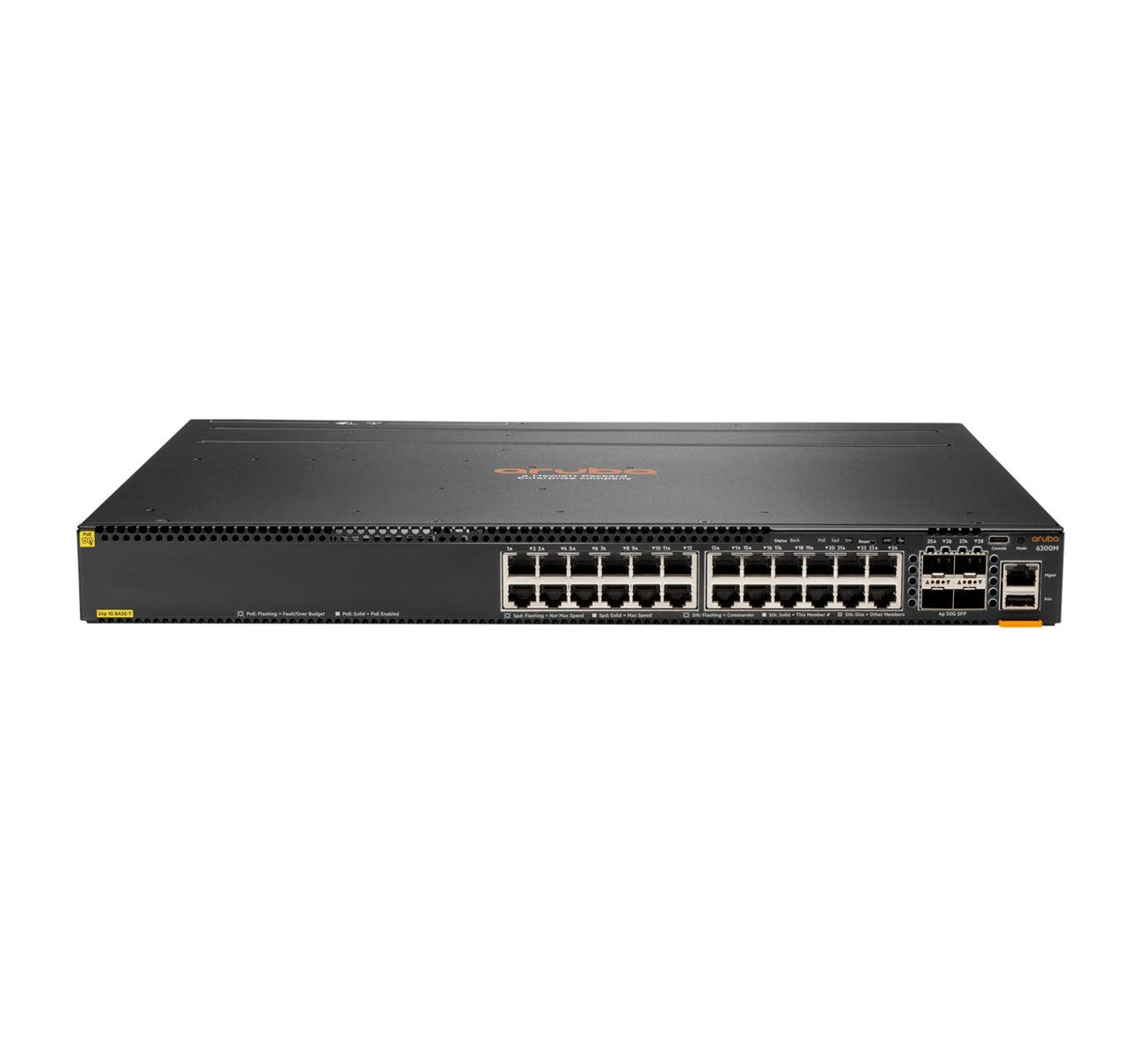

High-Performance Enterprise Access Switch – Designed for Scalability & Ease of Management

The ARUBA 6300M is a powerful managed Layer 3 switch tailored for enterprise access and aggregation layers. Ideal for SMBs and large enterprises, it delivers advanced programmability, comprehensive analytics, and robust PoE capabilities to ensure reliable and scalable network performance.

🔌 Ports & Connectivity

• Port Count & Type: 24x Gigabit RJ45 ports
• Uplink Ports: 4x SFP56 ports supporting 1GbE, 10GbE, 25GbE, and 50GbE speeds
• PoE Support: 24 ports with Class 4 PoE, 60W per port, total 2880W PoE budget
• Stacking: Aruba Virtual Stacking Framework (VSF), up to 10 switches, 200Gbps stacking throughput per switch

⚙️ Management & Intelligence

• Management Type: Managed Layer 3
• Management Interface: CLI, REST APIs, Aruba NetEdit, Aruba CX Mobile App for seamless configuration and automation
• VLAN Support: Supports advanced 802.1Q VLANs with dynamic segmentation
• Routing: Static and dynamic routing protocols with VXLAN to VRF mapping

🛡️ Security & QoS

• Access Control: Role-based access control, automated device profiling, 802.1X authentication
• QoS: Advanced traffic prioritization with configurable QoS queues for VoIP and video
• Storm Control: Broadcast and multicast storm protection to maintain network stability

⚡ Performance

• Switching Capacity: High throughput with Aruba Gen7 ASIC architecture, non-blocking performance
• Forwarding Rate: Low latency with enhanced packet buffering (exact Mpps not specified)
• MAC Table: Large MAC address table supporting enterprise environments
• Jumbo Frames: Supports jumbo frames for optimized data transfer

🏗️ Form Factor & Installation

• Form Factor: 1U Rack-Mount
• Dimensions: Standard 1U rack unit (exact physical dimensions not specified)
• Cooling: Fan-cooled for reliable operation in enterprise environments
• Power: Supports high PoE power budget of 2880W; power redundancy options not specified

📦 What's in the Box

• Aruba 6300M switch unit
• Power cord
• Rack-mount brackets
• Console cable
• Quick installation guide

🛡️ Warranty

Backed by a HPE Limited Warranty.

Experience reliable connectivity and scalable enterprise networking with the ARUBA 6300M series, designed for seamless deployment and advanced management.
