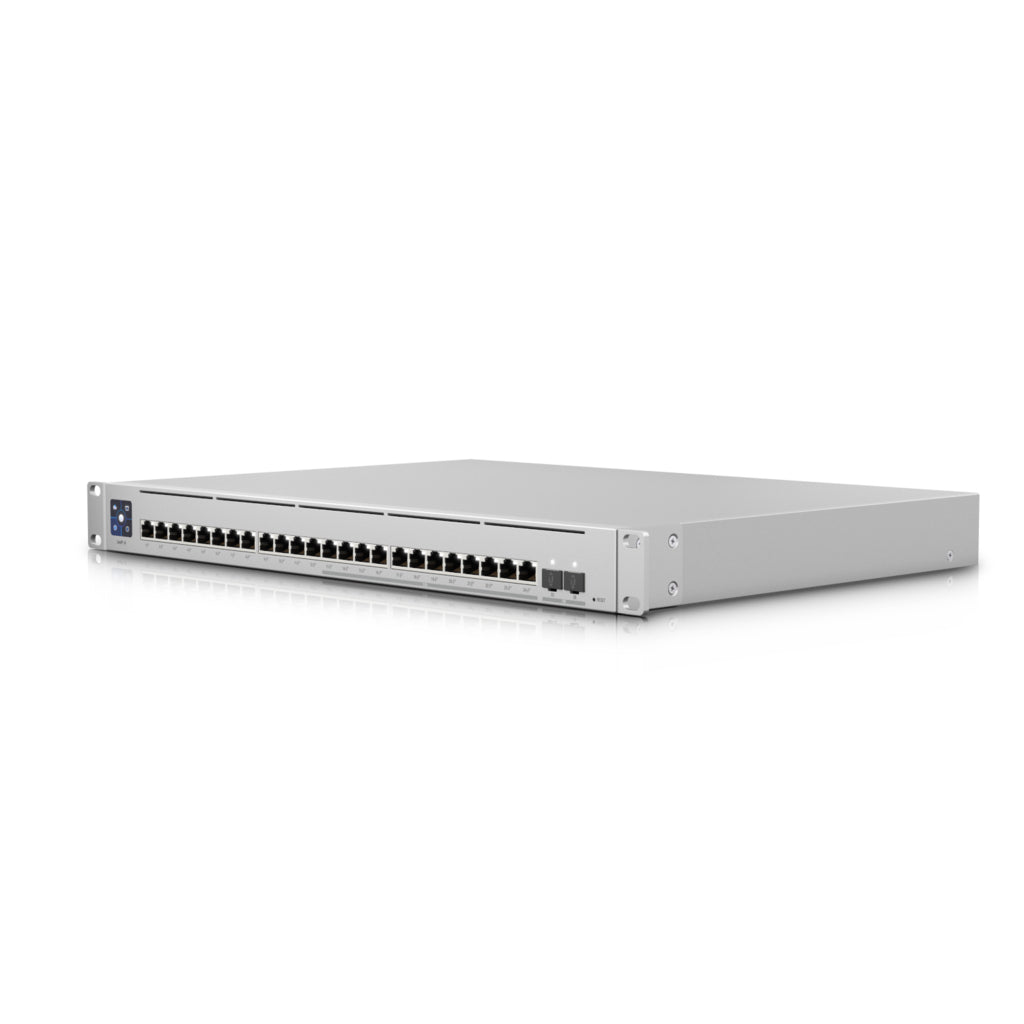

High-Performance Managed Layer 3 PoE Switch – Optimized for Enterprise Networks
The UBIQUITI USW-ENTERPRISE-24-POE is a versatile managed Layer 3 network switch designed for enterprises and SMBs requiring reliable, scalable, and high-speed connectivity. It delivers comprehensive PoE support to power WiFi 6 access points and advanced fiber uplinks for seamless network expansion.
🔌 Ports & Connectivity
- Port Count & Type: 12x 2.5G RJ45 PoE+ ports, 12x 1G RJ45 PoE+ ports
- Uplink Ports: 2x 10G SFP+ fiber ports for high-speed uplinks
- PoE Support: 24x PoE+ capable ports with auto-sensing 802.3at PoE+
- Stacking: Not specified
⚙️ Management & Intelligence
- Management Type: Managed Layer 3 switch with advanced routing
- Management Interface: Touchscreen interface, cloud-integrated UniFi management
- VLAN Support: Supports 802.1Q VLAN segmentation (exact capacity not specified)
- Routing: Supports static and dynamic Layer 3 routing protocols
🛡️ Security & QoS
- Access Control: Role-based ACLs, 802.1X authentication, and MAC filtering
- QoS: Traffic prioritization with advanced QoS queues for VoIP and video
- Storm Control: Broadcast and multicast storm protection
⚡ Performance
- Switching Capacity: Not explicitly specified, supports multi-gigabit Ethernet throughput
- Forwarding Rate: Not specified
- MAC Table: Not specified
- Jumbo Frames: Likely supported (common for enterprise switches)
🏗️ Form Factor & Installation
- Form Factor: Rack-Mount (1U)
- Dimensions: Not specified
- Cooling: Fan-cooled design with intelligent airflow for quiet operation
- Power: Supports UniFi SmartPower Redundant Power System (USP-RPS) for PSU failure protection
📦 What's in the Box
- USW-ENTERPRISE-24-POE switch unit
- Power cord
- Rack-mount brackets
- Console cable
- Quick installation guide
🛡️ Warranty
Backed by a 3-year warranty.
Experience reliable, scalable Layer 3 PoE networking with simplified management and robust uplink capability for your enterprise infrastructure.
| Management features | |
|---|---|
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 2 |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| 10G support | Yes |
| Data transmission | |
| Switching capacity | 124 Gbit/s |
| Forwarding rate | 92.25 Mpps |
| Throughput | 62 Gbit/s |
| Design | |
| Rack mounting | Yes |
| Product colour | Silver |
| LED indicators | Activity, Link, System |
| Housing material | Galvanized steel |
| Certification | CE, FCC, IC |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 550 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 11.5 - 52 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 34.2 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | 10 - 95 °C |
| Weight & dimensions | |
| Width | 442.4 mm |
| Depth | 325 mm |
| Height | 43.7 mm |
| Weight | 5.11 kg |
| Packaging data | |
| Rack mount kit | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Packaging content | |
| Rack mount kit | Yes |
UBIQUITI USW-ENTERPRISE-24-POE – Managed Layer 3 / 24-Port / Gigabit + 2x10G SFP+ – Rack-Mount Network Switch
Ubiquiti | SKU:
USW-Enterprise-24-PoE
$1,40283
RRP
$1,56900
Unit price
/
Unavailable
$1,54311
Incl. GST
