Powerful Managed PoE Switch for High-Density Network Environments

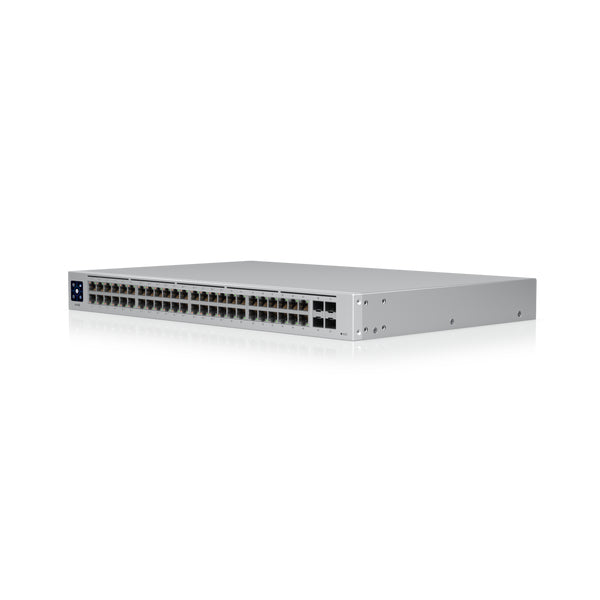

The UBIQUITI USW-48-POE is a 48-port, Layer 2 managed PoE switch designed for SMBs and enterprises seeking reliable, scalable network infrastructure. Its silent, fanless design ensures quiet operation while delivering robust power over Ethernet for connected devices.
🔌 Ports & Connectivity
- Port Count & Type: 48x Gigabit RJ45 ports
- Uplink Ports: Not specified
- PoE Support: PoE-enabled ports, suitable for powering IP cameras, access points, and VoIP phones
- Stacking: Not available
⚙️ Management & Intelligence
- Management Type: Managed Layer 2
- Management Interface: Cloud-managed via UniFi Controller (assumed from product line)
- VLAN Support: Supports 802.1Q VLAN tagging
- Routing: Layer 2 switching, no Layer 3 routing
🛡️ Security & QoS
- Access Control: 802.1X authentication and standard ACL support
- QoS: Traffic prioritization with multiple QoS queues, optimized for VoIP and video
- Storm Control: Broadcast and multicast storm protection implemented
⚡ Performance
- Switching Capacity: High-capacity Gigabit switching fabric (specific Gbps not provided)
- Forwarding Rate: High performance optimized for enterprise deployments
- MAC Table: Large MAC address table for scalability (exact size not specified)
- Jumbo Frames: Support for jumbo frames compatible with modern networks
🏗️ Form Factor & Installation
- Form Factor: 1U Rack-Mount
- Dimensions: Standard 1U height, precise dimensions not specified
- Cooling: Fanless design ensures silent operation
- Power: Integrated PoE power supply, power consumption details not provided
📦 What's in the Box
- UBIQUITI USW-48-POE switch unit
- Power cord
- Rack-mount brackets
- Console cable
- Quick installation guide
🛡️ Warranty
Backed by a Limited Lifetime Warranty.
Experience reliable, scalable networking with a silent PoE switch designed for demanding enterprise environments.
| Virtual LAN features | |
|---|---|
| VLAN support | Yes |
| Management features | |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto-sensing | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 77.38 Mpps |
| Throughput | 52 Gbit/s |
| Security | |
| Authentication type | RADIUS |
| Design | |
| Rack mounting | Yes |
| Product colour | Stainless steel |
| Form factor | 1U |
| LED indicators | Activity, Link, Speed |
| Certification | CE, FCC, IC |
| Performance | |
| Fanless | Yes |
| Power | |
| Power consumption (max) | 45 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Total Power over Ethernet (PoE) budget | 195 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 442.4 mm |
| Depth | 285 mm |
| Height | 43.7 mm |
| Weight | 4.61 kg |
| Packaging data | |
| Manual | Yes |
| Packaging content | |
| Manual | Yes |
UBIQUITI USW-48-POE – Managed PoE / 48-Port / Gigabit – 1U Rack-Mount Network Switch
