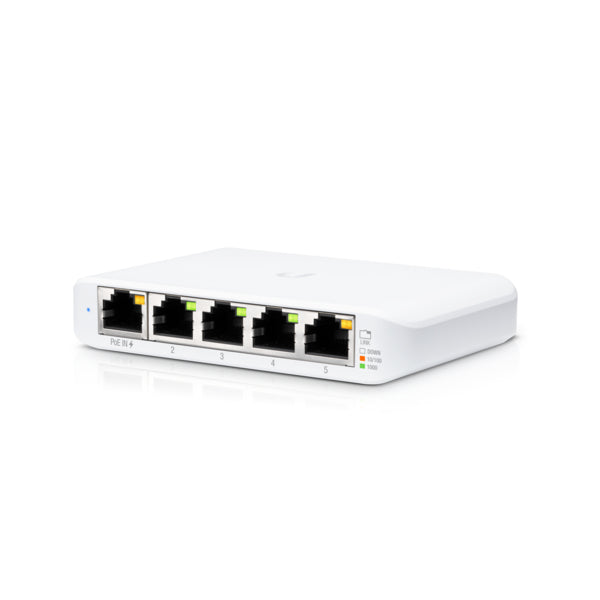

Compact Managed Gigabit Switch for Flexible, Reliable Networks
The UBIQUITI UniFi Switch Flex Mini (USW-FLEX-MINI) is a 5-port managed Gigabit Ethernet switch ideal for SMBs and enterprise edge applications. It delivers reliable connectivity with PoE support and flexible power options for scalable network deployments.
🔌 Ports & Connectivity
- Port Count & Type: 5x Gigabit RJ45 Ethernet ports
- Uplink Ports: None
- PoE Support: PoE 802.3af/at on port 1; USB-C 5V power input
- Stacking: Not supported
⚙️ Management & Intelligence
- Management Type: Managed Layer 2 via UniFi Network Controller
- Management Interface: UniFi Controller GUI (cloud and local management)
- VLAN Support: 802.1Q VLAN tagging and segmentation
- Routing: Layer 2 switching only, no Layer 3 routing
🛡️ Security & QoS
- Access Control: 802.1X authentication, ACL support
- QoS: Traffic prioritization for VoIP and video streaming
- Storm Control: Broadcast and multicast storm protection
⚡ Performance
- Switching Capacity: Up to 10 Gbps fabric capacity
- Forwarding Rate: 7.44 Mpps
- MAC Table: Up to 8K entries
- Jumbo Frames: Supports jumbo frames up to 9 KB
🏗️ Form Factor & Installation
- Form Factor: Compact Desktop design
- Dimensions: Approx. 116 x 93 x 31 mm
- Cooling: Fanless, silent operation
- Power: USB-C 5V 1A adapter or 802.3af PoE input
📦 What's in the Box
- UniFi Switch Flex Mini unit
- USB-C power adapter
- Quick installation guide
🛡️ Warranty
Backed by a 1-year limited warranty.
The UBIQUITI UniFi Switch Flex Mini delivers compact, reliable managed PoE switching to simplify network expansion and enhance performance in diverse environments.
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| Design | |
| Rack mounting | No |
| Product colour | White |
| LED indicators | Activity, Link, Speed, Status |
| Certification | CE, FCC, IC |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 2.5 W |
| DC input voltage | 5 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 1 |
| Power over Ethernet (PoE) voltage | 57 V |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 107.2 mm |
| Depth | 70.2 mm |
| Height | 21.2 mm |
| Weight | 150 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
