Reliable, Scalable PoE Networking for Business Environments

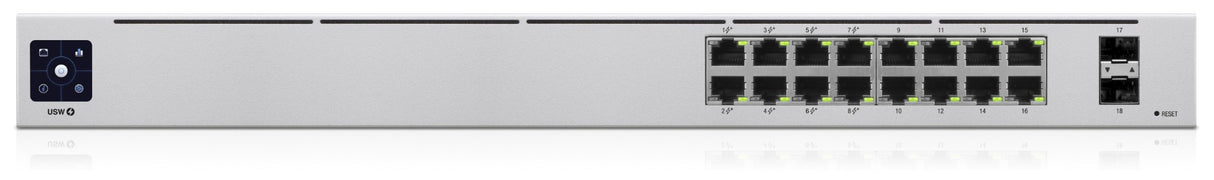

The Ubiquiti Networks UniFi USW-16-POE is a managed PoE switch designed for SMBs and enterprises seeking efficient and dependable network infrastructure. It delivers reliable performance with Layer 2/3 features and advanced PoE capabilities, simplifying network management and uptime.
🔌 Ports & Connectivity
- Port Count & Type: 16x Gigabit RJ45 Ethernet ports with PoE support
- Uplink Ports: Not specified
- PoE Support: PoE+ enabled ports with a robust Power over Ethernet system and SmartPower RPS redundancy supporting up to 6 devices
- Stacking: Not available
⚙️ Management & Intelligence
- Management Type: Managed (Layer 2 / Layer 3)
- Management Interface: Touchscreen display for monitoring and troubleshooting; UniFi controller for comprehensive management
- VLAN Support: Supports 802.1Q VLANs (exact number not specified)
- Routing: Static and dynamic routing capabilities (Layer 3)
🛡️ Security & QoS
- Access Control: Features ACLs and secure device authentication (802.1X)
- QoS: Advanced QoS for traffic prioritization including VoIP and video applications
- Storm Control: Broadcast and multicast storm mitigation for network stability
⚡ Performance
- Switching Capacity: High-capacity gigabit switching fabric (exact Gbps not specified)
- Forwarding Rate: Optimized for fast packet forwarding (Mpps rate not specified)
- MAC Table: Large MAC address table (exact size not specified)
- Jumbo Frames: Supports jumbo frames for efficient large packet transfers
🏗️ Form Factor & Installation
- Form Factor: 1U Rack-Mount
- Dimensions: Standard 1U rack size (specific physical dimensions not provided)
- Cooling: Near silent cooling system reducing fan noise for quiet operation
- Power: Redundant power support via UniFi SmartPower RPS; ensures uptime amid power supply failures
📦 What's in the Box
- UniFi USW-16-POE switch unit
- Power adapter / Power cord
- Rack-mount brackets
- Console cable
- Quick installation guide
🛡️ Warranty
Backed by a Limited Lifetime Warranty.
Experience reliable connectivity with scalable PoE networking and easy management designed for today’s business environments.
| Virtual LAN features | |
|---|---|
| VLAN support | Yes |
| Management features | |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Auto-sensing | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Switching capacity | 36 Gbit/s |
| Throughput | 18000 Mpps |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 26.78 Mpps |
| Security | |
| Authentication type | IEEE 802.1x, RADIUS |
| Design | |
| Rack mounting | Yes |
| Product colour | Silver |
| Form factor | 1U |
| LED indicators | Activity, Link, PoE, Speed, System |
| Certification | CE, FCC, IC |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 44 - 57 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 48 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 442.4 mm |
| Depth | 200 mm |
| Height | 43.7 mm |
| Weight | 2.8 kg |
UBIQUITI USW-16-POE – PoE / 16-Port / Gigabit – 1U Rack-Mount Network Switch
Ubiquiti | SKU:
USW-16-POE-AU
