Compact High-Speed Desktop Switch for Scalable Networks
The UBIQUITI USW FLEX XG is a fully managed Layer 2 switch designed for SMBs and enterprises requiring high-performance multigigabit connectivity. It offers exceptional value with 10GbE power and flexible deployment options.
🔌 Ports & Connectivity
- Port Count & Type: 4x 10GbE RJ45 ports, 1x 1GbE PoE input
- Uplink Ports: None (all RJ45)
- PoE Support: PoE input port to power switch; no PoE output
- Stacking: Not supported
⚙️ Management & Intelligence
- Management Type: Fully Managed Layer 2
- Management Interface: UniFi Network web app and mobile app (cloud-managed)
- VLAN Support: 802.1Q VLANs supported
- Routing: Layer 2 switching only, no Layer 3 routing
🛡️ Security & QoS
- Access Control: ACLs, 802.1X port-based authentication, MAC filtering
- QoS: Traffic prioritization optimized for VoIP and video streams
- Storm Control: Broadcast and multicast storm protection included
⚡ Performance
- Switching Capacity: 40 Gbps full duplex
- Forwarding Rate: 29.8 Mpps
- MAC Table: 8,192 entries
- Jumbo Frames: Supports frames up to 9,216 bytes
🏗️ Form Factor & Installation
- Form Factor: Desktop
- Dimensions: Compact, lightweight design (weight: 1600 grams)
- Cooling: Fanless for silent operation
- Power: Powered via single 1GbE PoE input port
📦 What's in the Box
- Switch unit
- Power adapter (PoE injector)
- Quick installation guide
🛡️ Warranty
Backed by a Limited Lifetime Warranty.
Delivering reliable, scalable, and easy-to-manage 10G connectivity, the USW FLEX XG is ideal for high-performance network environments.
| Management features | |
|---|---|
| Reset button | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Network | |
| Networking standards | IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| 10G support | Yes |
| Data transmission | |
| Switching capacity | 82 Gbit/s |
| Forwarding rate | 61.012 Mpps |
| Throughput | 41 Gbit/s |
| Design | |
| Reset button | Yes |
| Rack mounting | No |
| Product colour | White |
| LED indicators | Yes |
| Housing material | Polycarbonate (PC) |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 25 W |
| Power supply included | Yes |
| AC input voltage | 90 - 264 V |
| Input current | 5 A |
| DC input voltage | 5 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 135 mm |
| Depth | 185 mm |
| Height | 32 mm |
| Weight | 1.2 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |

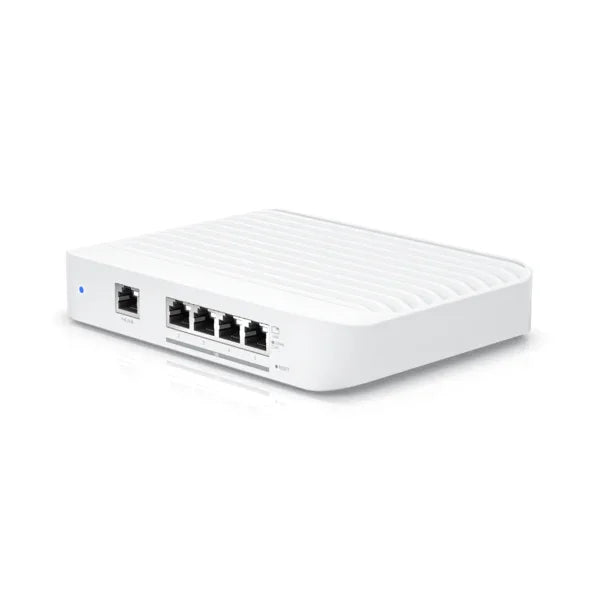

UBIQUITI USW FLEX XG – Managed Layer 2 / 5-Port / 10G – Desktop Network Switch
Ubiquiti | SKU:
USW-Flex-XG
$57915
RRP
$61538
Unit price
/
Unavailable
$63707
Incl. GST
Shipping calculated at checkout.
Couldn't load pickup availability
