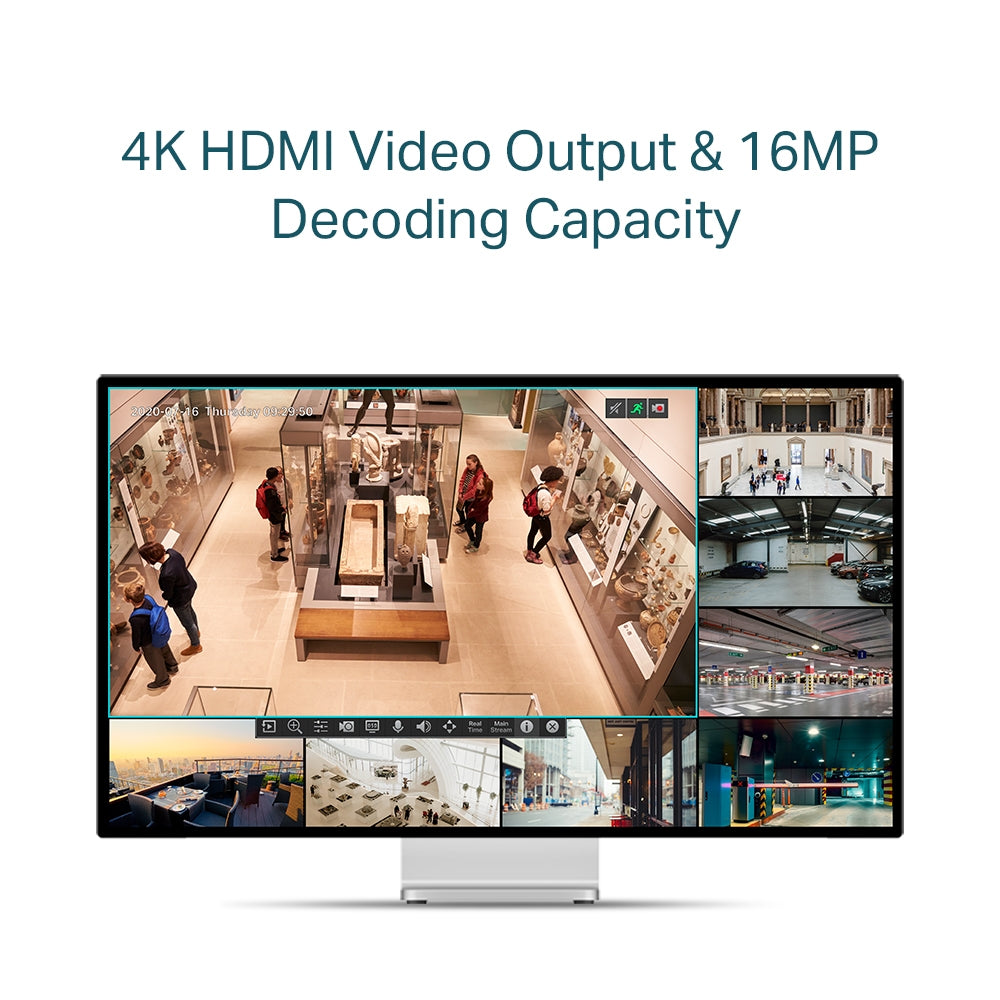

4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.

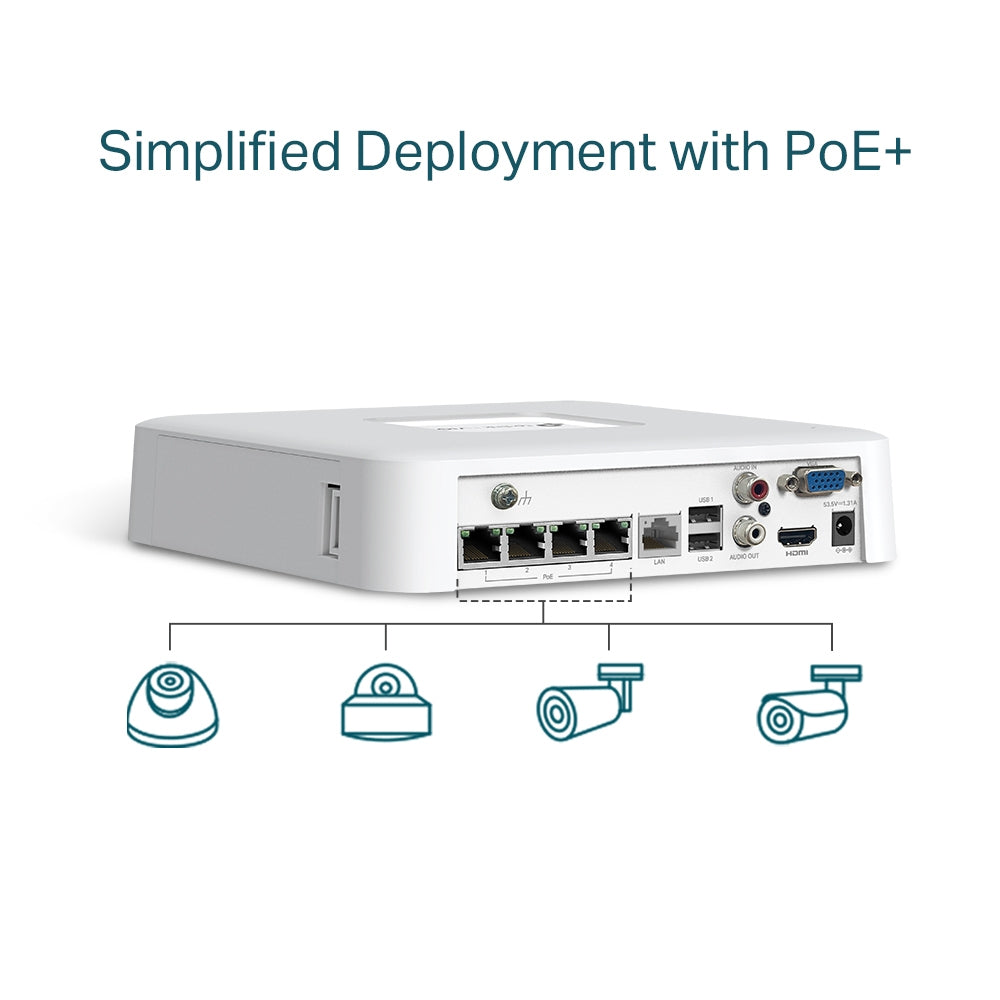

Dedicated 4 PoE+ ports (53 W budget) for simplified IP camera deployment.
Features 4× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.

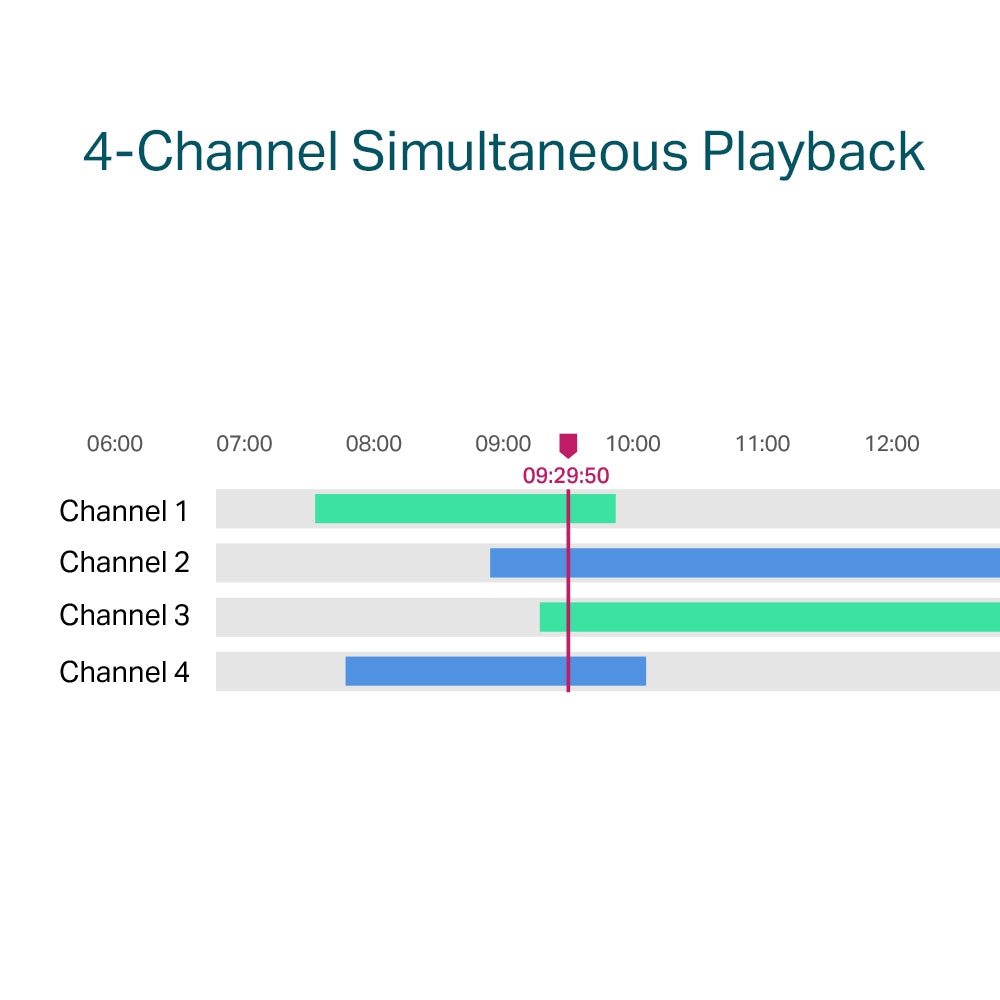

Reviewing footage is faster than ever 4-Channel Simultaneous Playback
Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

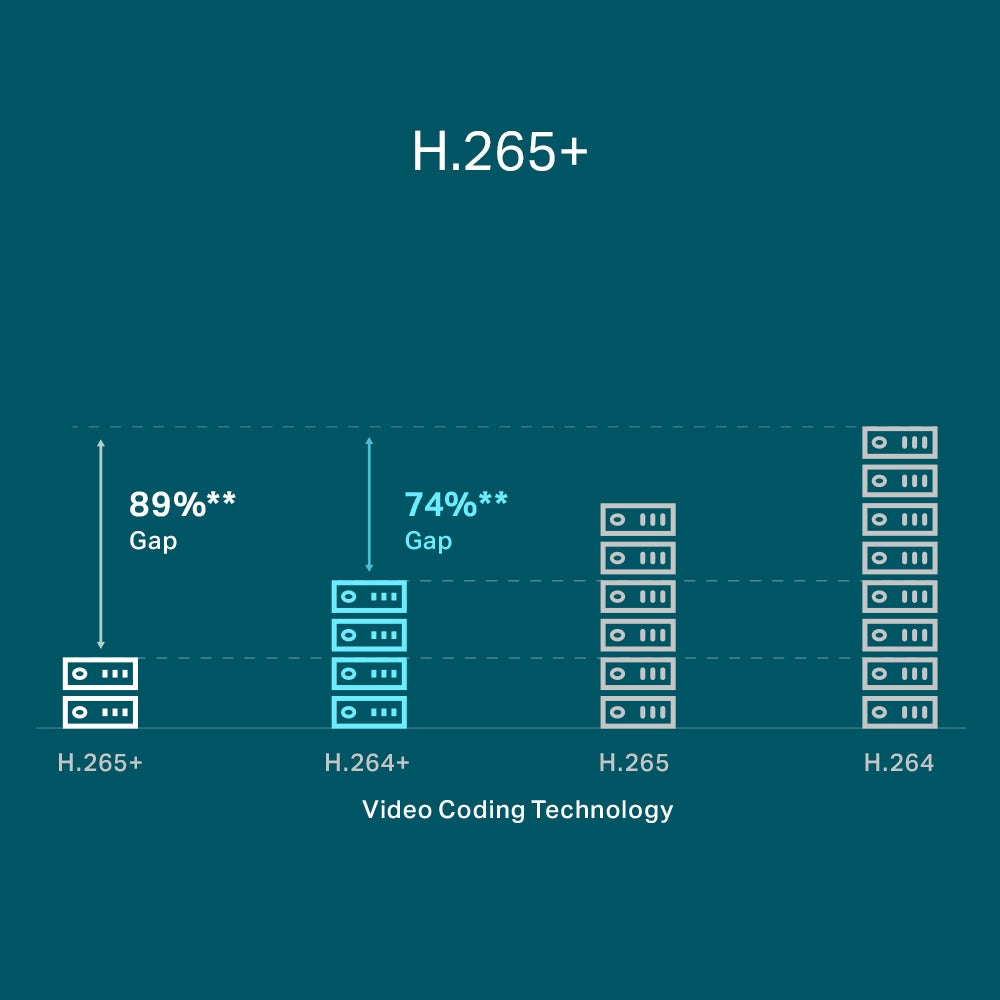

More compression. More savings. Same quality
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
| Performance | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Syslog | Yes |
| DHCP client | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Supported resolutions | HDMI^ 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz VGA: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
| On Screen Display (OSD) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Video input channels | 4 channels |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Supported network protocols | TCP/IP, DHCP, DNS, NTP, UPnP |
| Number of simultaneously playbacked channels | 4 channels |
| Video recording modes | 720p, 1080p |
| Output bandwidth | 60 Mbit/s |
| Input bandwidth | 80 Mbit/s |
| Wireless LAN features | |
| Wi-Fi | No |
| Storage | |
| Number of HDDs supported | 1 |
| HDD interface | SATA |

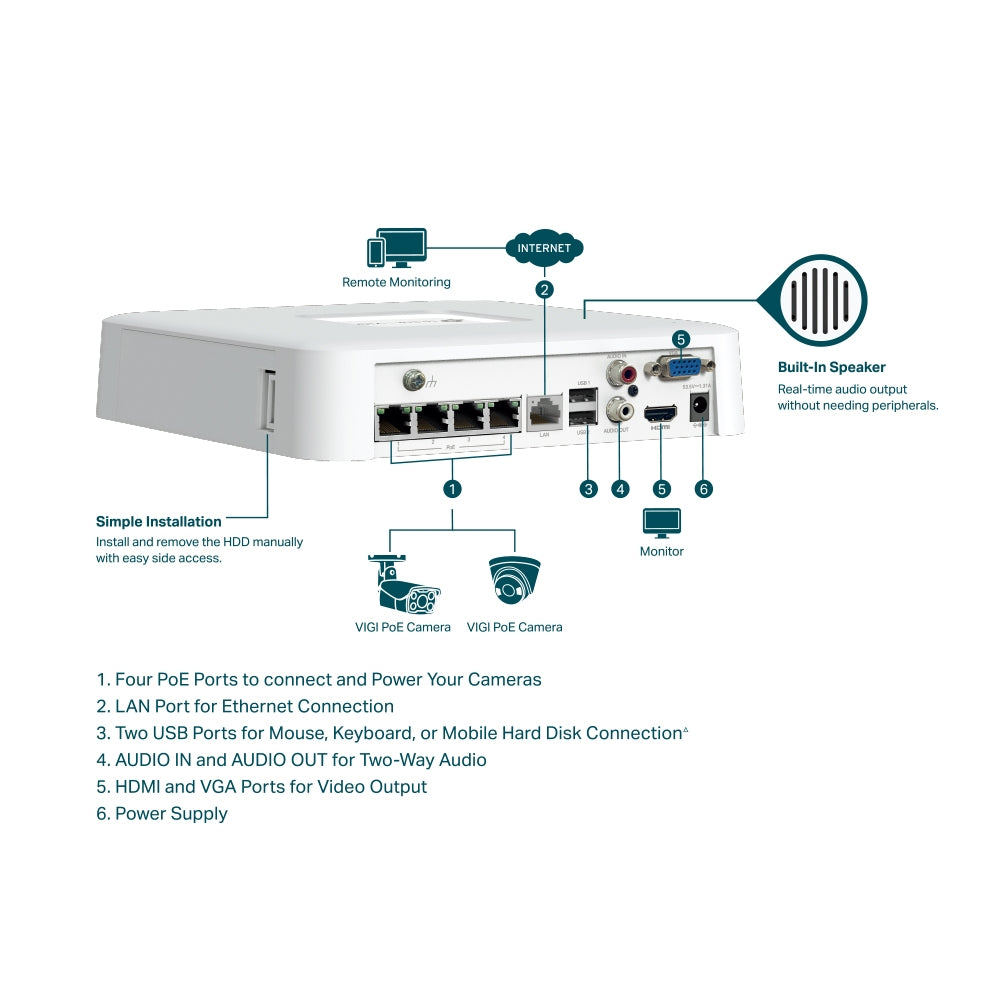

| Ports & interfaces | |
| Line-in | Yes |
| Audio output | 1 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 4 |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| Power over Ethernet (PoE) | Yes |
| VGA (D-Sub) output ports | 1 |
| HDMI output | Yes |
| USB 2.0 ports quantity | 2 |
| Supported network protocols | TCP/IP, DHCP, DNS, NTP, UPnP |
| Ethernet WAN | Yes |
| Features | |
| Product colour | White |
| Rack mounting | No |
| LED indicators | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Output voltage | 53.5 V |
| Output current | 1.31 A |
| Total Power over Ethernet (PoE) budget | 53 W |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 4.82 W |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, EAC, Federal Communications Commission (FCC) |
| Weight & dimensions | |
| Width | 200.3 mm |
| Depth | 200.3 mm |
| Height | 43 mm |
| Packaging content | |
| Quick installation guide | Yes |
| AC adapter included | Yes |

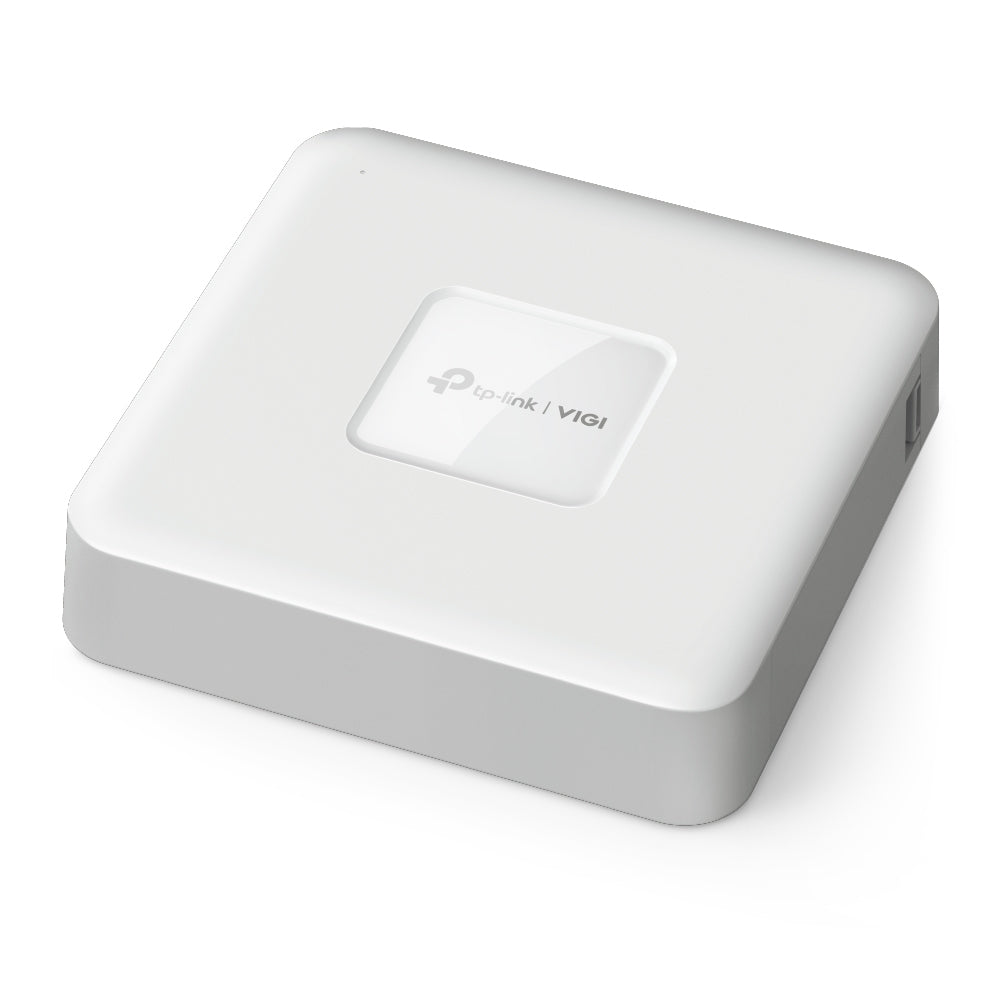

TP-LINK 4CH | PoE | RJ-45 10|100 Mbps | 2x USB 2.0 | 200.3 x 200.3 x 43 mm (VIGI NVR1104H-4P)
