Enhanced Surveillance Coverage – Security Confidence – Detection Accuracy
The TP-LINK VIGI C540-W offers 4MP resolution with a turret camera design ideal for both indoor and outdoor installations.
📷 Image Quality
- 4MP Resolution: Delivers sharp and clear image details at 2560 x 1440 pixels.
- Progressive Scan CMOS Sensor: High-sensitivity sensor optimized for exceptional low-light performance.
- Frame Rate: Smooth 60 FPS at full resolution for fluid video capture.
- Wide Dynamic Range: Advanced WDR technology to handle high contrast scenes and minimize shadows.
🌙 Night Vision
- IR Night Vision: Smart IR adjustments prevent overexposure and maintain clarity at distances.
- Full-Color Night Vision: Supplemental white light ensures full-color monitoring even in very dark conditions.
- Illumination: Built-in IR LEDs and white supplemental lighting enhance night surveillance.
🤖 Intelligence & Detection
- AI Detection: Smart detection for humans and vehicles triggers reliable alerts.
- Smart Features: Supports line crossing, intrusion detection, and obstruction alerts.
- False Alarm Reduction: AI-based filtering minimizes false alarms for efficient monitoring.
📐 Lens & Coverage
- Lens: Fixed 4 mm, F1.6 aperture for bright and sharp images.
- Field of View: Wide horizontal angle suitable for broad coverage.

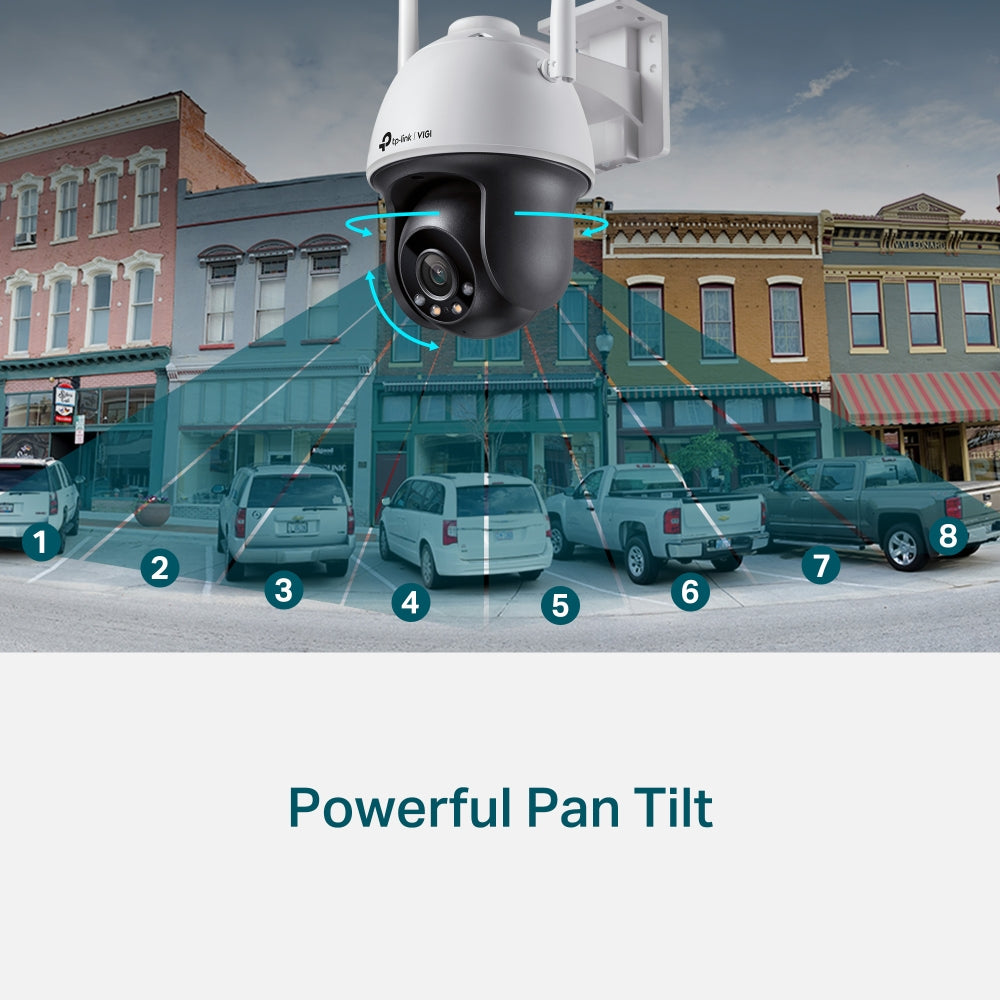

- PTZ: Pan/Tilt available for flexible monitoring and customized patrol routes.
🔌 Connectivity & Power
- Interface: Wireless (Wi-Fi 802.11 b/g/n) providing flexible installation.
- Video Compression: Efficient H.265+ compression balances quality and storage needs.
- Storage: Supports on-board SD card storage up to 256 GB, NVR compatibility and cloud management.
🌦️ Environmental Rating
- IP Rating: Weatherproof for outdoor use (IP66 certified).
- IK Rating: No specific vandal resistance rating provided.
- Operating Temperature: Designed for reliable outdoor performance across varied climates.
📦 What's in the Box
- Camera unit
- Mounting hardware
- Power adapter
- Installation guide
🛡️ Warranty
Backed by a 2-year warranty.
Deliver reliable, intelligent surveillance that empowers your business security with TP-LINK VIGI technology.
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired & Wireless |
| Placement supported | Indoor & outdoor |
| Certification | RCM, BSMI, VCCI, NCC, JRF, KC |
| Design | |
| Form factor | Turret |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66 |
| Housing material | Plastic |
| Camera | |
| Tilt angle range | 0 - 120° |
| Pan range | 0 - 350° |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 79° |
| Lens viewing angle, vertical | 43° |
| Lens viewing angle, diagonal | 93° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Lens system | |
| Number of lenses | 1 |
| Zoom capability | Yes |
| Lens diameter | 4 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Video | |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Bit rate | 256 Kbps - 4 Mbps |
| Noise reduction technology | 3D noise reduction |
| Maximum resolution | 2560 x 1440 pixels |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 4 MP |
| Audio | |
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Number of simultaneous live view channels | 3 channels |
| Live view | Yes |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Maximum memory card size | 256 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired & Wireless |
| Security | |
| Intelligent Video Surveillance (IVS) system features | Human detection |
| Security algorithms | WPA, WPA2-PSK |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Digest authentication | Yes |
| Management features | |
| Reset button | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection |
| Power | |
| Power source type | PoE |
| Power consumption (Power over Ethernet (PoE)) | 14 W |
| DC output voltage | 12 |
| Certificates | |
| Certification | RCM, BSMI, VCCI, NCC, JRF, KC |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 172 mm |
| Height | 198 mm |
| Features | |
| Basic event | Motion Detection, Camera Tampering Detection, Exception |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Technical details | |
| Sustainability certificates | CE, RoHS |
| Other features | |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
