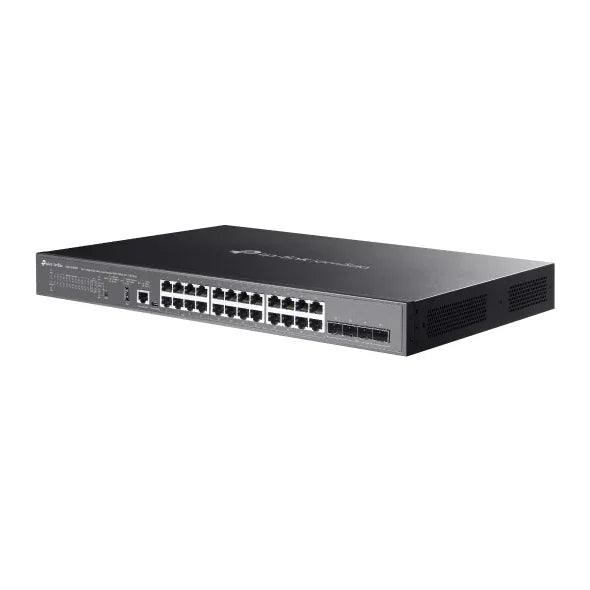

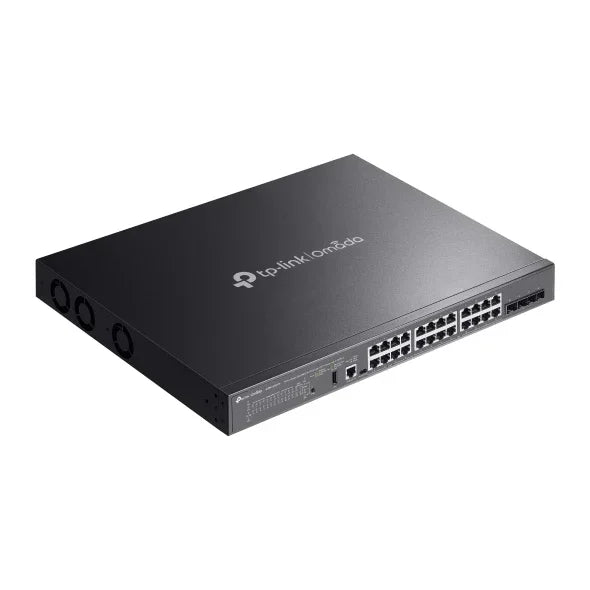

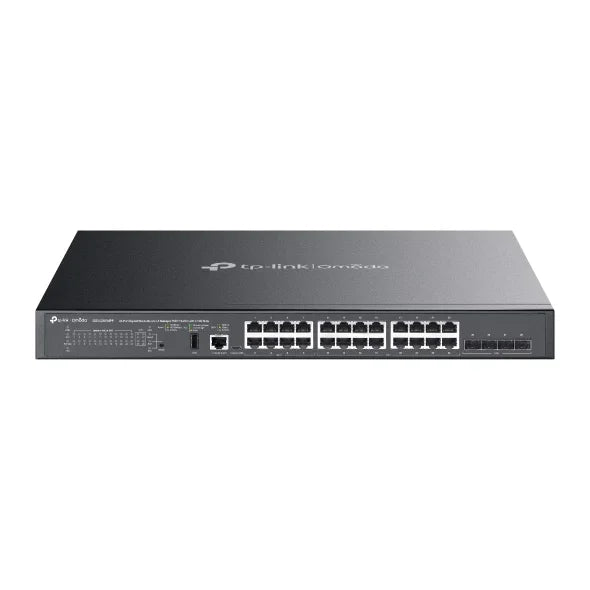

TP-LINK Omada 24-Port Gigabit Stackable Lite L3 Managed PoE++ Switch

The Omada SG5428XMPP delivers enterprise-grade networking as an entry-level L3 managed PoE++ switch optimized for access layer deployment. Featuring advanced L3 routing capabilities, 10 Gbps connectivity, and versatile stacking options, it provides exceptional performance with a robust 500W PoE budget. The switch architecture includes 24 gigabit RJ45 ports (8 PoE++ and 16 PoE+) complemented by four 10 Gbps SFP+ slots. With comprehensive security protocols, physical stacking functionality, and centralized management, the SG5428XMPP represents an ideal networking infrastructure solution for SMEs and ISPs requiring reliability and scalability.

IEEE 802.3af/at/bt-compliant Power over Ethernet

Equipped with 8× IEEE 802.3af/at/bt-compliant and 16× IEEE 802.3af/at-compliant PoE ports, this switch delivers a substantial 500W power budget for 802.3af, 802.3at, and 802.3bt devices. Deploy wireless access points, surveillance cameras, and IP phones efficiently without additional power infrastructure investments. The advanced Perpetual PoE technology maintains continuous power delivery during switch reboots, while fast PoE functionality preserves power configurations across system restarts—ensuring critical network devices remain operational through maintenance cycles and minimizing deployment complexity in enterprise environments.
High-speed Connectivity and Powerful Stacking

The switch architecture incorporates 4× gigabit RJ45 ports alongside 4× 10 Gbps SFP+ slots, delivering exceptional throughput with up to 128 Gbps switching capacity per device. Physical stacking capability supports up to 4 units, significantly enhancing network infrastructure with integrated redundancy mechanisms and performance optimization. This stacking functionality creates a unified, resilient network fabric that maintains operational integrity while maximizing bandwidth utilization across the deployment environment.

Abundant Layer 3 Capabilities

This switch implements a comprehensive suite of Layer 3 routing protocols engineered for network scalability. The routing capabilities encompass Static Routing, RIP, and OSPF for flexible path determination, complemented by DHCP Server and DHCP Relay functionality for streamlined IP address management. These advanced routing features enable sophisticated network segmentation and traffic optimization, providing enterprise-grade packet forwarding intelligence essential for complex multi-subnet environments.

Highly Available

ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.

Enhanced Security Functions

The switch implements a multi-layered security framework to mitigate diverse network threats through comprehensive ACL support for both IPv4 and IPv6 environments, Dynamic ARP Inspection for address spoofing prevention, and robust IEEE 802.1X authentication. This security architecture extends to MAC Authentication Bypass (MAB), granular Port Security mechanisms, and encrypted administrative access via Secure Shell protocols—delivering enterprise-grade protection against unauthorized access and network-based attacks while maintaining operational integrity.

Omada SDN

Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SG5428XMPP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

Features:

• 8× Gigabit 802.3af/at/bt PoE++ ports (Max 90W per port)
• 16× Gigabit 802.3af/at PoE+ ports (Max 30W per port)
• 4× 10 Gbps SFP+ slots
• Up to 500W total PoE budget*
• Fast PoE and Perpetual PoE
• Physical stacking up to 4 units for built-in redundancy and performance
• L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
• Security strategies: ACL, Port Security, DoS Defend, 802.1X
• ERPS supports rapid protection and recovery in a ring topology
• Centralised cloud management via the Omada SDN controller
• Standalone management via web, CLI, SNMP, and RMON
