High PoE Power Budget TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Up to 250m Transmission for Surveillance TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.
Video Quality Guaranteed Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Combo SFP ports quantity | 2 |
| Fast Ethernet (copper) ports quantity | 16 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Performance | |
| Stackable | No |
| Packet buffer memory | 4.1 MB |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Jumbo frames | 10000 |
| MAC address table | 8000 entries |
| Switching capacity | 7.2 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 4.1 MB |
| Security | |
| MAC address filtering | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| LED indicators | LAN, PoE, Status |
| Number of fans | 2 fan(s) |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 18.7 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 192 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 741.15 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging data | |
| User guide | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | LAN (RJ-45) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| User guide | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | LAN (RJ-45) |

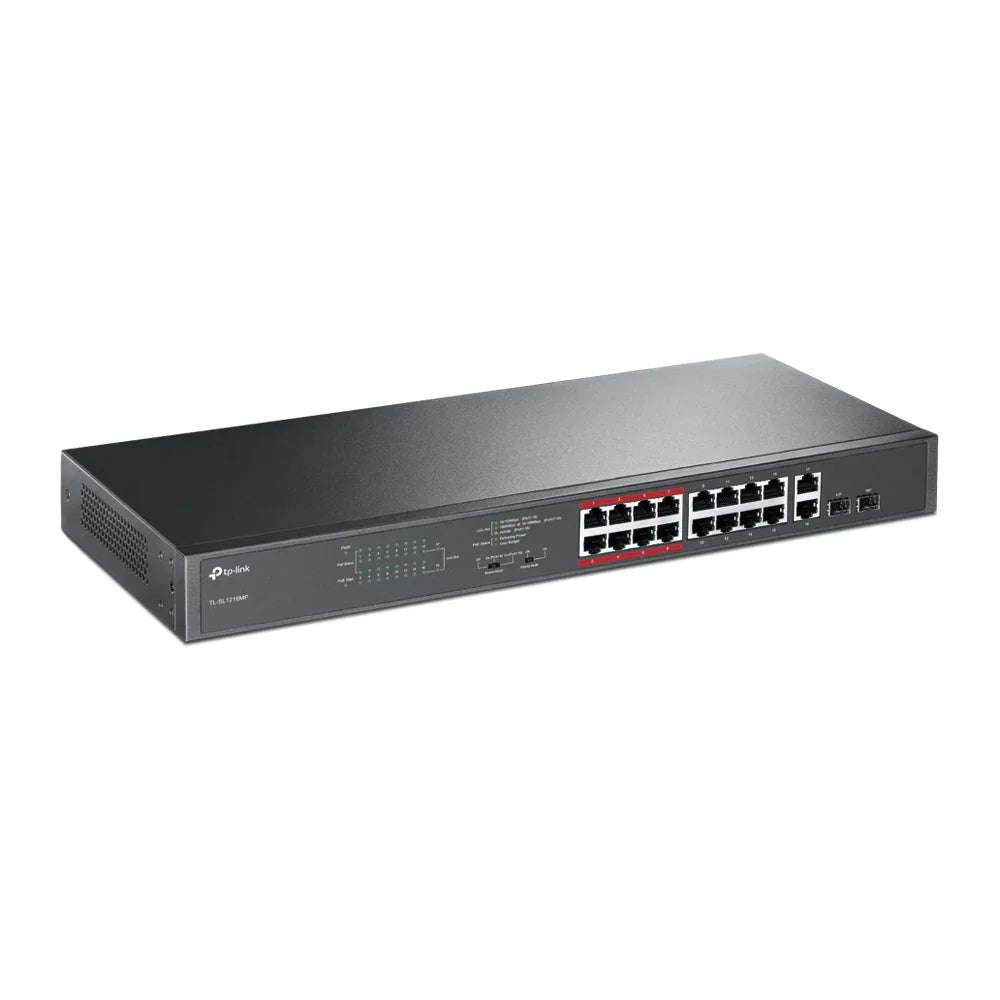

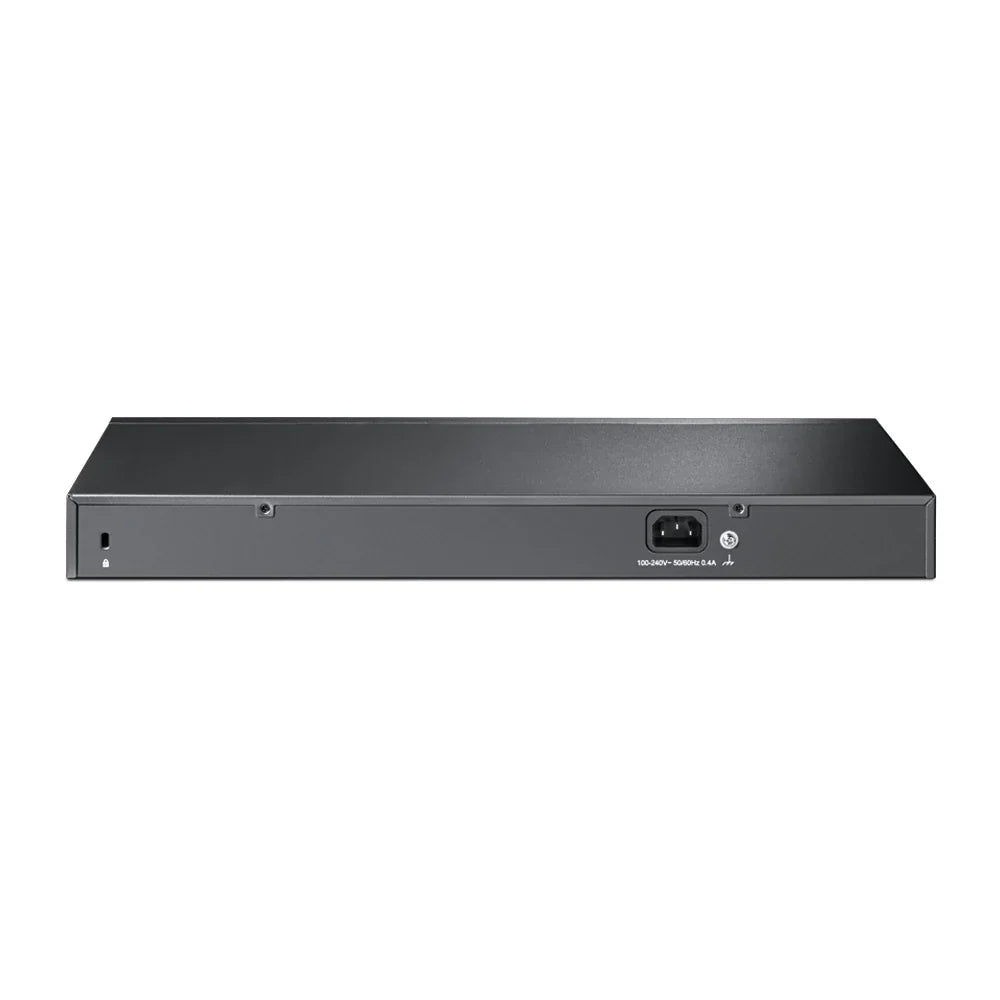

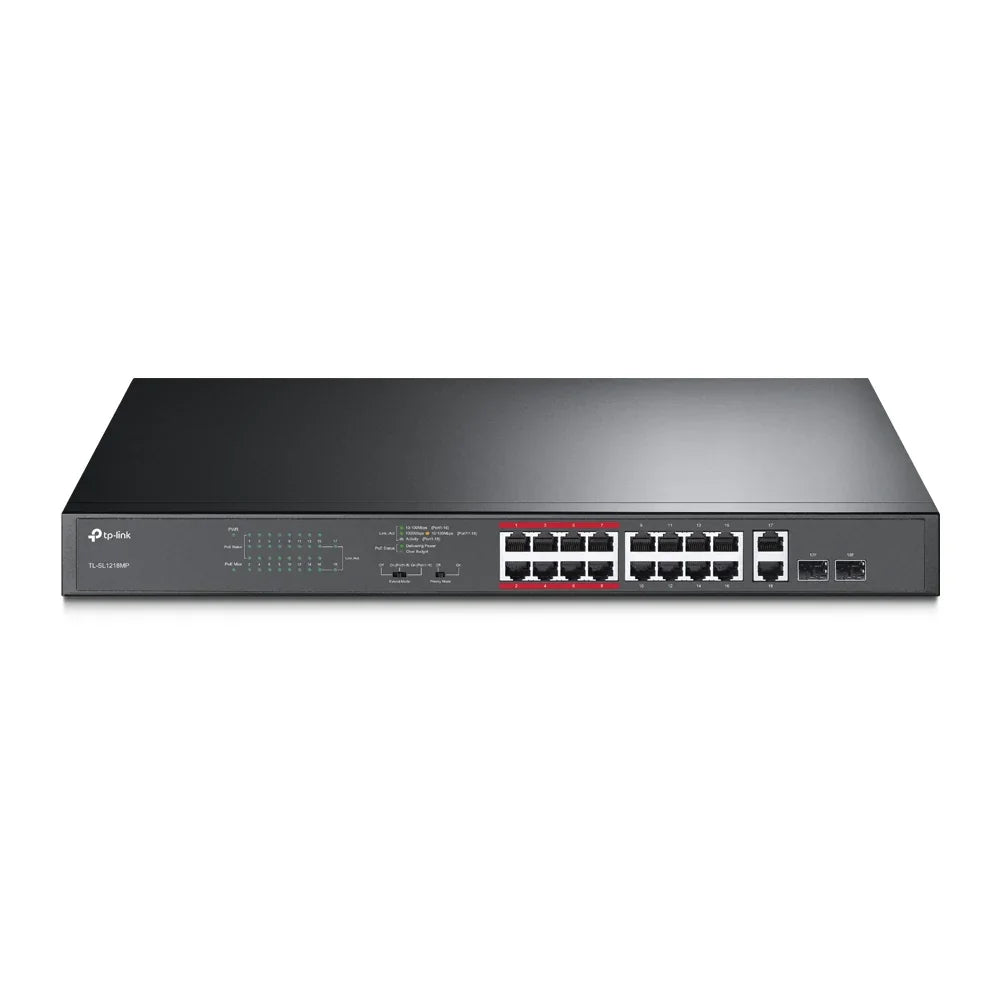

TP-LINK 16 PoE | 10|100Mbps RJ45 | 2 Combo Gigabit SFP Slots | 2 Fans | 100-240V AC | 50|60 Hz | 7.2 Gbps (TL-SL1218MP)
