Reliable and Scalable Performance for SMB Workloads

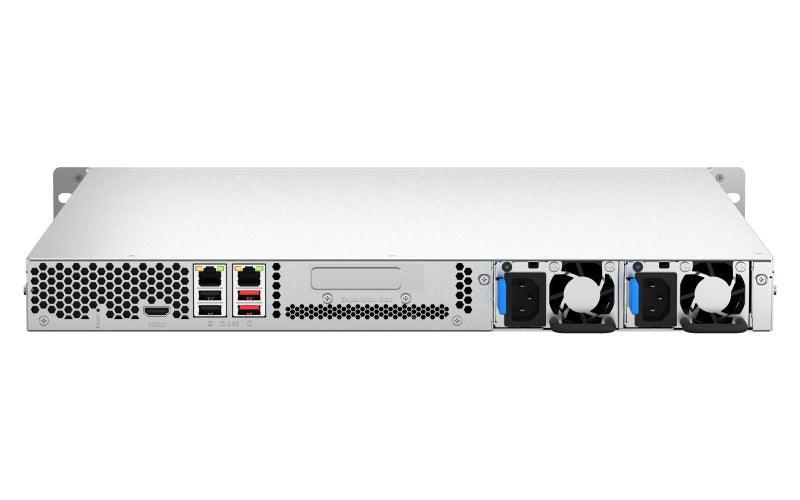

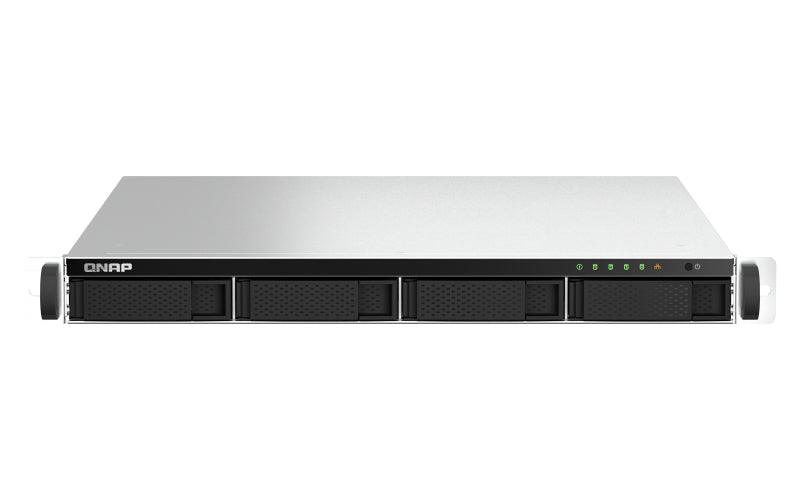

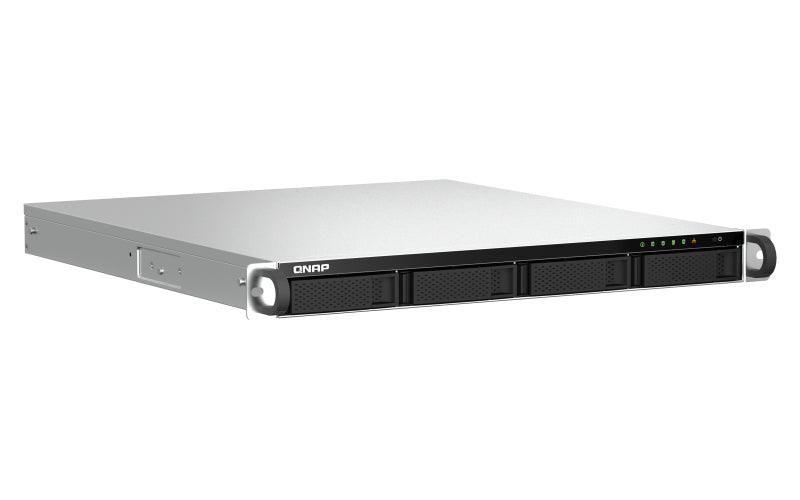

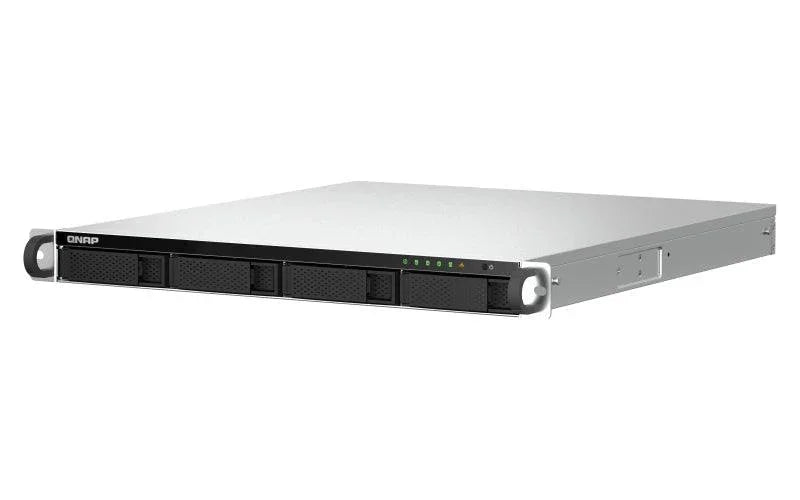

The QNAP TS-464U-RP is a 1U rackmount NAS server designed for small to medium-sized businesses needing efficient storage, high-speed networking, and robust scalability.
🧠 Processor & Performance
- CPU: Intel Celeron N5095 quad-core processor, burst up to 2.9 GHz
- Processor Sockets: 1S (single socket)
- CPU TDP: 25W
💾 Memory
- Memory Capacity: 12 GB DDR4 (8 GB onboard + 4 GB Flash), supports up to 16 GB
- Memory Type: DDR4 onboard memory
- Memory Slots: Onboard memory + expandable slots (exact DIMM slot count not specified)
🗄️ Storage
- Drive Bays: 4 x 3.5" SATA bays, hot-swappable LFF
- Storage Controller: SATA 6 Gb/s support with RAID configurations
- NVMe Support: PCIe Gen 3 x2 slot for QM2 M.2 SSD caching card
- Internal Storage: No drives pre-installed
🔌 Networking & I/O
- Network Ports: 2 x 2.5GbE RJ45 ports with Port Trunking supporting up to 5 Gbps
- Expansion Slots: 1 x PCIe Gen 3 x2 slot supporting various cards (10GbE, QM2, AI Edge TPU)
- Front/Rear I/O: 2 x USB 3.2 Gen 2 (10 Gbps), 2 x USB 2.0, HDMI 1.4b 4K output
⚙️ Management
- Remote Management: QNAP QTS 5 OS web-based management (no dedicated IPMI/iDRAC/iLO)
- Management Software: QTS 5 with extensive backup, virtualization, and security features
🏗️ Form Factor & Power
- Form Factor: Rackmount 1U design
- Power Supply: Dual redundant 250W power supplies
- Cooling: Efficient fan cooling system with redundant fan support
📦 What's in the Box
- QNAP TS-464U-RP server unit
- 2 x Power cords

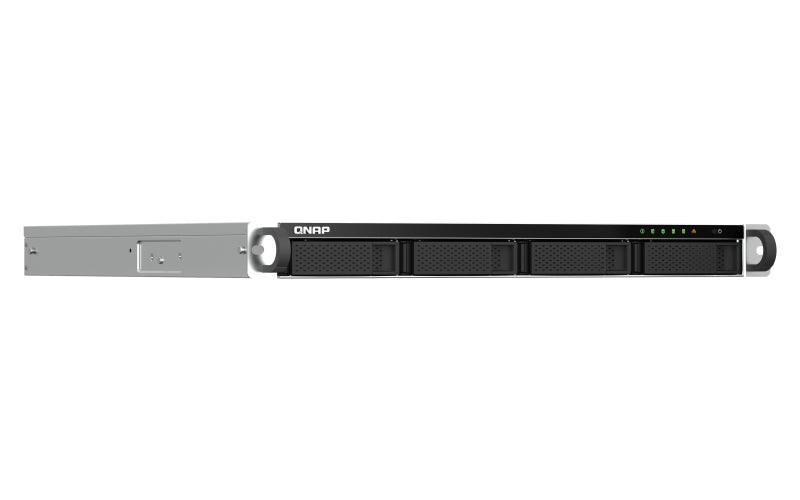

- Rackmount rail kit
- Documentation and quick start guide
🛡️ Warranty
Backed by a 3-year limited warranty with next business day on-site service.
Empower your business with scalable, reliable storage and fast networking – ideal for growing SMB environments.
| Storage | |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 4 |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Disk roaming | Yes |
| RAID support | Yes |
| RAID levels | 0, 6, 1, JBOD, 5, 10 |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, exFAT, HFS+, NTFS, ext3, ext4 |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| RAID rebuild | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| CPU configuration (max) | 1 |
| Processor threads | 4 |
| Processor boost frequency | 2.9 GHz |
| On-board graphics card model | Intel® UHD Graphics |
| Processor model | N5095 |
| Processor cores | 4 |
| Memory | |
| Internal memory | 8 GB |
| Maximum RAM supported | 8 GB |
| Flash memory | 4000 MB |
| Network | |
| Ethernet LAN | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN data rates | 10,1000,2500,100 Mbit/s |
| DHCP client | Yes |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Ports & interfaces | |
| USB port | Yes |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Concurrent connections | 1500 |
| PCI Express x2 (Gen 3.x) slots | 1 |
| Graphics | |
| On-board graphics card model | Intel® UHD Graphics |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Fan diameter | 4 cm |
| LED indicators | HDD, Status, Power, LAN |
| Performance | |
| Built-in FTP server | Yes |
| System log | Yes |
| Share folder | CIFS/SMB |
| S.M.A.R.T. support | Yes |
| Hot spare | Yes |
| Disk scan | Yes |
| Browser supported | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Operating system installed | QNAP Turbo System |
| Operating system version | 5.0.1 |
| Security algorithms | HTTPS, SSH, 256-bit AES, FIPS 140-2 |
| Reset button | Yes |
| On/off switch | Yes |
| Access Control List (ACL) | Yes |
| Windows operating systems supported | Windows 10, Windows 8, Windows 7, Windows 11 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Server operating systems supported | Windows Server 2019, Windows Server 2012 R2, Windows Server 2008 R2, Windows Server 2016, Windows Server 2012 |
| Other operating systems supported | Solaris 10 |
| Snapshot | Yes |
| Software | |
| Operating system installed | QNAP Turbo System |
| Operating system version | 5.0.1 |
| Windows operating systems supported | Windows 10, Windows 8, Windows 7, Windows 11 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Server operating systems supported | Windows Server 2019, Windows Server 2012 R2, Windows Server 2008 R2, Windows Server 2016, Windows Server 2012 |
| Other operating systems supported | Solaris 10 |
| Power | |
| Power consumption (HDD standby) | 37.469 W |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 51.404 W |
| AC input voltage | 100 - 240 V |
| Fan voltage | 12 V |
| Weight & dimensions | |
| Width | 430 mm |
| Depth | 479 mm |
| Height | 43.3 mm |
| Weight | 8.12 kg |
| Package weight | 10.1 kg |
| Technical details | |
| Harmonized System (HS) code | 84714100 |
| Packaging content | |
| Number of screws | 84 |
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 2 |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Trusted Execution Technology | No |
| Intel 64 | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
QNAP TS-464U-RP – Rack 1U / Intel Celeron / 12 GB – SMB Server
