Reliable Performance and Scalable Storage for SMB Workloads

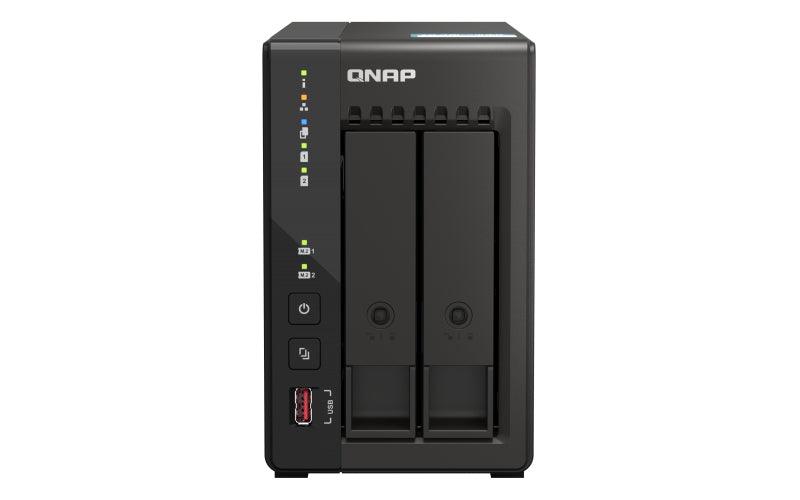

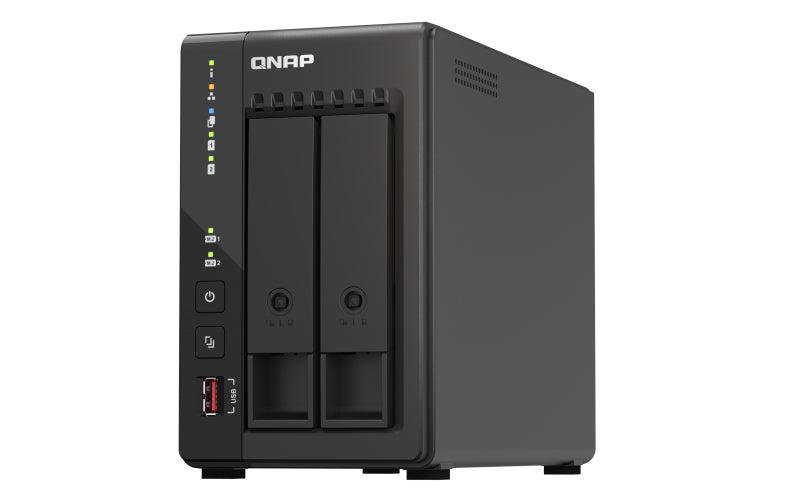

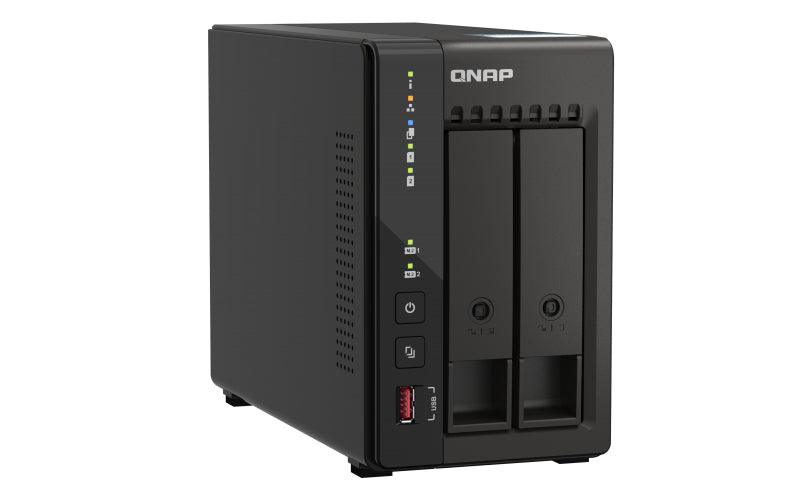

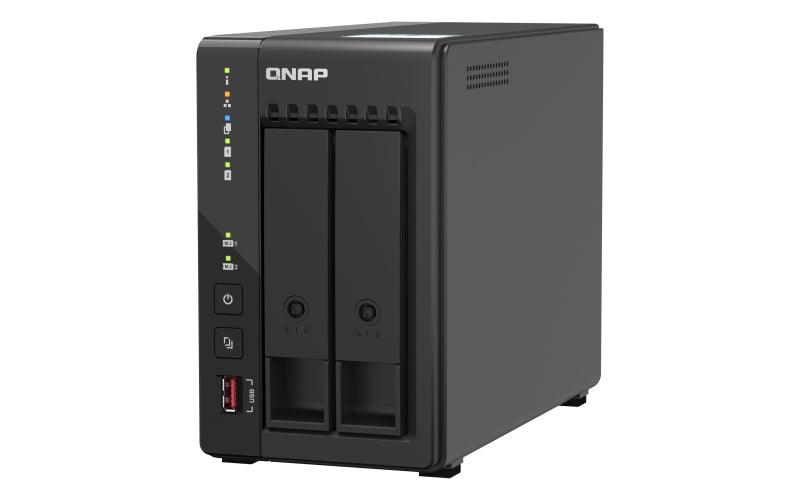

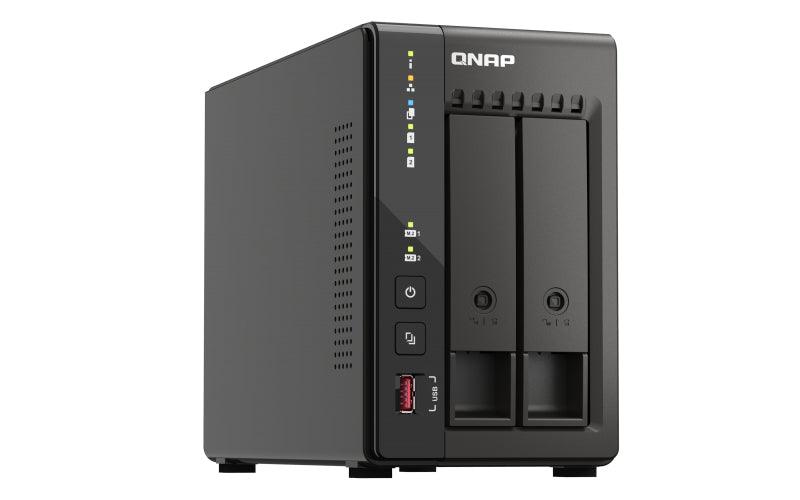

The QNAP TS-253E-8G is a compact tower NAS server designed for small and medium businesses requiring efficient multi-tasking, surveillance, and virtualization capabilities with expandable storage options.
🧠 Processor & Performance
- CPU: Intel® Celeron® J6412 Quad-Core Processor, Burst up to 2.6 GHz, Jasper Lake Generation
- Processor Sockets: 1S
- CPU TDP: 12W
💾 Memory
- Memory Capacity: 8GB Onboard RAM, Non-expandable
- Memory Type: DDR4
- Memory Slots: Onboard (No DIMM slots)
🗄️ Storage
- Drive Bays: 2 x 3.5" SATA LFF Bays, Hot-Swap Supported
- Storage Controller: Software RAID Support (RAID 0/1/JBOD)

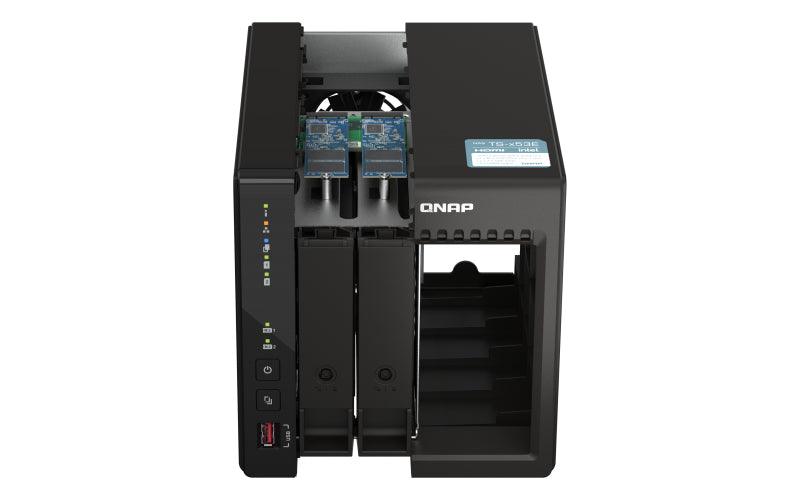

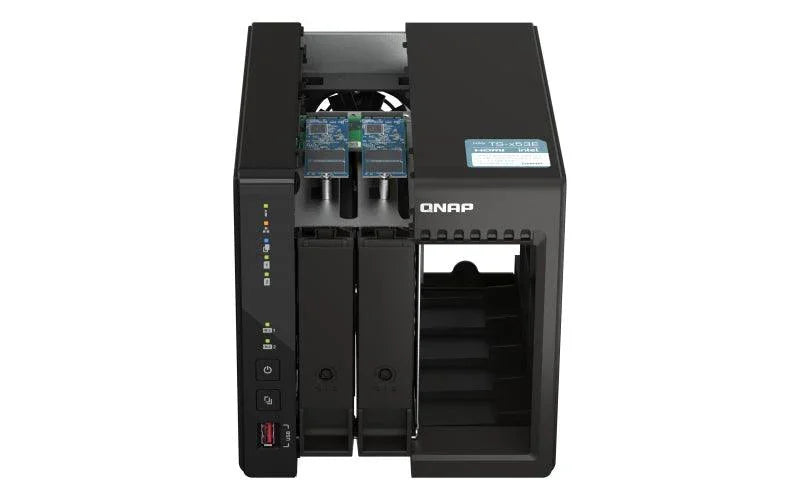

- NVMe Support: M.2 Slots for NVMe SSD Caching
- Internal Storage: None Pre-Installed (Configurable by User)
🔌 Networking & I/O
- Network Ports: Dual 2.5GbE LAN Ports
- Expansion Slots: PCIe Gen 3 Slot for Additional Cards (Optional GPU not supported)

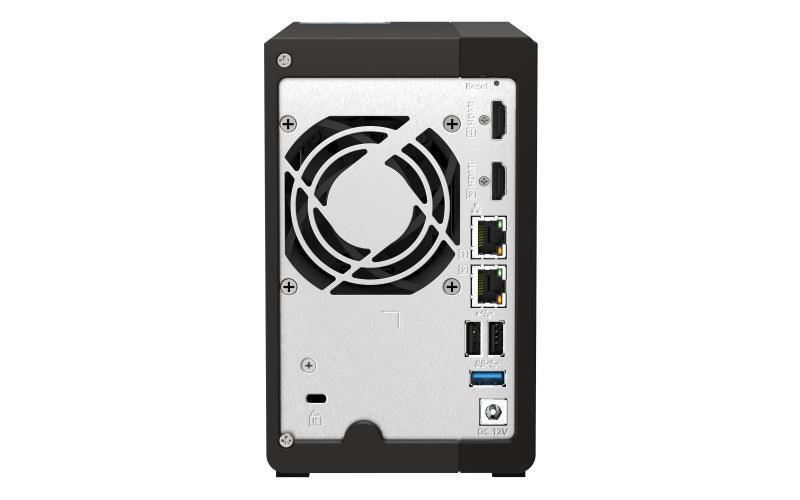

- Front/Rear I/O: 2 x USB 3.2 Gen2, 2 x USB 2.0, Dual HDMI 2.0 Outputs (4K @ 30Hz)
⚙️ Management
- Remote Management: Browser-Based QNAP QTS OS, including QVPN, QuWAN SD-WAN
- Management Software: QNAP QTS with Snapshot, Backup, Surveillance, and Virtualization Support
🏗️ Form Factor & Power
- Form Factor: Tower (TS-253E Series)
- Power Supply: 65W External Power Adapter
- Cooling: Single Internal Fan, Temperature Controlled
📦 What's in the Box
- QNAP TS-253E-8G NAS Server Unit
- Power Cord
- Quick Installation Guide
- LAN Cable
🛡️ Warranty
Backed by a 3-year limited warranty with next business day (NBD) on-site support.
Power your SMB workloads with scalable storage, robust backup, and enterprise-class features delivered by the QNAP TS-253E-8G.
| Storage | |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 2 |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Disk roaming | Yes |
| RAID support | Yes |
| RAID levels | 0, 1, JBOD |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Supported storage drive interfaces | M.2, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Number of M.2 (M & B) slots | 2 |
| RAID rebuild | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor threads | 4 |
| Processor cache | 1.5 MB |
| On-board graphics card model | Intel® UHD Graphics |
| Processor model | J6412 |
| Processor frequency | 2.6 GHz |
| Processor cores | 4 |
| Memory | |
| Internal memory | 8 GB |
| Maximum RAM supported | 8 GB |
| Flash memory | 4 MB |
| Network | |
| Ethernet LAN | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| DHCP client | Yes |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Ports & interfaces | |
| USB port | Yes |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Concurrent connections | 1500 |
| Graphics | |
| On-board graphics card model | Intel® UHD Graphics |
| Design | |
| Chassis type | Tower |
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Fan diameter | 7 cm |
| Drive bay locking | Yes |
| LED indicators | LAN, Power, Status |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Performance | |
| Built-in FTP server | Yes |
| System log | Yes |
| Share folder access right management | Yes |
| S.M.A.R.T. support | Yes |
| Password authentication | Yes |
| Hot spare | Yes |
| Disk scan | Yes |
| Browser supported | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Operating system installed | QNAP QTS |
| Operating system version | 5.0.1 |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SSH |
| Reset button | Yes |
| On/off switch | Yes |
| Management protocols | SNMP V2/V3 |
| Access Control List (ACL) | Yes |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Snapshot | Yes |
| USB copy function | Yes |
| Software | |
| Operating system installed | QNAP QTS |
| Operating system version | 5.0.1 |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Power | |
| Power consumption (max) | 18.09 W |
| Power consumption (HDD standby) | 10.56 W |
| Power supply location | External |
| Power consumption (sleep) | 10.56 W |
| AC input voltage | 100 - 240 V |
| Fan voltage | 12 V |
| Weight & dimensions | |
| Width | 102 mm |
| Depth | 225 mm |
| Height | 168.5 mm |
| Weight | 1.28 kg |
| Package height | 1280 mm |
| Package weight | 2.32 kg |
| Packaging content | |
| Number of screws | 16 |
| External power adapter | Yes |
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 1 |
| Drive tray key included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
