Reliable Multimedia and Storage Performance for Entry-Level Workloads

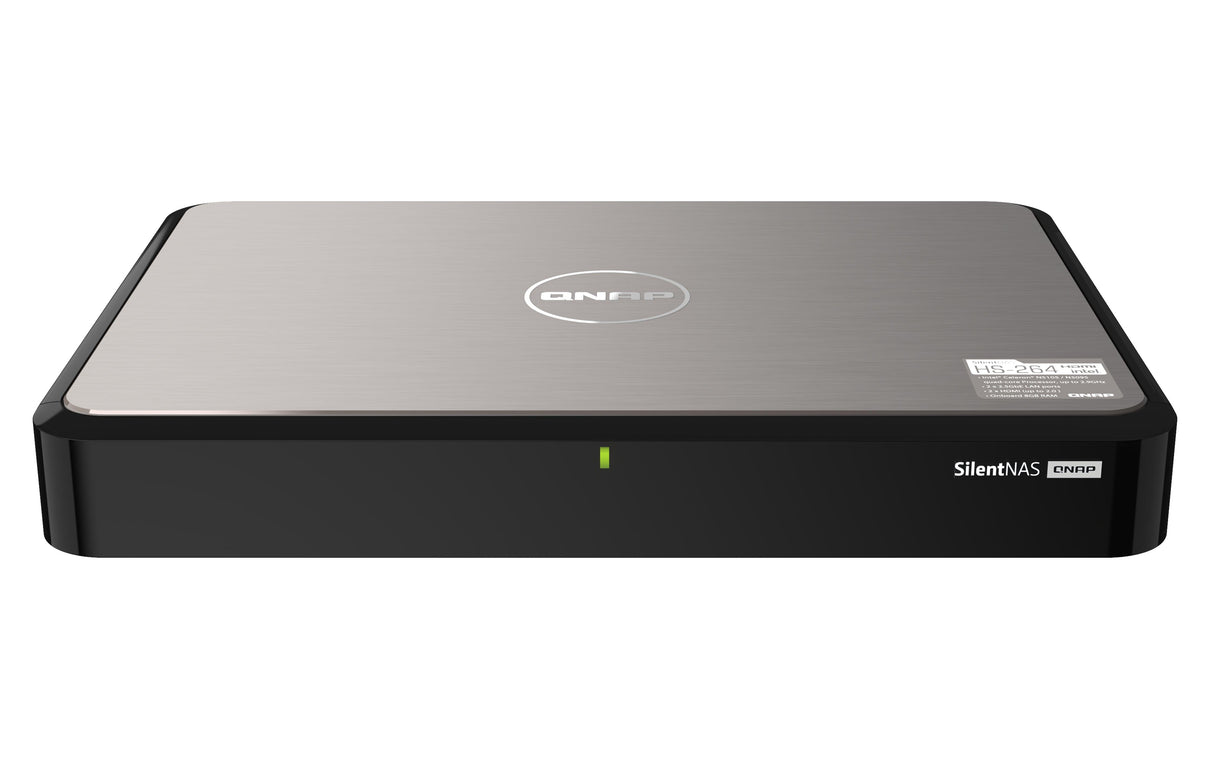

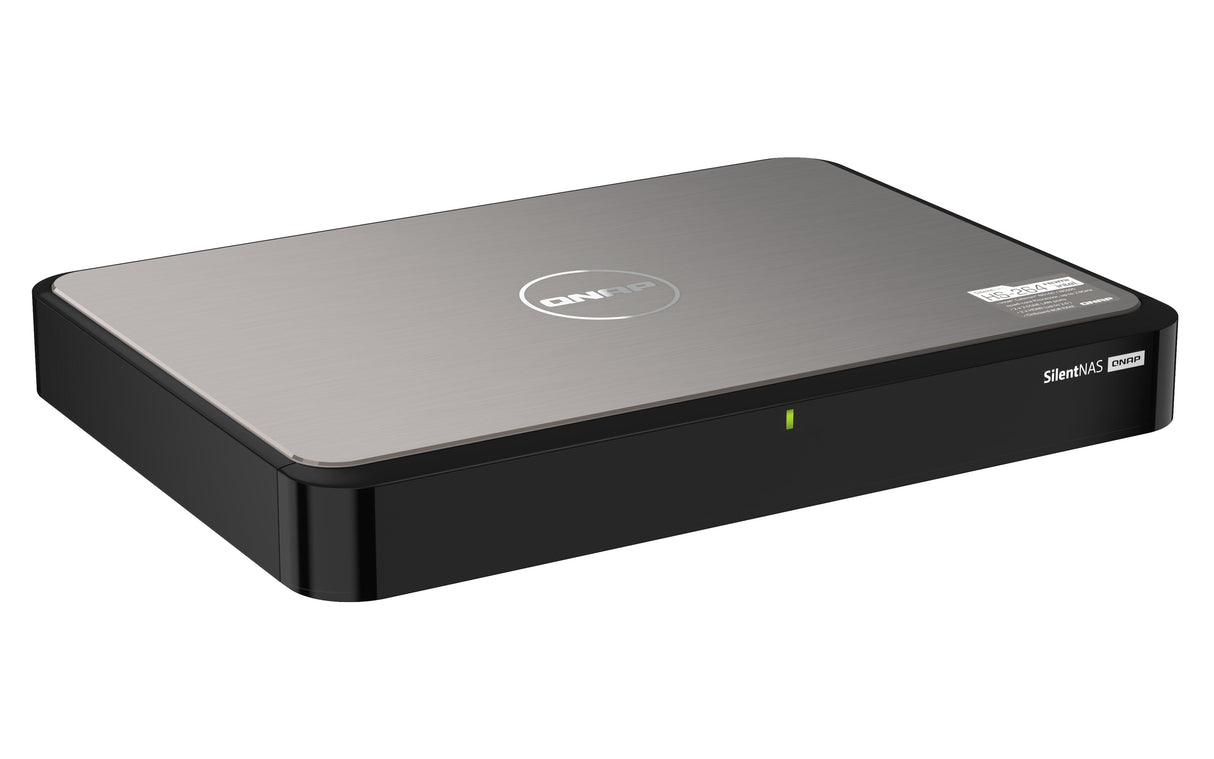

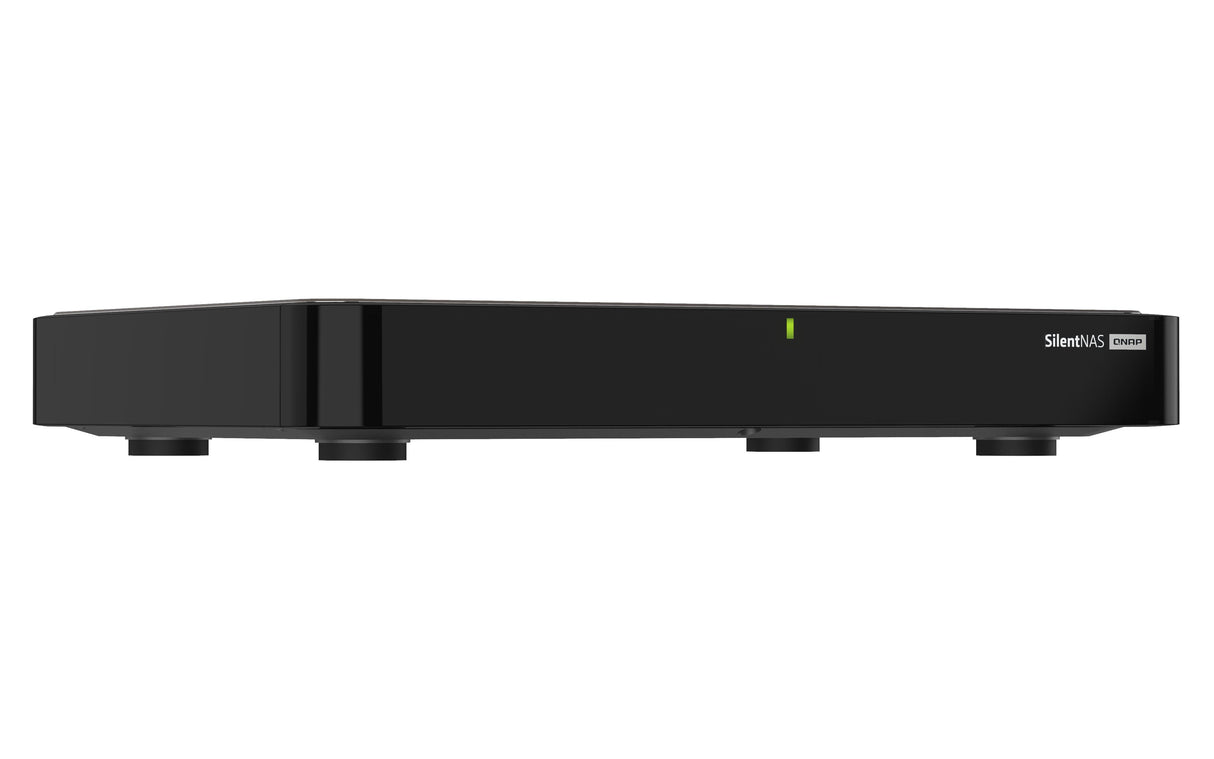

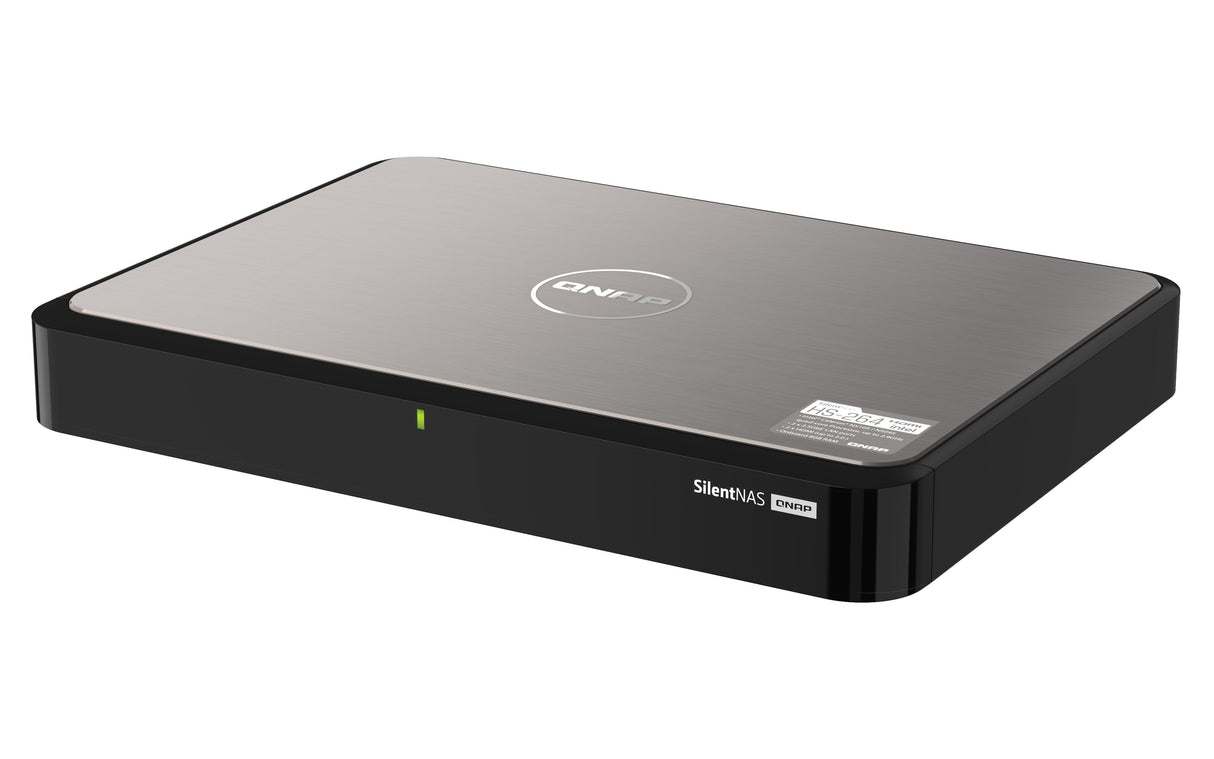

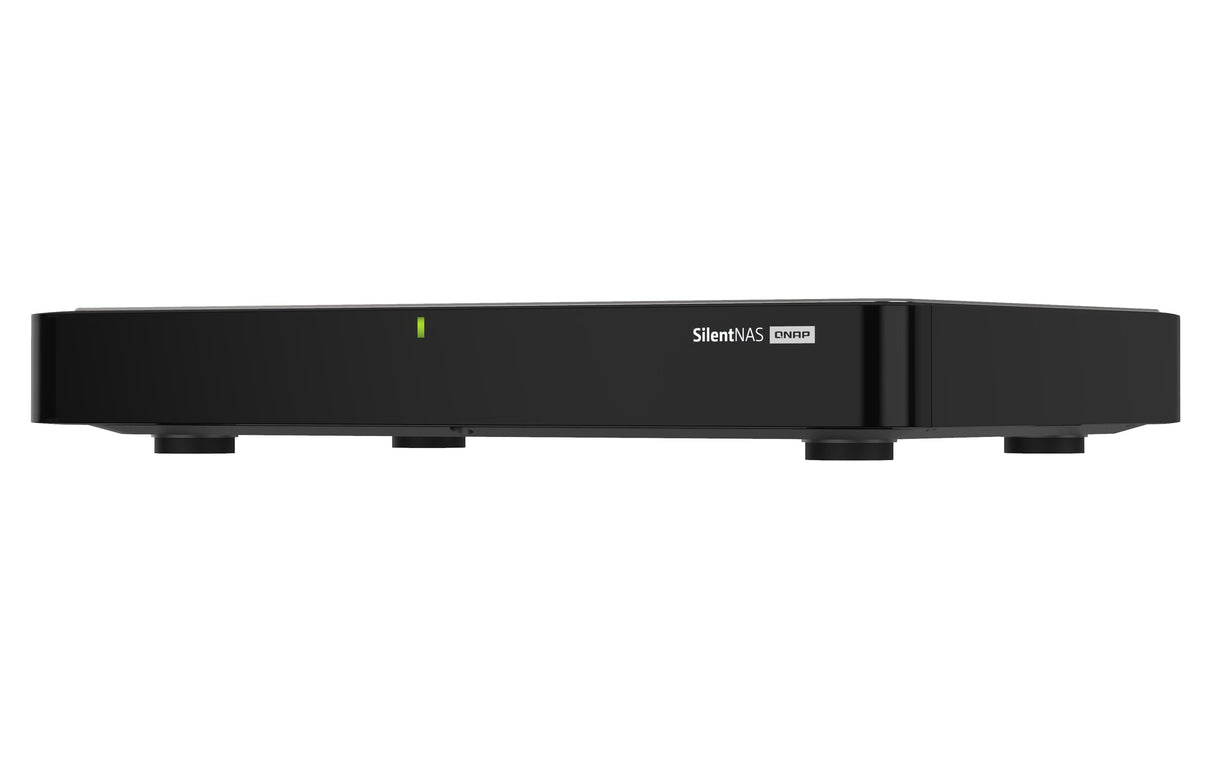

The QNAP HS-264 is a compact tower NAS designed for entry-level home and small office multimedia storage and streaming workloads, offering scalability and ease of use.
🧠 Processor & Performance
- CPU: Intel Celeron N5105 quad-core, 2.0 GHz base clock, Jasper Lake generation
- Processor Sockets: 1S single-socket design
- CPU TDP: 10 W (approximate typical for N5105)
💾 Memory
- Memory Capacity: 8 GB DDR4 installed (up to 8 GB supported)
- Memory Type: DDR4 SO-DIMM
- Memory Slots: 1 slot, dual-channel capable with single module
🗄️ Storage
- Drive Bays: 2 bays supporting 3.5" or 2.5" SATA drives, no hot-swap
- Storage Controller: Integrated SATA 6Gb/s controller with software RAID support
- NVMe Support: Not supported
- Internal Storage: No pre-installed drives
🔌 Networking & I/O
- Network Ports: Dual 2.5GbE Ethernet ports, supporting port trunking up to 5 Gbps
- Expansion Slots: None; no PCIe slots or discrete GPU support

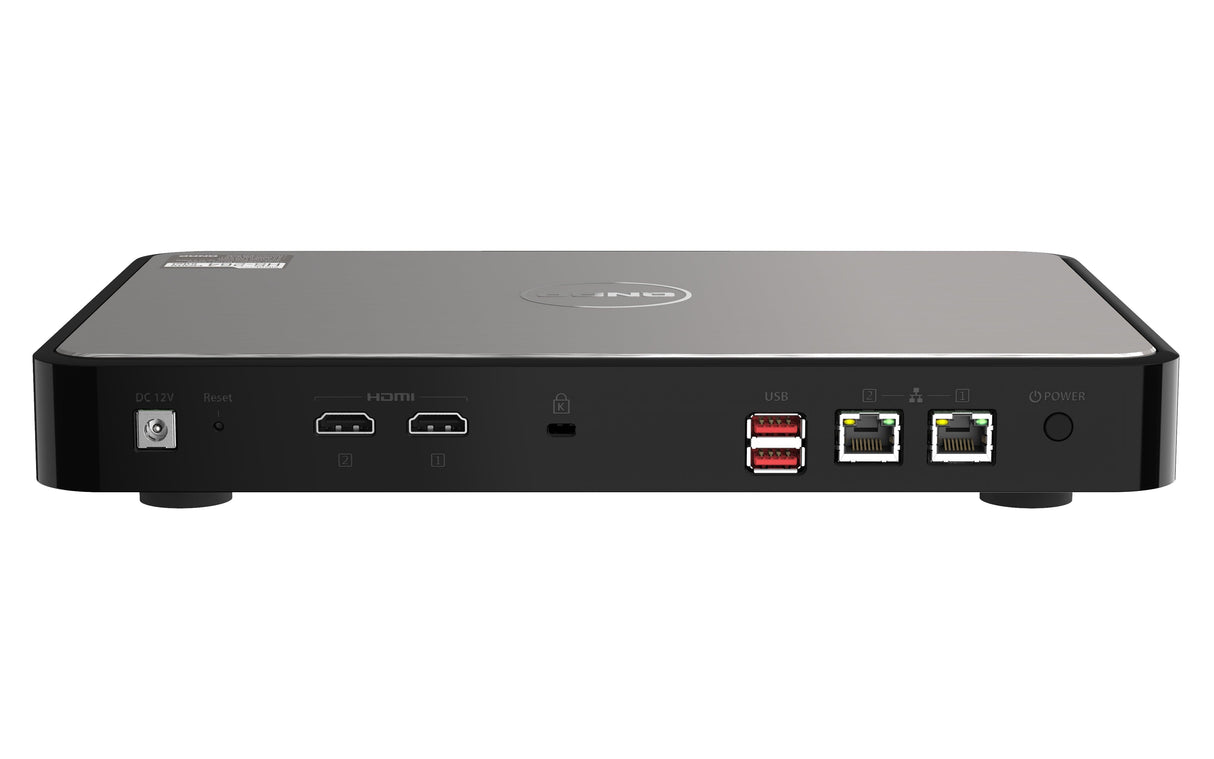

- Front/Rear I/O: 2x USB 3.2 Gen2 Type-A, Dual HDMI 2.0 (4K @ 60Hz) outputs
⚙️ Management
- Remote Management: None dedicated; managed via QNAP QTS NAS OS and myQNAPcloud
- Management Software: QTS NAS operating system with multimedia and snapshot management tools
🏗️ Form Factor & Power
- Form Factor: Compact Tower (micro-NAS form factor)
- Power Supply: 60 W external power adapter, single PSU (not redundant)
- Cooling: Fanless, passive cooling design for silent operation
📦 What's in the Box
- QNAP HS-264 unit
- Power adapter and power cord
- Quick installation guide and warranty card
🛡️ Warranty
Backed by a 2-year limited warranty with optional extended coverage.
Power your multimedia and storage workloads with the QNAP HS-264 – a reliable, silent, and scalable NAS solution.
| Storage | |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 2 |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Disk roaming | Yes |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| CPU configuration (max) | 1 |
| Processor threads | 4 |
| Processor cache | 4 MB |
| Processor boost frequency | 2.9 GHz |
| On-board graphics card model | Intel® UHD Graphics |
| Processor model | N5105 |
| Processor frequency | 2 GHz |
| Processor cores | 4 |
| Number of processors supported | 1 |
| Memory | |
| Internal memory | 8 GB |
| Maximum RAM supported | 8 GB |
| Flash memory | 4000 MB |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| Wake-on-LAN ready | Yes |
| Ports & interfaces | |
| USB port | Yes |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Graphics | |
| On-board graphics card model | Intel® UHD Graphics |
| Design | |
| Chassis type | Tower |
| Product colour | Black |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Performance | |
| Built-in FTP server | Yes |
| S.M.A.R.T. support | Yes |
| Browser supported | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| Type | NAS |
| Device class | Small & Medium Business |
| Buzzer | Yes |
| Number of users | 4096 user(s) |
| Operating system installed | QNAP QTS |
| Operating system version | 5.0.0 |
| Reset button | Yes |
| On/off switch | Yes |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Snapshot | Yes |
| Software | |
| Operating system installed | QNAP QTS |
| Operating system version | 5.0.0 |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Power | |
| Power supply location | External |
| Power supply unit (PSU) capacity | 60 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 24.995 W |
| Power consumption (sleep) | 11.315 W |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Width | 302 mm |
| Depth | 220 mm |
| Height | 41.3 mm |
| Weight | 1.56 kg |
| Package weight | 2.62 kg |
| Technical details | |
| Harmonized System (HS) code | 84714100 |
| Packaging content | |
| External power adapter | Yes |
| Cables included | AC, LAN (RJ-45) |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Trusted Execution Technology | No |
| Intel 64 | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
QNAP HS-264 – Tower / Intel Celeron / 8 GB – Entry-Level Server
QNAP | SKU:
HS-264-8G
$1,40283
RRP
$1,99900
Unit price
/
Unavailable
$1,54311
Incl. GST
