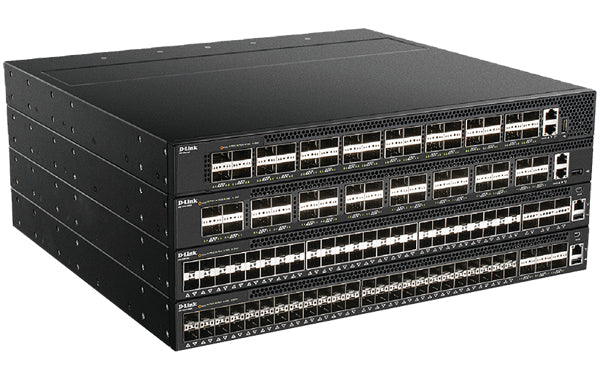

Data Centre Switches
The D-Link 5000 Series Data Centre Switches are a series of high-performance switches that feature high port density, routing, and ultra-low latency, designed to be deployed as Top-of-Rack (ToR) or leaf-spine switches in data center applications. Combined with ONIE support and increased cost-effciency, the 5000 Series form a flexible long-term solution for managing and expanding data centre infrastructures in a Software-defined Networking (SDN) environment.
Open Networking
The 5000 Series switches support open networking, providing IT professionals with innovative third-party operating systems and software options. As bare metal switches, the 5000 Series switches ship pre-loaded with Open Network Install Environment (ONIE). ONIE is an open source install environment that allows administrators to install the network operating system(s) of choice as part of the data centre provisioning process. In addition, the 5000 Series also offers network administrators the option to purchase a licence to activate the D-Link OS on the switches.
Flexibility and Versatility
The 5000 Series switches are available in a variety of high-capacity interface combinations, including SFP+, QSFP+, SFP28 and QSFP28 ports to accommodate the scale and requirements of data centres. Open Network Install Environment (ONIE) support means the switches can be easily integrated in existing network ecosystems using a variety of supported third-party Network Operating Systems (NOSs) for optimal compatibility.
High Availability and Reliability

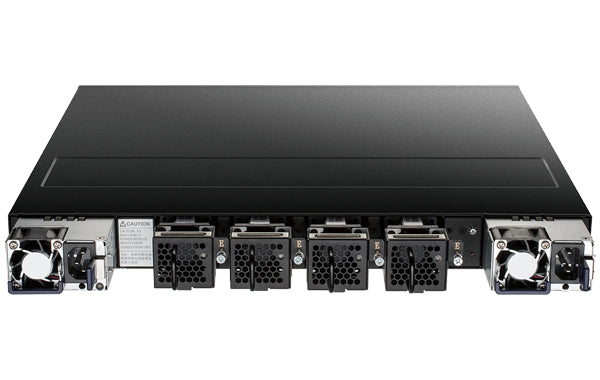

The 5000 Series switches feature a modular fan and power supply design for a high availability architecture. The hot-swappable design means that fans and power supplies can be replaced without affecting switch operation. Load sharing enables both power supplies to evenly distribute load to increase reliability and lifetime. Meanwhile, 1+1 redundancy minimizes downtime in case of a single power supply failure.
Complete Layer 2/3 Functionality
The 5000 Series switches feature a complete L2 and L3 feature set to meet the demands of data centre applications. Layer 2 features include L2 switching, L2 multicast, advanced Quality of Service (QoS), and robust security features. Meanwhile, the 5000 Series offers advanced L3 routing for enterprise integration, including OSPF, BGP, Graceful Restart, Bidirectional Forwarding Detection (BFD), and L3 multicast.
Data Centre and Virtualisation Features
Data Centre Bridging (DCB) is an essential set of enhancements to Ethernet for networking in data center environments. The D-Link OS for the 5000 Series switches supports several core components of Data Centre Bridging (DCB) such as IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, VXLAN and more.
The D-Link 5000 Series Data Centre Switches are a series of high-performance switches that feature high port density, routing, and ultra-low latency, designed to be deployed as Top-of-Rack (ToR) or leaf-spine switches in data center applications. Combined with ONIE support and increased cost-effciency, the 5000 Series form a flexible long-term solution for managing and expanding data centre infrastructures in a Software-defined Networking (SDN) environment.
Open Networking
The 5000 Series switches support open networking, providing IT professionals with innovative third-party operating systems and software options. As bare metal switches, the 5000 Series switches ship pre-loaded with Open Network Install Environment (ONIE). ONIE is an open source install environment that allows administrators to install the network operating system(s) of choice as part of the data centre provisioning process. In addition, the 5000 Series also offers network administrators the option to purchase a licence to activate the D-Link OS on the switches.
Flexibility and Versatility
The 5000 Series switches are available in a variety of high-capacity interface combinations, including SFP+, QSFP+, SFP28 and QSFP28 ports to accommodate the scale and requirements of data centres. Open Network Install Environment (ONIE) support means the switches can be easily integrated in existing network ecosystems using a variety of supported third-party Network Operating Systems (NOSs) for optimal compatibility.
High Availability and Reliability
The 5000 Series switches feature a modular fan and power supply design for a high availability architecture. The hot-swappable design means that fans and power supplies can be replaced without affecting switch operation. Load sharing enables both power supplies to evenly distribute load to increase reliability and lifetime. Meanwhile, 1+1 redundancy minimizes downtime in case of a single power supply failure.
Complete Layer 2/3 Functionality
The 5000 Series switches feature a complete L2 and L3 feature set to meet the demands of data centre applications. Layer 2 features include L2 switching, L2 multicast, advanced Quality of Service (QoS), and robust security features. Meanwhile, the 5000 Series offers advanced L3 routing for enterprise integration, including OSPF, BGP, Graceful Restart, Bidirectional Forwarding Detection (BFD), and L3 multicast.
Data Centre and Virtualisation Features
Data Centre Bridging (DCB) is an essential set of enhancements to Ethernet for networking in data center environments. The D-Link OS for the 5000 Series switches supports several core components of Data Centre Bridging (DCB) such as IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, VXLAN and more.
| Management features | |
|---|---|
| Multicast support | Yes |
| Traffic shaping | Yes |
| Traffic classification | Yes |
| Switch layer | L3+ |
| Switch type | Managed |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| User operation log | Yes |
| Network | |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Number of VLANs | 4093 |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Virtual LAN features | Port-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN |
| Virtual LAN features | |
| Number of VLANs | 4093 |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN |
| Data transmission | |
| Number of VLANs | 4093 |
| Multicast Listener Discovery (MLD) snooping | v1/v2 |
| Jumbo frames | 9000 |
| MAC address table | 288000 entries |
| Switching capacity | 1440 Gbit/s |
| Number of IP interfaces | 128 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 1071 Mpps |
| Performance | |
| Stackable | No |
| Noise level | 74 dB |
| Mean time between failures (MTBF) | 205000 h |
| Ports & interfaces | |
| Installed QSFP+ modules quantity | 6 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Console port | Micro-USB |
| USB 2.0 ports quantity | 1 |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, Port-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| Queue scheduling algorithms | Deficit weighted round robin (DWRR), SP, Weighted random early detection (WRED) |
| IGMP proxy | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | v1/v2 |
| Protocols | |
| Management protocols | SNMP |
| Routing protocols | BGP4, BGP4+, OSPFv2, OSPFv3, RIP |
| Design | |
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| Form factor | 1U |
| LED indicators | Yes |
| Certification | cULus CCC BSMI CB |
| Number of fans | 4 fan(s) |
| Redundant fans support | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE |
| Power | |
| Power consumption (max) | 295 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 1006.58 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 406 mm |
| Height | 44 mm |
| Weight | 9 kg |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE |

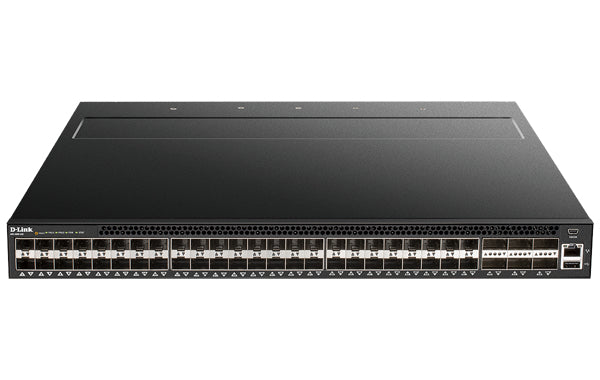

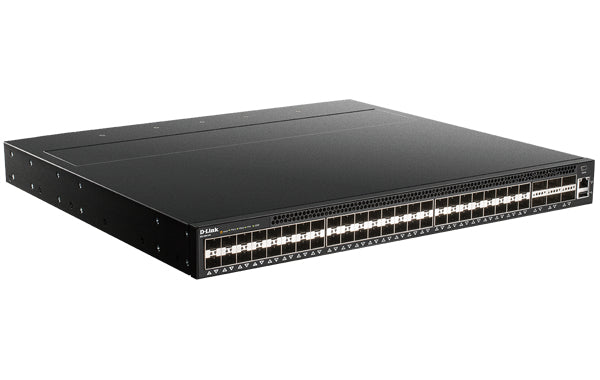

D-LINK DXS-5000-54S Network Switch
D-LINK | SKU:
DXS-5000-54S
$17,23869
RRP
$18,59086
Unit price
/
Unavailable
$18,96256
Incl. GST
