The DGS-3630-52TC Layer 3 Stackable Managed Switch is designed for Small Medium Businesses (SMBs), Small Medium Enterprises (SMEs), larger Enterprises, and ISPs. It features 44 x 10/100/1000 ports, 4 x 10/100/1000 or SFP combo ports, and 4 x 10GbE SFP+ ports. This switch supports core SMB and SME functionality, such as L2 switching, entry-level routing, L2 multicast, advanced QoS, OAM, and robust security features. With a simple upgrade it can also support full L3 routing for Enterprise integration, including OSPF, BGP, VRF-Lite and L3 multicast.
| Management features | |
|---|---|
| Multicast support | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 44 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 4 |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45/Mini-USB |
| Gigabit Ethernet (copper) ports quantity | 44 |
| USB 2.0 ports quantity | 1 |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1Qbb,IEEE 802.1ag,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Full duplex | Yes |
| Number of VLANs | 4094 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Stacked VLAN,Private VLAN,Tagged VLAN,Port-based VLAN |
| Virtual LAN features | |
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Virtual LAN features | Stacked VLAN,Private VLAN,Tagged VLAN,Port-based VLAN |
| Data transmission | |
| Number of VLANs | 4094 |
| Jumbo frames | 12000 |
| MAC address table | 68000 entries |
| Switching capacity | 176 Gbit/s |
| Throughput | 130.95 Mpps |
| Number of queues | 8 |
| Number of IP interfaces | 256 |
| Jumbo frames support | Yes |
| Packet buffer memory | 4 MB |
| Performance | |
| Stackable | Yes |
| Packet buffer memory | 4 MB |
| Virtual stacking (units) | 32 |
| Noise level | 53.9 dB |
| Mean time between failures (MTBF) | 263936 h |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, Port-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS,SSH,SSH-2,SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server,DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP, NTPv3/v4, Telnet |
| Supported network protocols | IPv4/v6 |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| Form factor | 1U |
| LED indicators | Yes |
| Safety | cUL, CB, CE, CCC, BSM |
| Electromagnetic compatibility | CE, FCC Class A, C-Tick, VCCI, BSMI, CCC |
| Number of fans | 2 fan(s) |
| Power | |
| Power consumption (max) | 62 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 212 BTU/h |
| Weight & dimensions | |
| Width | 441 mm |
| Depth | 260 mm |
| Height | 44 mm |
| Weight | 4.04 kg |

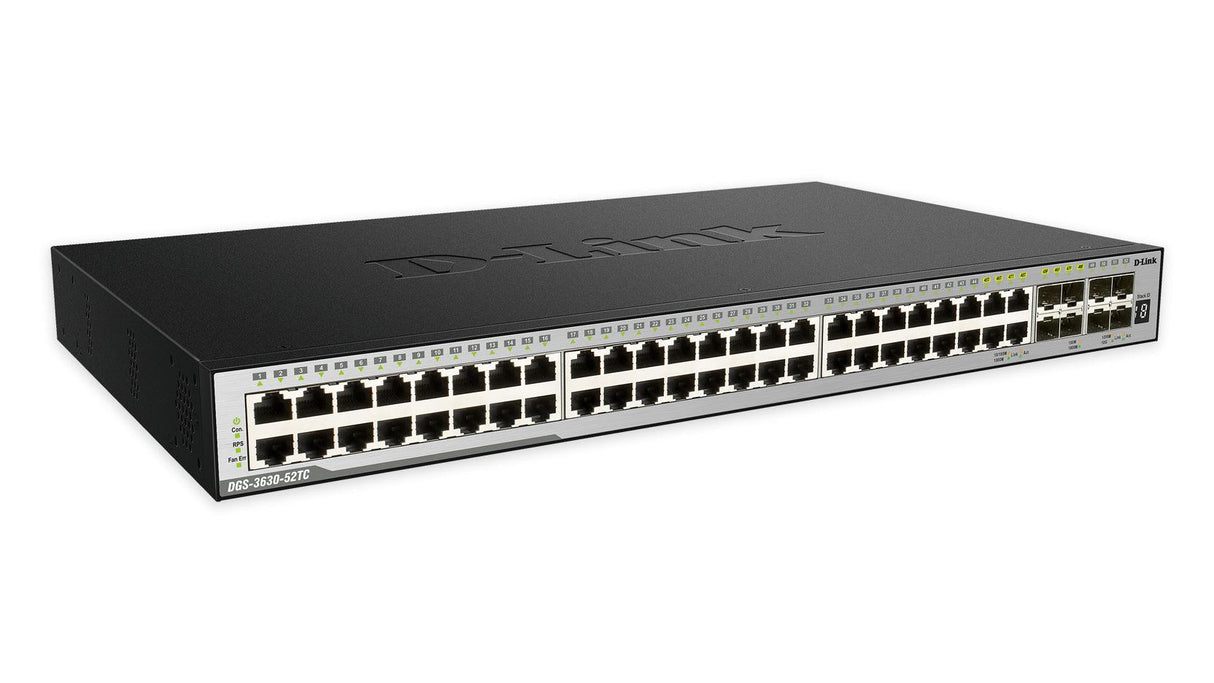

D-LINK 52-Port Layer 3 Stackable Managed Gigabit Switch | w | 4 10GbE Ports (DGS-3630-52TC)
D-LINK | SKU:
DGS-3630-52TC
$7,12744
RRP
$7,68177
Unit price
/
Unavailable
$7,84018
Incl. GST
