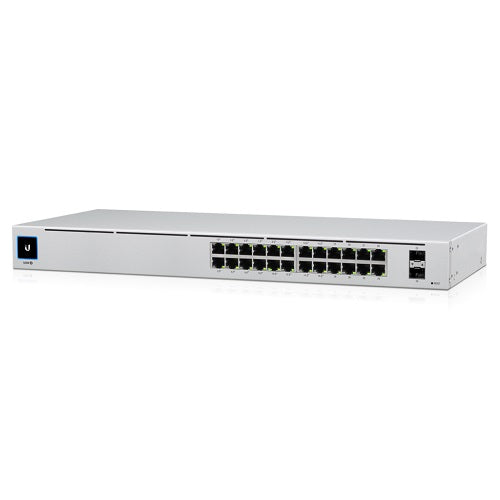

Reliable Managed Layer 2 PoE+ Switch for SMBs and Enterprise Networks
The Ubiquiti Networks UniFi USW-24-POE-AU is a versatile managed Layer 2 Gigabit network switch designed for small to medium-sized businesses and enterprise environments seeking scalable and easy-to-manage connectivity with integrated PoE+ capabilities.
🔌 Ports & Connectivity
- Port Count & Type: 24x Gigabit RJ45 Ethernet ports
- Uplink Ports: 2x Gigabit SFP fiber uplink ports
- PoE Support: 16x Auto-sensing 802.3at PoE+ ports with efficient power delivery
- Stacking: Not supported
⚙️ Management & Intelligence
- Management Type: Managed Layer 2 switch
- Management Interface: UniFi Network Controller with UniFi mobile app support and GUI-based configuration
- VLAN Support: Supports advanced Layer 2 switching protocols including 802.1Q VLANs
- Routing: Layer 2 only – no Layer 3 routing functionality
🛡️ Security & QoS
- Access Control: Supports ACLs and network access policies
- QoS: Traffic prioritization to enhance VoIP and video performance
- Storm Control: Broadcast and multicast storm protection features included
⚡ Performance
- Switching Capacity: High-performance Gigabit switching fabric optimized for Layer 2 traffic
- Forwarding Rate: Industry-standard packet forwarding rate for 24 Gigabit ports
- MAC Table: Large MAC address table for efficient network scalability
- Jumbo Frames: Supports jumbo frames for improved performance on large data transfers
🏗️ Form Factor & Installation
- Form Factor: 1U Rack-Mount designed for SOHO rack cabinets
- Dimensions: Compact footprint suitable for standard 19" racks
- Cooling: Fanless design for silent operation
- Power: Efficient power consumption with PoE budget for connected devices
📦 What's in the Box
- Network switch unit
- Power cord
- Rack-mount brackets
- Quick installation guide
🛡️ Warranty
Backed by a Ubiquiti Limited Lifetime Warranty.
Experience reliable connectivity and scalable network management with the USW-24-POE-AU, tailored to meet modern enterprise and SMB networking demands.
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Virtual LAN features | |
| VLAN support | Yes |
| Management features | |
| Switch layer | L2 |
| Switch type | Managed |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto-sensing | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| Switching capacity | 52 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 38.69 Mpps |
| Security | |
| Authentication | Port-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| Design | |
| Rack mounting | Yes |
| Product colour | Grey |
| Form factor | 1U |
| LED indicators | Yes |
| Certification | ETSI300-019-1.4 CE, FCC, IC |
| Performance | |
| Firmware upgradeable | Yes |
| Power | |
| Power consumption (max) | 25 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 95 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 424.4 mm |
| Depth | 200 mm |
| Height | 43.7 mm |
| Weight | 3 kg |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
