Precision Surveillance – Enhanced Coverage, Confidence, and Smart Detection

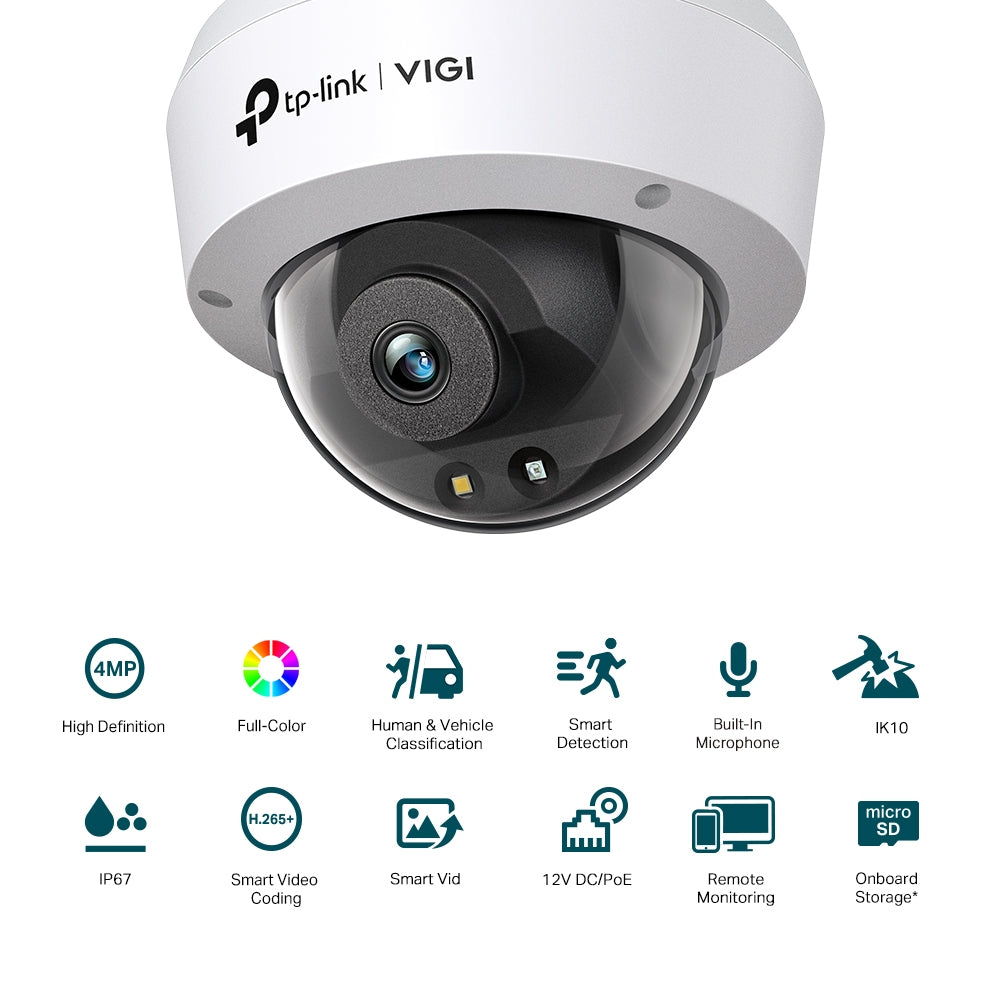

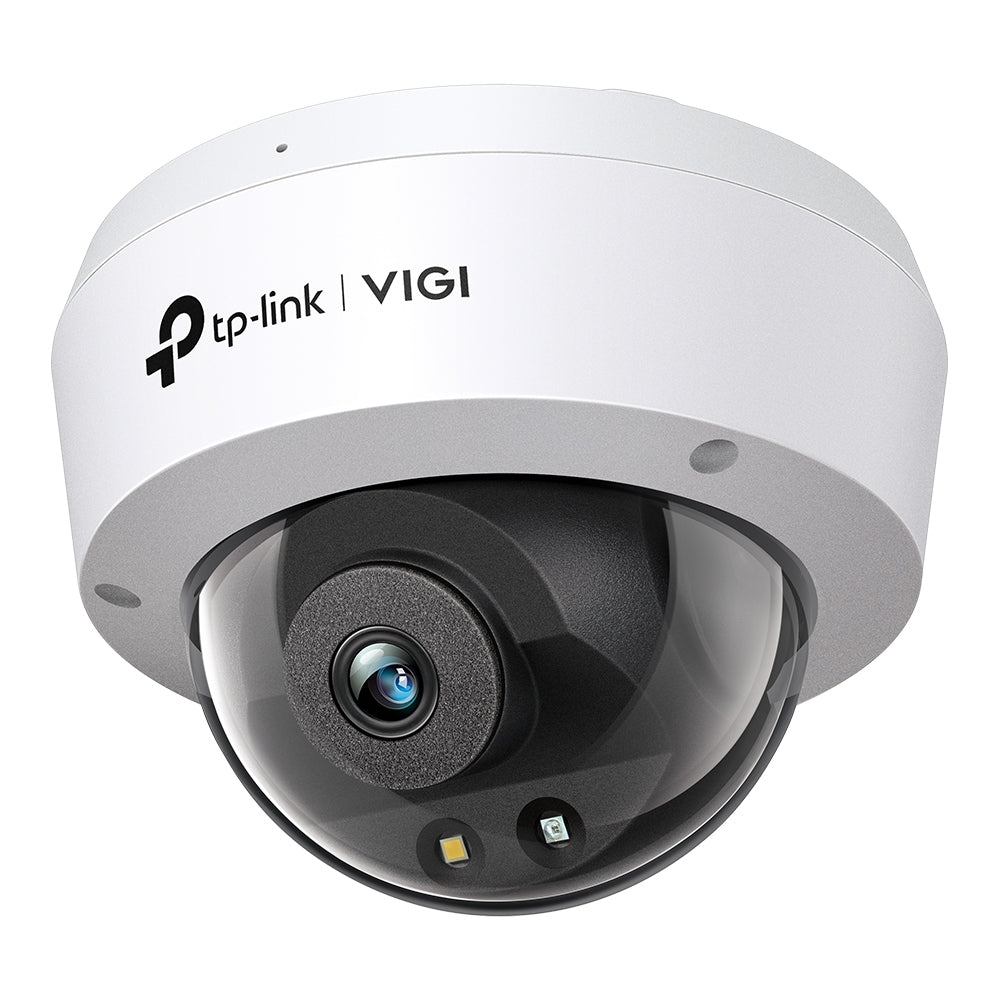

The TP-LINK VIGI C240 combines 4MP resolution and dome design to deliver superior indoor and outdoor security monitoring.
📷 Image Quality
- 4MP Resolution: Crystal-clear 2560 × 1440 pixels capturing fine details with sharp clarity.
- 1/3” Progressive Scan CMOS Sensor: Ensures excellent low-light sensitivity for vivid images even in challenging conditions.
- Frame Rate: Smooth video at 30 FPS for accurate real-time monitoring.

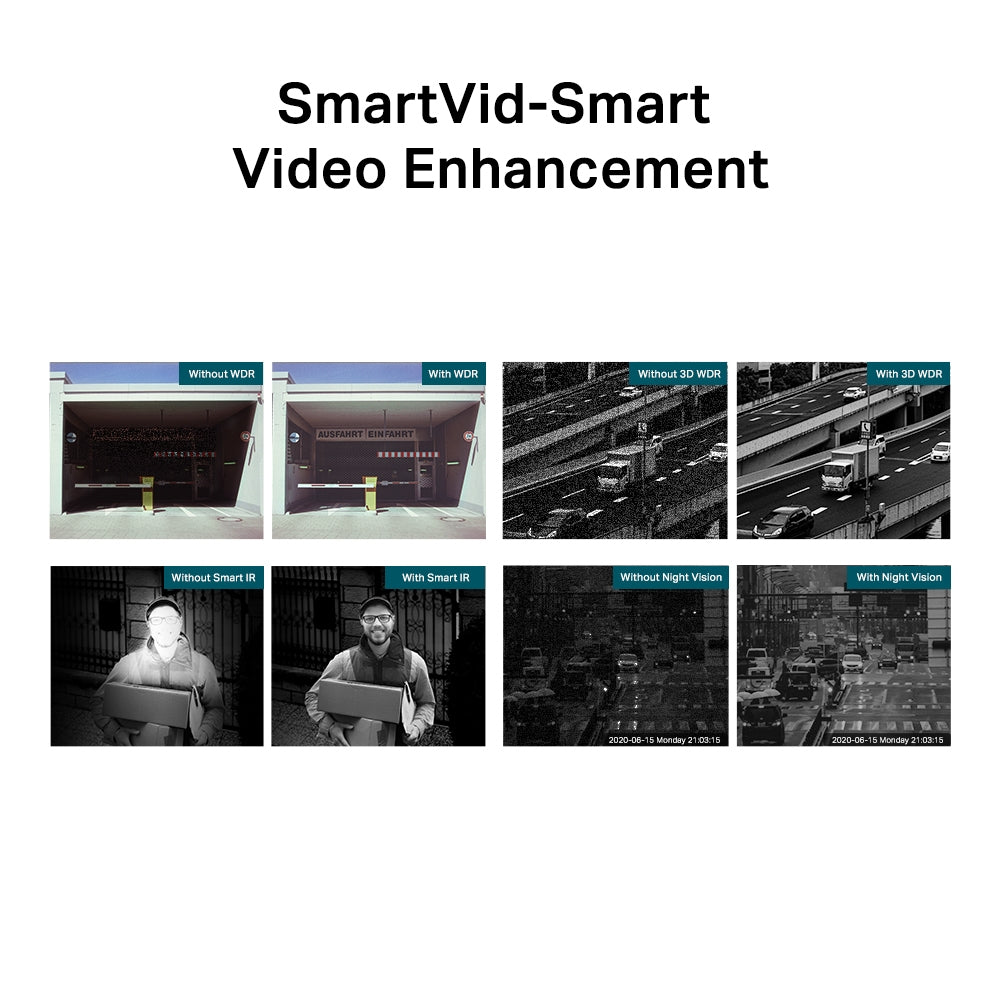

- Wide Dynamic Range: Advanced WDR technology balances high-contrast scenes producing clear views in varied lighting.
🌙 Night Vision
- IR Night Vision: Infrared cut filter with effective IR up to 15 meters for clear night visibility.

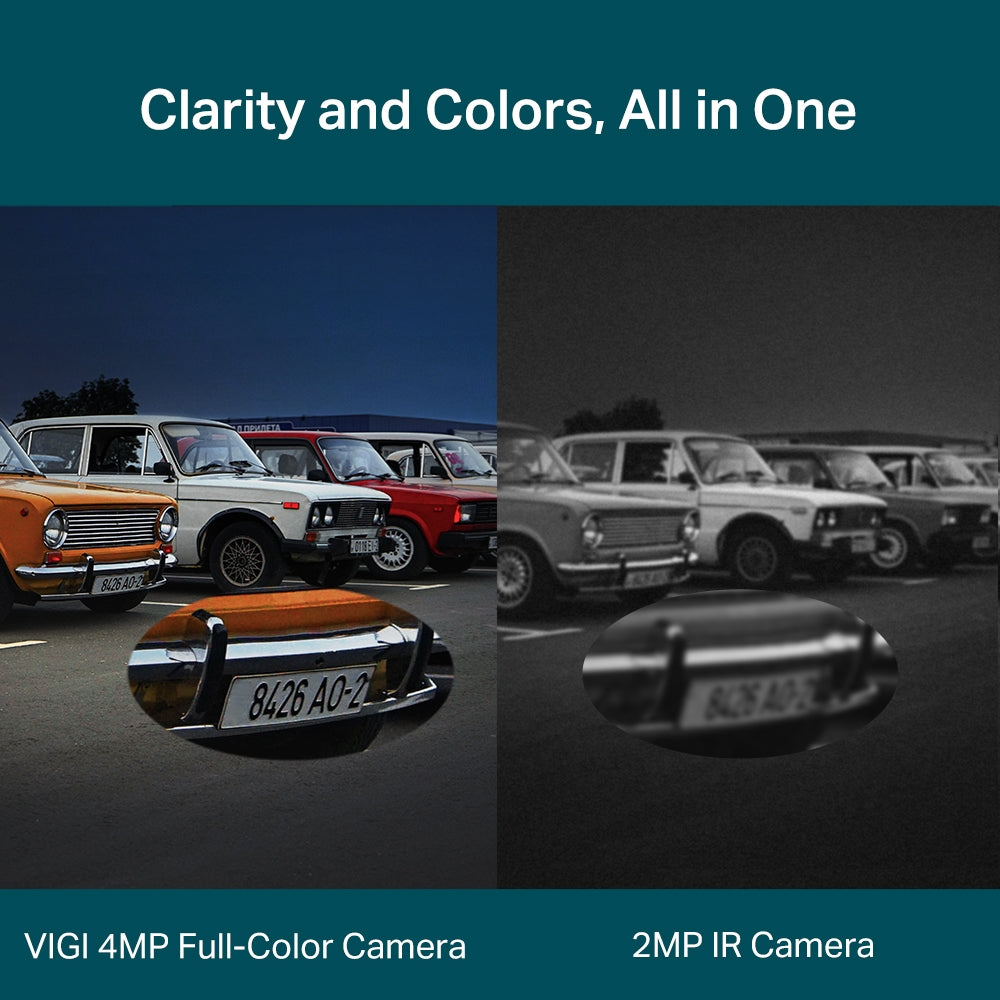

- Color Night Vision: Full-color imaging supported by supplemental white lights for true-to-life color in low light.
- Illumination: Built-in white light LEDs combined with IR enhance nighttime monitoring without compromising clarity.
🤖 Intelligence & Detection
- AI Detection: Accurate human and vehicle classification reduces false alarms while improving alert precision.
- Smart Features: Includes boundary crossing, intrusion detection, object removal, and loitering alerts for versatile protection.
- False Alarm Reduction: AI-driven filtering effectively minimizes unnecessary notifications.
📐 Lens & Coverage
- Lens: Fixed 2.8 mm lens ideal for wide-angle coverage.
- Field of View: Approximately 105° horizontal field of view for comprehensive area monitoring.
- PTZ: Not applicable; fixed dome camera design.
🔌 Connectivity & Power
- Interface: Wired connection via Power over Ethernet (PoE) and optional 12V DC power supports flexible installation.

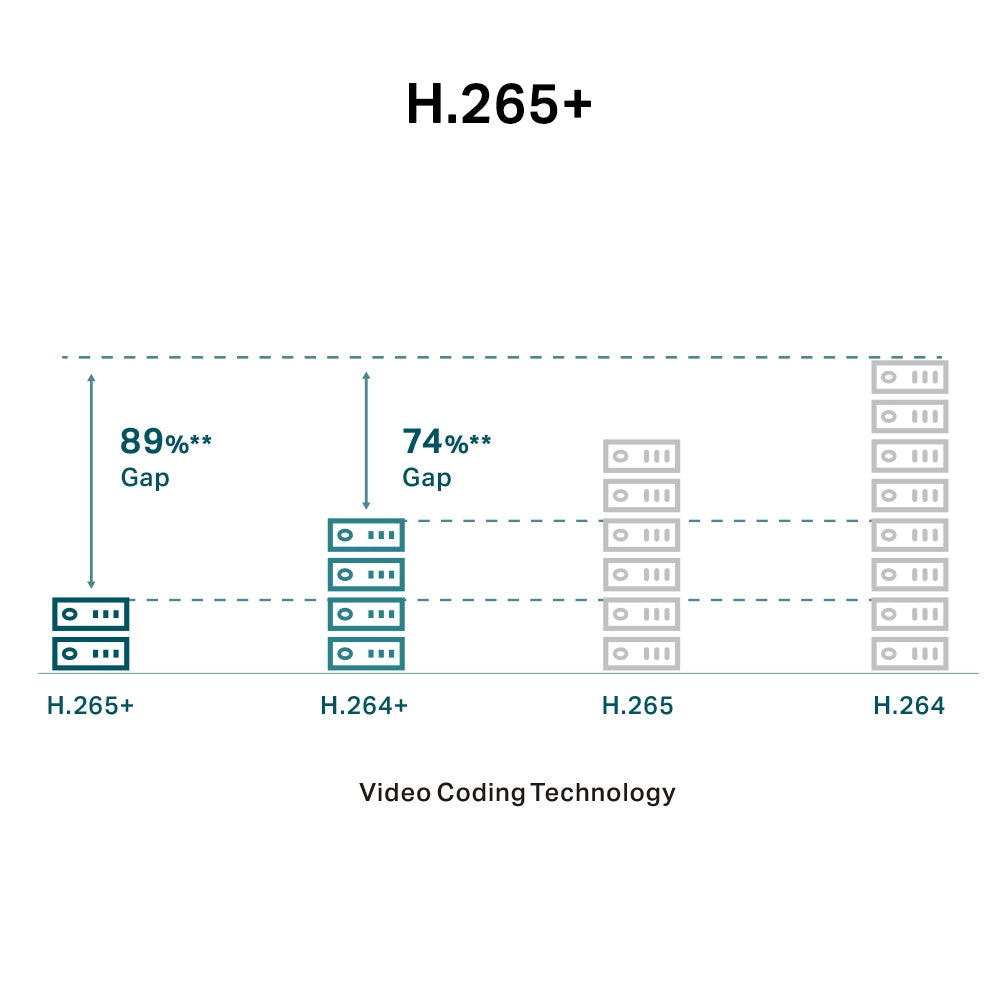

- Video Compression: H.265+ optimizes bandwidth and storage without sacrificing image quality.
- Storage: Supports onboard SD card storage and compatibility with NVRs for secure recording options.
🌦️ Environmental Rating

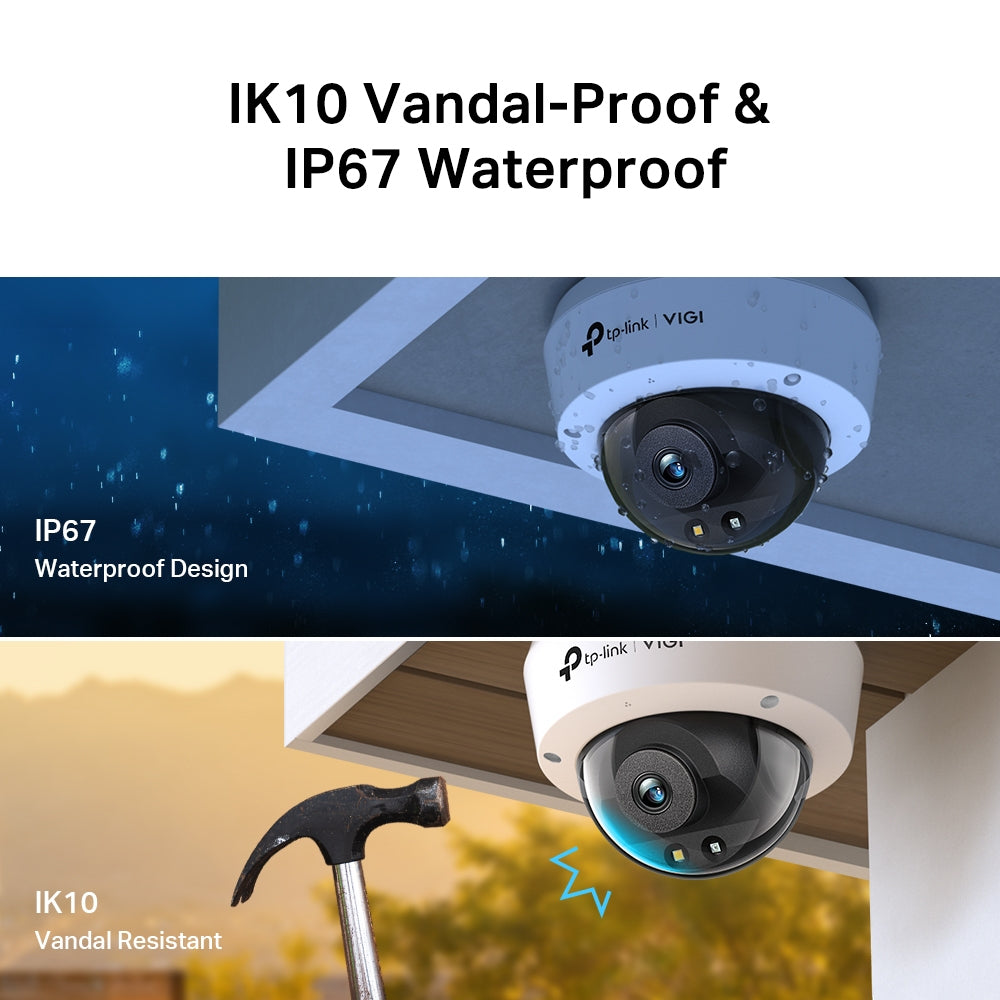

- IP Rating: IP67 rated for dust-tight and waterproof protection, suitable for all weather conditions.
- IK Rating: IK10 vandal-resistant housing protects against physical impacts and tampering.
- Operating Temperature: Designed for reliable performance in a wide temperature range suitable for outdoor environments.
📦 What's in the Box
- TP-LINK VIGI C240 Camera Unit
- Mounting Hardware Kit
- Power Adapter and/or PoE Injector (if included)
- Installation Guide
🛡️ Warranty
Backed by a 2-year warranty to ensure product reliability and service support.
Deliver reliable, intelligent surveillance to secure your premises with confidence and clarity.
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Day/night mode | Yes |
| Certification | CE, BSMI, VCCI, ONVIF |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP67 |
| Housing material | Plastic |
| Camera | |
| Minimum illumination | 0.005 lx |
| Tilt angle range | 0 - 85° |
| Pan range | 0 - 360° |
| Angle of rotation | 360° |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 95.7° |
| Lens viewing angle, vertical | 51.7° |
| Lens viewing angle, diagonal | 113° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Lens system | |
| Number of lenses | 1 |
| Lens diameter | 2.8 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
| Infra-red wavelength | 850 nm |
| Video | |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Bit rate | 64 Kbps - 4 Mbps |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | 3D noise reduction |
| Maximum resolution | 2560 x 1440 pixels |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 4 MP |
| Audio | |

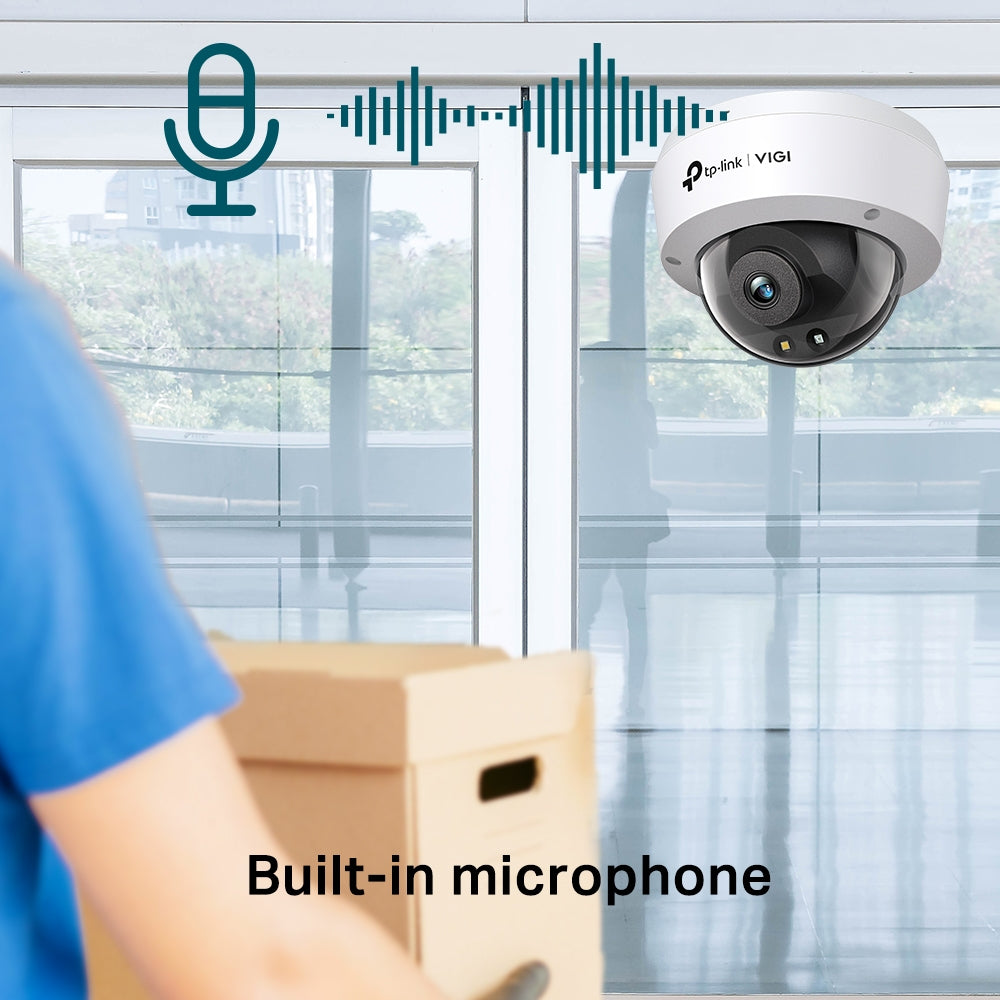

| Built-in microphone | Yes |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Number of simultaneous live view channels | 3 channels |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Maximum memory card size | 256 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Crossing line, Human detection, Intrusion, Region entrance detection, Region exiting detection, Vehicle detection |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Digest authentication | Yes |
| Management features | |
| Management software | VIGI App, VIGI Security Manager, VIGI NVR |
| Web-based management | Yes |
| Reset button | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 5.4 W |
| Certificates | |
| Certification | CE, BSMI, VCCI, ONVIF |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Weight & dimensions | |
| Width | 115 mm |
| Depth | 115 mm |
| Height | 86 mm |
| Features | |
| Basic event | Motion Detection, Camera Tampering Detection, Exception |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Technical details | |
| Sustainability certificates | CE |
| Other features | |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
TP-LINK VIGI C240 – 4MP / Dome / Wired (PoE) – Indoor & Outdoor Security Camera with AI Detection
TP-Link | SKU:
VIGI C240(2.8mm)
$9945
RRP
$10900
Unit price
/
Unavailable
$10940
Incl. GST
