Advanced Surveillance – Comprehensive Coverage, Reliable Security, Precise Detection

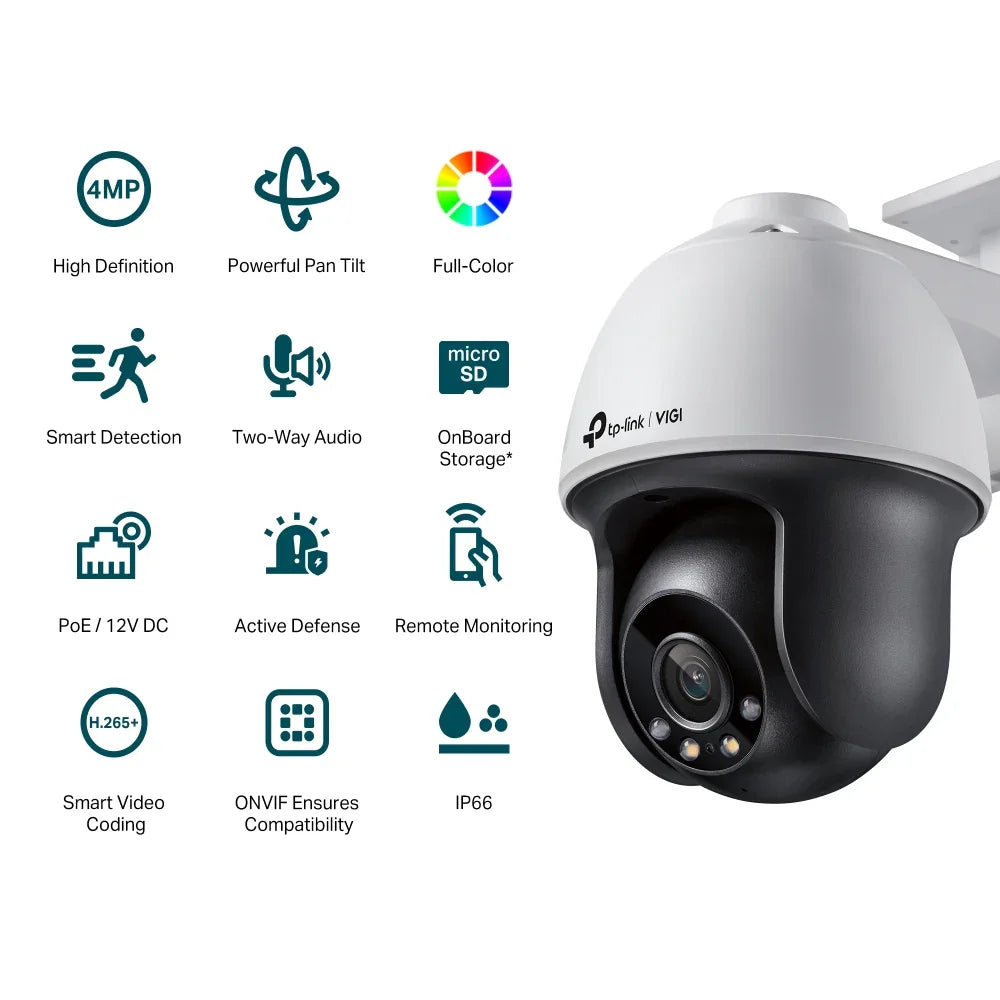

The TP-LINK VIGI C540 offers 4MP resolution PTZ capabilities designed for versatile outdoor monitoring with PoE wired connectivity.
📷 Image Quality
- 4MP Resolution: Crystal-clear 2560 x 1440 pixel capture for detailed identification
- 1/3” Progressive Scan CMOS Sensor: High sensitivity for excellent low-light performance
- 60 FPS: Smooth video at full resolution for real-time monitoring
- Wide Dynamic Range: True-to-life images with minimized shadows and balanced contrast
🌙 Night Vision
- IR Night Vision: Up to 30 meters with Smart IR to prevent overexposure and maintain clarity

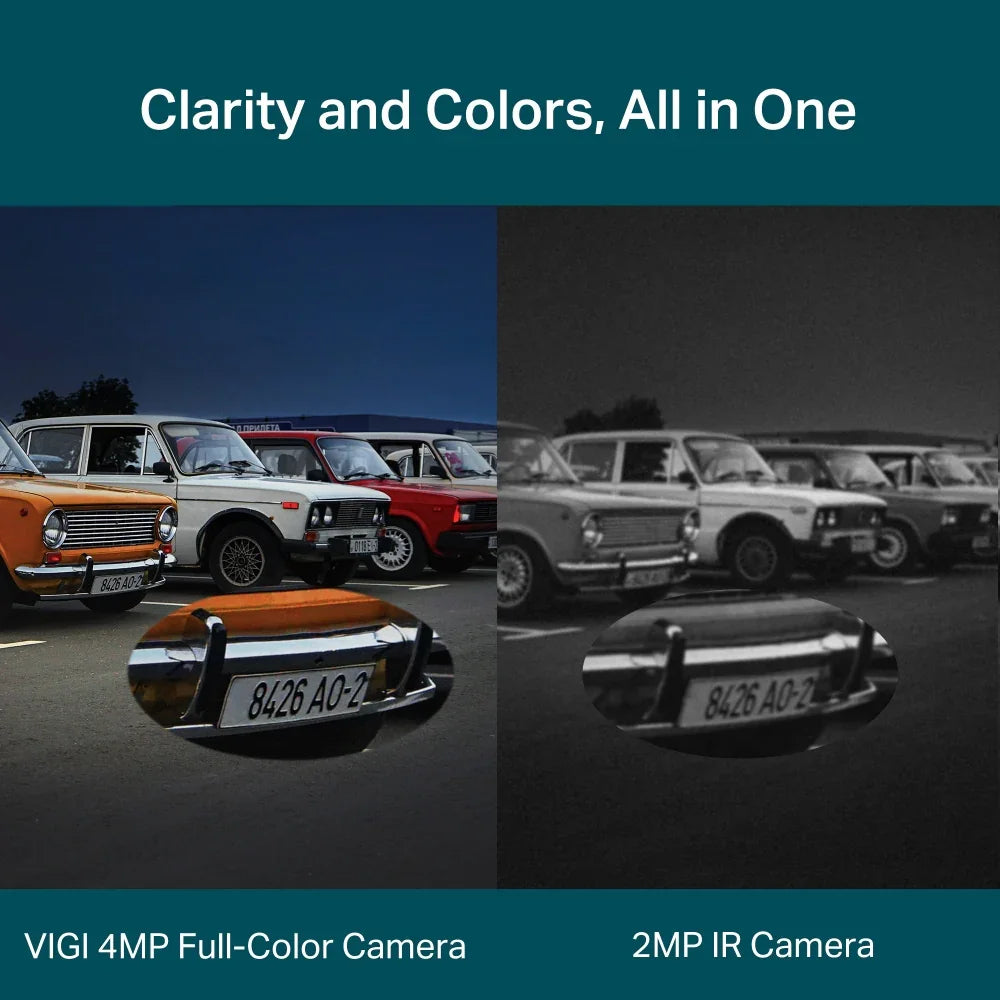

- Color Night Vision: Full-color monitoring even in low-light conditions using supplemental white light
- Illumination: Built-in white light LED for vivid night surveillance
🤖 Intelligence & Detection
- AI Detection: Smart Detection for boundary crossing, intrusion, and obstruction alerts
- Smart Features: Customized patrol routes, auto-tracking, line crossing, loitering identification
- False Alarm Reduction: AI-enhanced motion filtering improves detection accuracy
📐 Lens & Coverage
- Lens: Fixed 4mm focal length, F1.6 aperture for sharp and bright images
- Field of View: Wide coverage enhanced by PTZ pan and tilt functionality

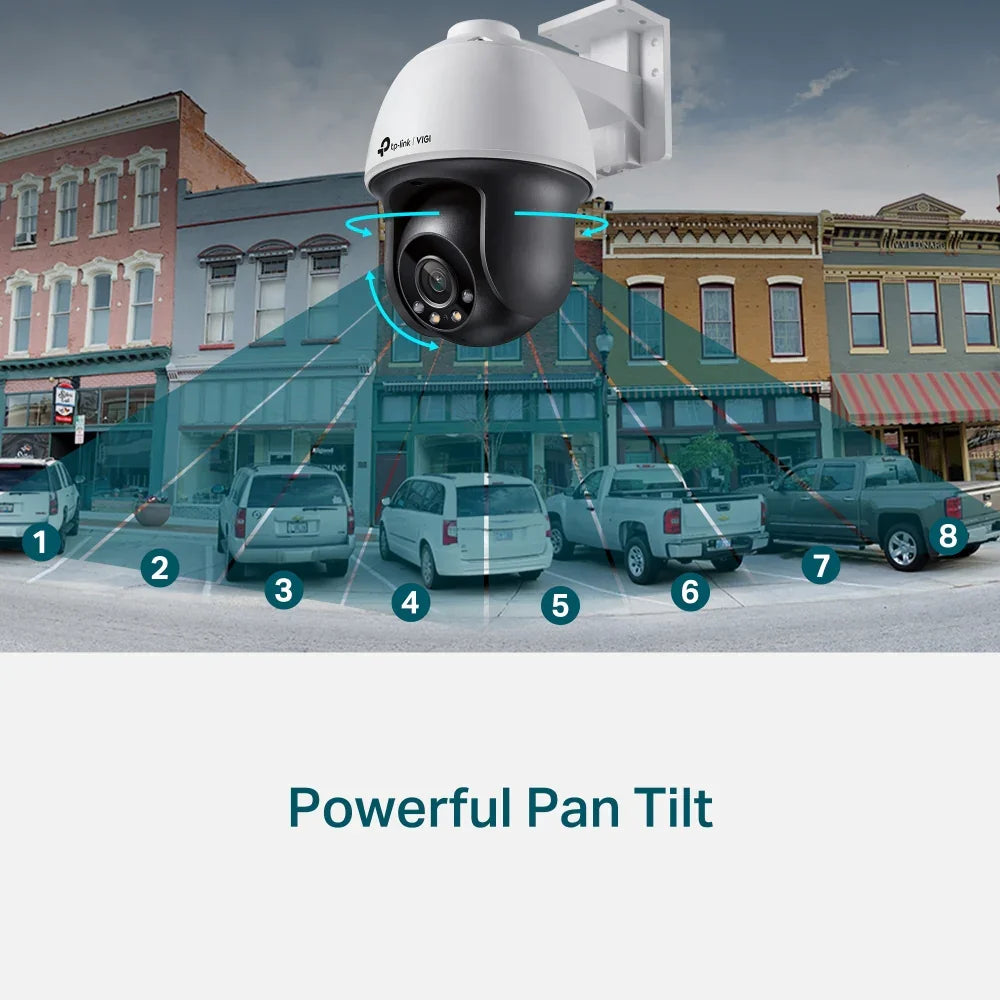

- PTZ: Pan and tilt control enables flexible, comprehensive area monitoring
🔌 Connectivity & Power

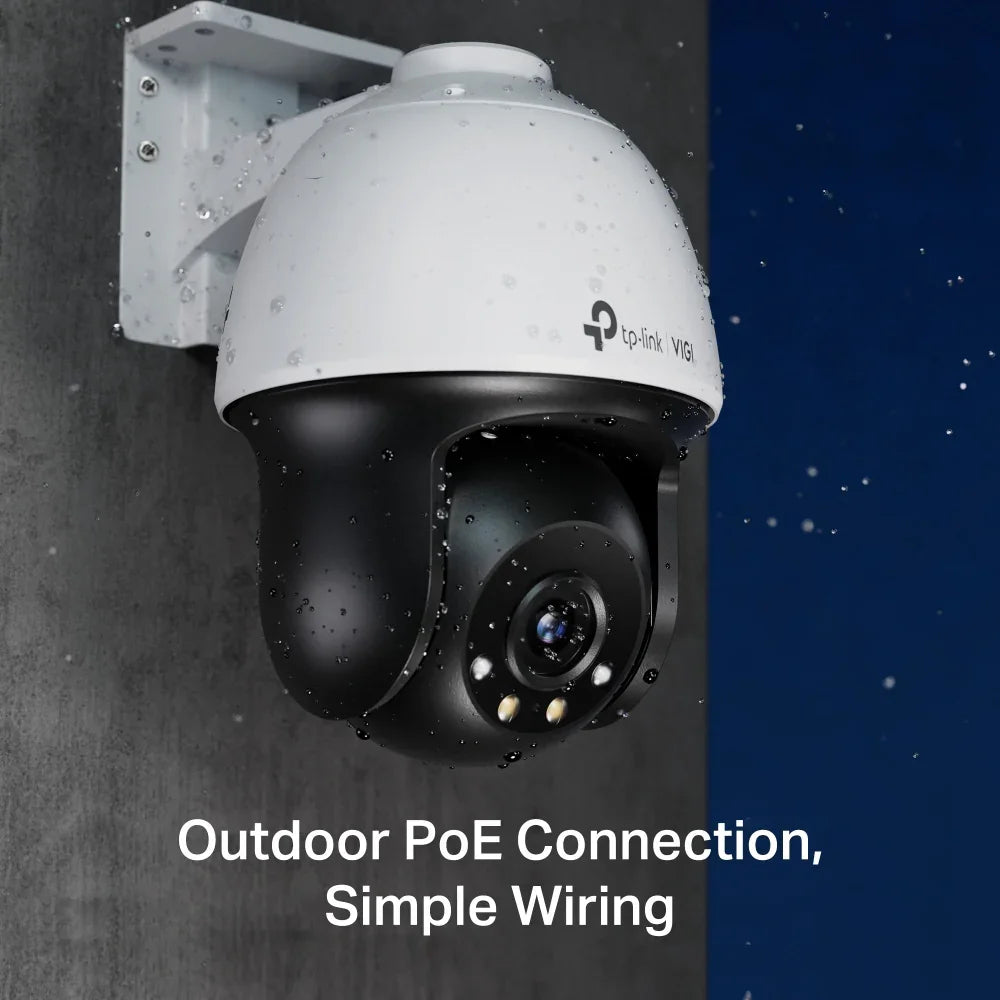

- Interface: Wired PoE (Power over Ethernet) simplifies installation and ensures stable connection
- Video Compression: H.264 and H.265+ supported for efficient storage and network use
- Storage: Supports onboard SD card (up to 256GB), NVR and DVR compatibility
🌦️ Environmental Rating
- IP Rating: IP66 rated for robust dust and water resistance in outdoor environments
- IK Rating: Not specified
- Operating Temperature: Suitable for typical outdoor temperature ranges ensuring reliable performance

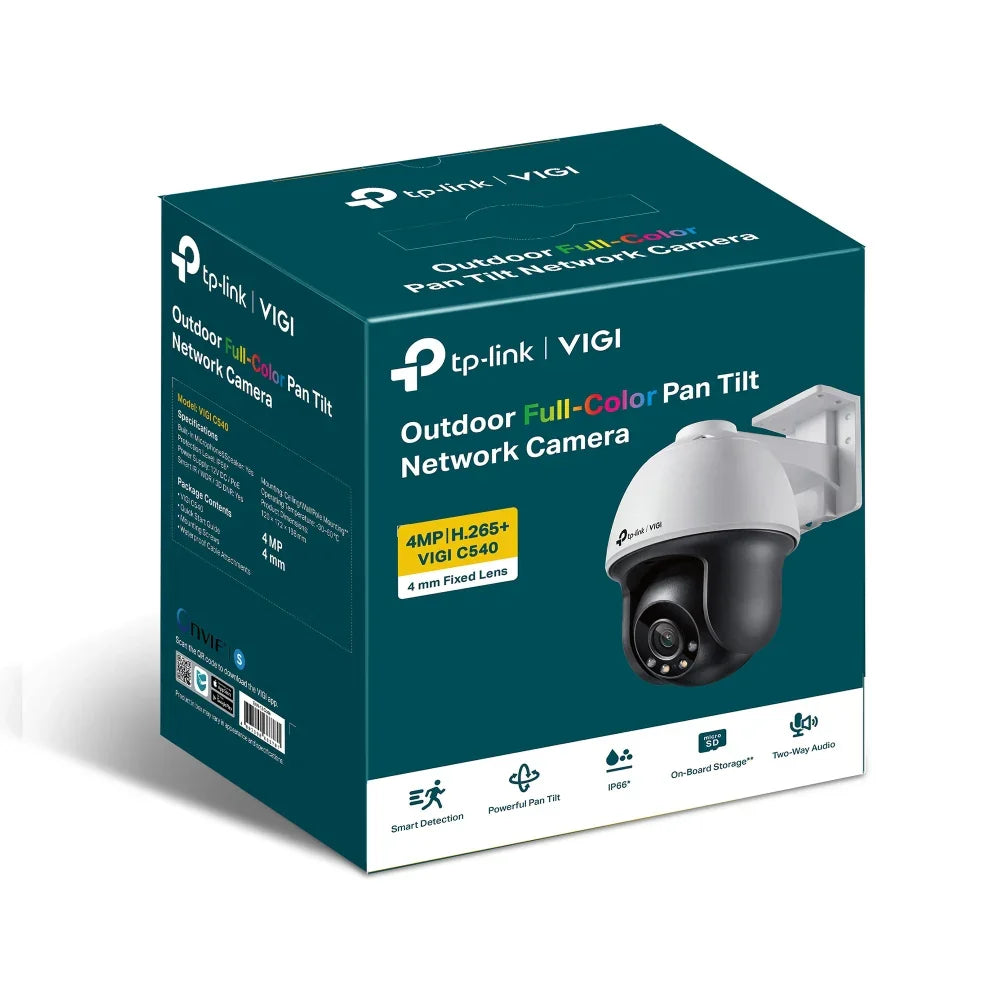

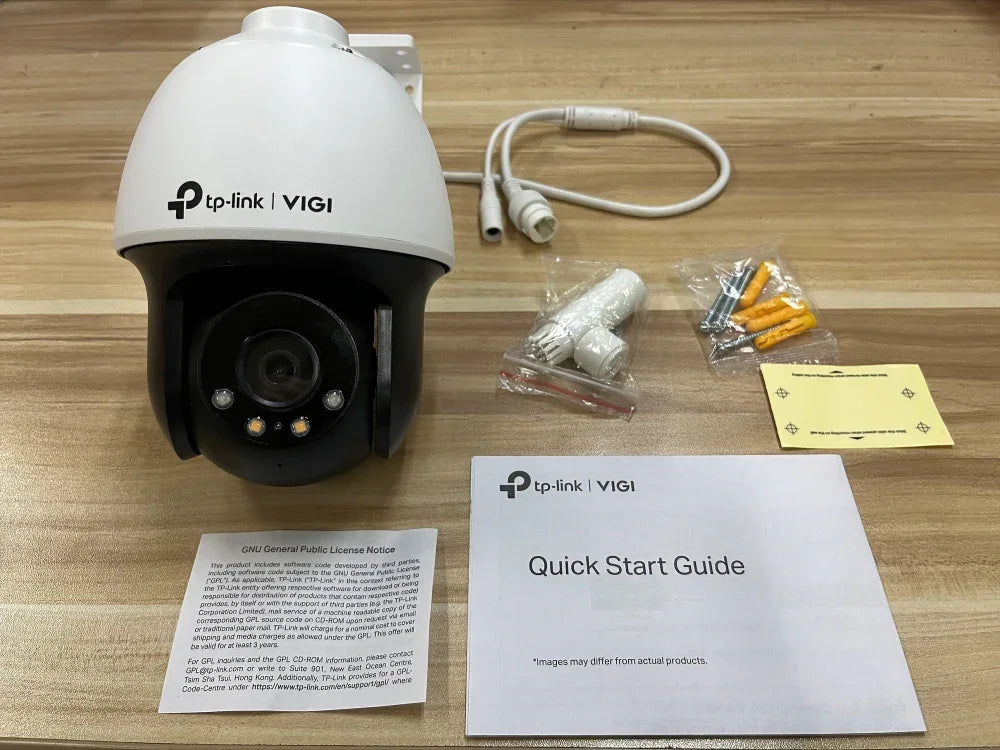

📦 What's in the Box
- TP-LINK VIGI C540 Camera unit
- Mounting hardware
- Installation guide
🛡️ Warranty
Backed by a 2-year warranty.
Deliver reliable, intelligent surveillance designed to protect your property and provide peace of mind.
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Certification | RCM, BSMI, VCCI, NTRA, KC |
| Design | |
| Form factor | Turret |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66 |
| Housing material | Plastic |
| Camera | |
| Tilt angle range | 0 - 120° |
| Pan range | 0 - 350° |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 79° |
| Lens viewing angle, vertical | 43° |
| Lens viewing angle, diagonal | 93° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Lens system | |
| Number of lenses | 1 |
| Zoom capability | Yes |
| Lens diameter | 4 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Video | |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Bit rate | 256 Kbps - 4 Mbps |
| Noise reduction technology | 3D noise reduction |
| Maximum resolution | 2560 x 1440 pixels |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 4 MP |
| Audio | |
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Number of simultaneous live view channels | 3 channels |
| Live view | Yes |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Maximum memory card size | 256 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Intelligent Video Surveillance (IVS) system features | Human detection |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Digest authentication | Yes |
| Management features | |
| Reset button | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection |
| Power | |
| Power source type | PoE |
| Power consumption (Power over Ethernet (PoE)) | 14 W |
| DC output voltage | 12 |
| Certificates | |
| Certification | RCM, BSMI, VCCI, NTRA, KC |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 172 mm |
| Height | 198 mm |
| Features | |
| Basic event | Motion Detection, Camera Tampering Detection, Exception |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Technical details | |
| Sustainability certificates | CE, RoHS |
| Other features | |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
TP-LINK VIGI C540 – 4MP / PTZ / Wired (PoE) – Outdoor Security Camera – 30m IR / Smart Detection
TP-Link | SKU:
VIGI C540(4mm)
$13923
RRP
$14900
Unit price
/
Unavailable
$15315
Incl. GST
Shipping calculated at checkout.
Couldn't load pickup availability
Care information
Care information
- If you discover a fault within 14 days of receiving your item(s), we will help you replace or repair it. Please email us at hello@techforgood.com.au.
- Our warranty policy can be found here.
Delivery and Shipping
Delivery and Shipping
- Orders received before 12pm (AEST) are dispatched same day (Mon-Fri only)
- Orders are only processed Monday-Friday (and not on public holidays).
- You can expect your order to arrive within 3-5 days.
- We do not ship to PO box addresses.
- Our full shipping policy can be found here.
TP-LINK VIGI C540 – 4MP / PTZ / Wired (PoE) – Outdoor Security Came...
$13923
RRP
$14900
Unit price
/
Unavailable
$15315
Incl. GST
