Enhanced Surveillance Coverage – Security Confidence – Detection Accuracy

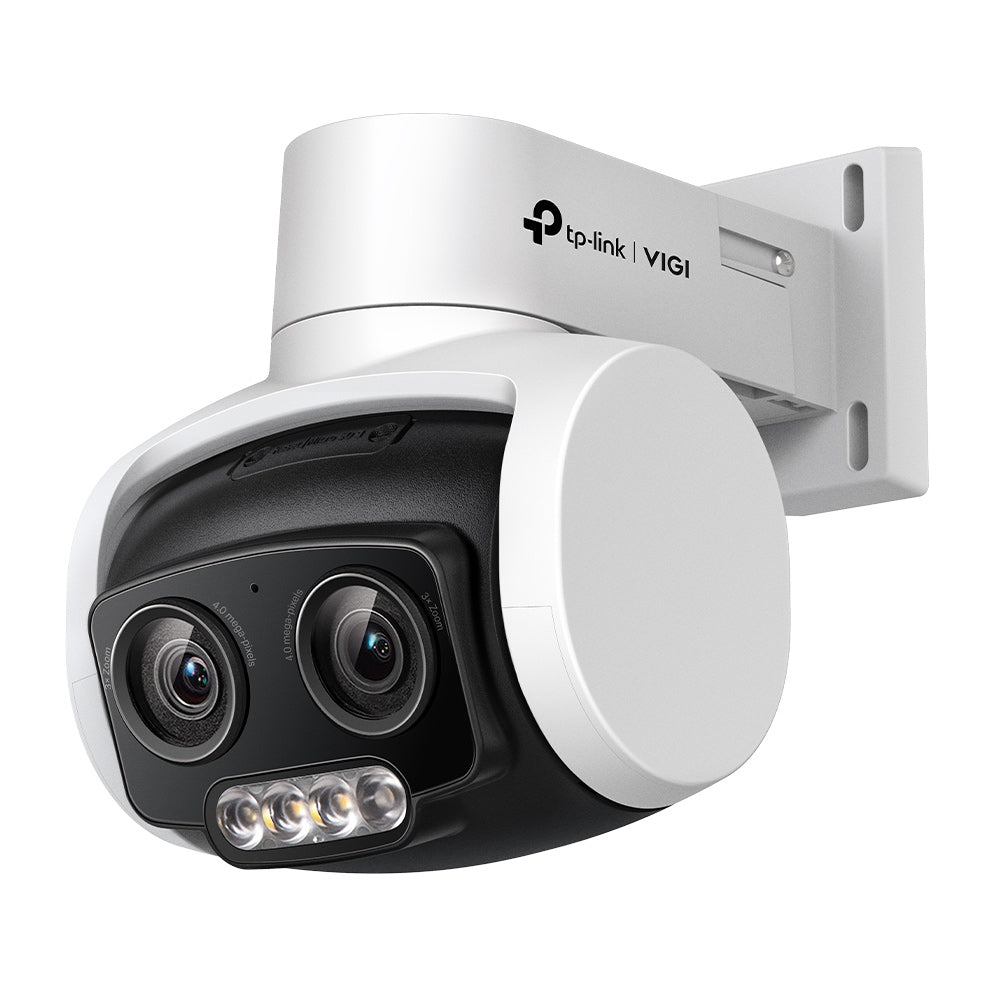

The TP-LINK VIGI C540V is a 4MP PTZ network camera designed for reliable outdoor surveillance. Equipped with varifocal lens and PoE connectivity, it ensures versatile, high-quality coverage for business security.
📷 Image Quality
- 4MP Resolution: Captures high-definition 2560 x 1440 pixel images for clear detail.
- Progressive Scan CMOS Sensor: Provides excellent low-light performance and image clarity.
- Frame Rate: Smooth monitoring with up to 30 FPS at full resolution.
- Wide Dynamic Range: Supports WDR for clear images in high contrast lighting.
🌙 Night Vision
- IR Night Vision: Infrared LEDs with 850nm wavelength deliver up to 30 meters of visibility in darkness.
- Full-Color Night Vision: Large-aperture lens and supplemental white lighting provide clear, colorful images at night.
- Illumination: Integrated IR LEDs and supplemental lighting for reliable night-time surveillance.
🤖 Intelligence & Detection
- AI Detection: Advanced human and vehicle classification improves alarm accuracy.
- Smart Features: Includes line crossing, intrusion detection, and patrol route customization.
- False Alarm Reduction: AI-based filtering minimizes irrelevant alerts to enhance reliability.
📐 Lens & Coverage
- Varifocal Lens: Adjustable focal length from 4mm to 12mm for flexible field of view.
- Field of View: Wide horizontal coverage supported by pan and tilt functionality.
- PTZ: Pan, tilt, and zoom capabilities allow dynamic monitoring of up to 8 preset patrol points.
🔌 Connectivity & Power
- Interface: Wired PoE connection simplifies installation and power delivery over a single cable.
- Video Compression: Supports H.265+ encoding for efficient storage and bandwidth management.
- Storage: Local SD card slot supports up to 256 GB; compatible with NVR/DVR systems.
🌦️ Environmental Rating
- IP Rating: IP66-rated for dust-tight and water-resistant outdoor performance.
- IK Rating: Not specified; standard vandal protection not assigned.
- Operating Temperature: Designed for reliable use across typical outdoor temperature ranges.

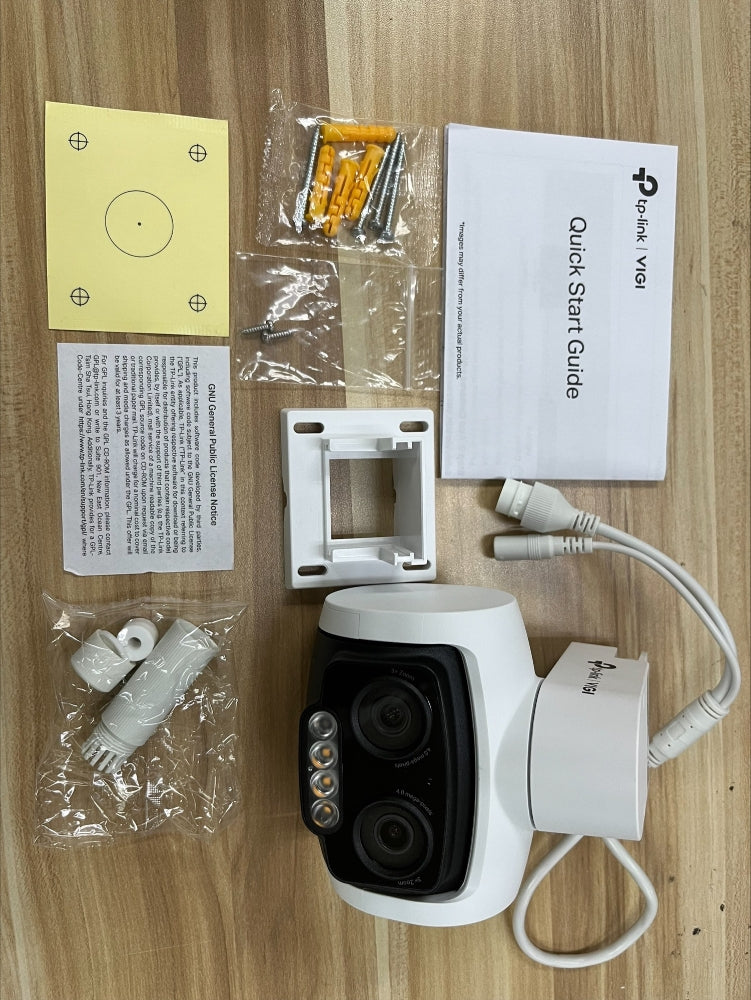

📦 What's in the Box
- TP-LINK VIGI C540V Camera Unit
- Mounting Hardware
- Power Adapter / PoE Injector (if included)
- Installation Guide
🛡️ Warranty
Backed by a 2-year warranty.
Deliver reliable, intelligent surveillance with the TP-LINK VIGI C540V to protect your premises effectively.
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Certification | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
| Design | |
| Product colour | White, Black |
| Mounting type | Ceiling |
| International Protection (IP) code | IP66 |
| Housing material | Plastic |
| Camera | |
| Tilt angle range | 0 - 120° |
| Tilt speed | 40 °/sec |
| Pan range | 0 - 332° |
| Pan speed | 55 °/sec |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 84° |
| Lens viewing angle, vertical | 46° |
| Lens viewing angle, diagonal | 100° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 1.6 |
| Zoom capability | Yes |
| Digital zoom | 3x |
| Focal length range | 4 - 12 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
| Infra-red wavelength | 850 nm |
| Video | |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Bit rate | 256 Kbps - 4 Mbps |
| Maximum resolution | 2560 x 1440 pixels |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Supported video modes | 720p, 1080p, 1440p |
| Frame rate | 30 fps |
| Total megapixels | 4 MP |
| Video recording | Yes |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Maximum memory card size | 256 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 2.9 W |
| Power consumption (max) | 14 W |
| DC output voltage | 12 |
| Certificates | |
| Certification | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Package type | Box |
| Width | 136 mm |
| Depth | 139 mm |
| Height | 107 mm |
| Weight | 430 g |
| Package weight | 660 g |
| Packaging content | |
| Number of cameras | 1 |
| Package type | Box |
| Manual | Yes |
TP-LINK VIGI C540V – 4MP / PTZ / Wired (PoE) – Outdoor Security Camera – IR 30m / AI Detection
TP-Link | SKU:
VIGI C540V
$18018
RRP
$18900
Unit price
/
Unavailable
$19820
Incl. GST
