Enterprise Wi-Fi, high-density deployment, seamless coverage
The TP-LINK EAP245 delivers robust Wi-Fi 5 (802.11ac) performance optimized for indoor enterprise environments with cloud-managed flexibility.
📶 Wi-Fi Performance
- Wi-Fi Standard: Wi-Fi 5 (802.11ac) provides reliable high-throughput performance ideal for dense client deployments.
- Combined Speed: Up to 1750 Mbps aggregate across 2.4 GHz and 5 GHz bands.
- MU-MIMO / OFDMA: MU-MIMO technology ensures efficient multi-client connectivity for busy enterprise networks.
- Spatial Streams: 2x2 MIMO antenna configuration supporting spatial multiplexing for enhanced throughput.
📡 Coverage & Capacity
- Coverage Area: Recommended for medium-size indoor spaces, providing reliable coverage in dense office environments.
- Client Capacity: Supports numerous concurrent device connections for enterprise-scale deployments.
- Antenna: Internal antennas with beamforming technology to improve signal focus and coverage.
🔌 Connectivity & Power

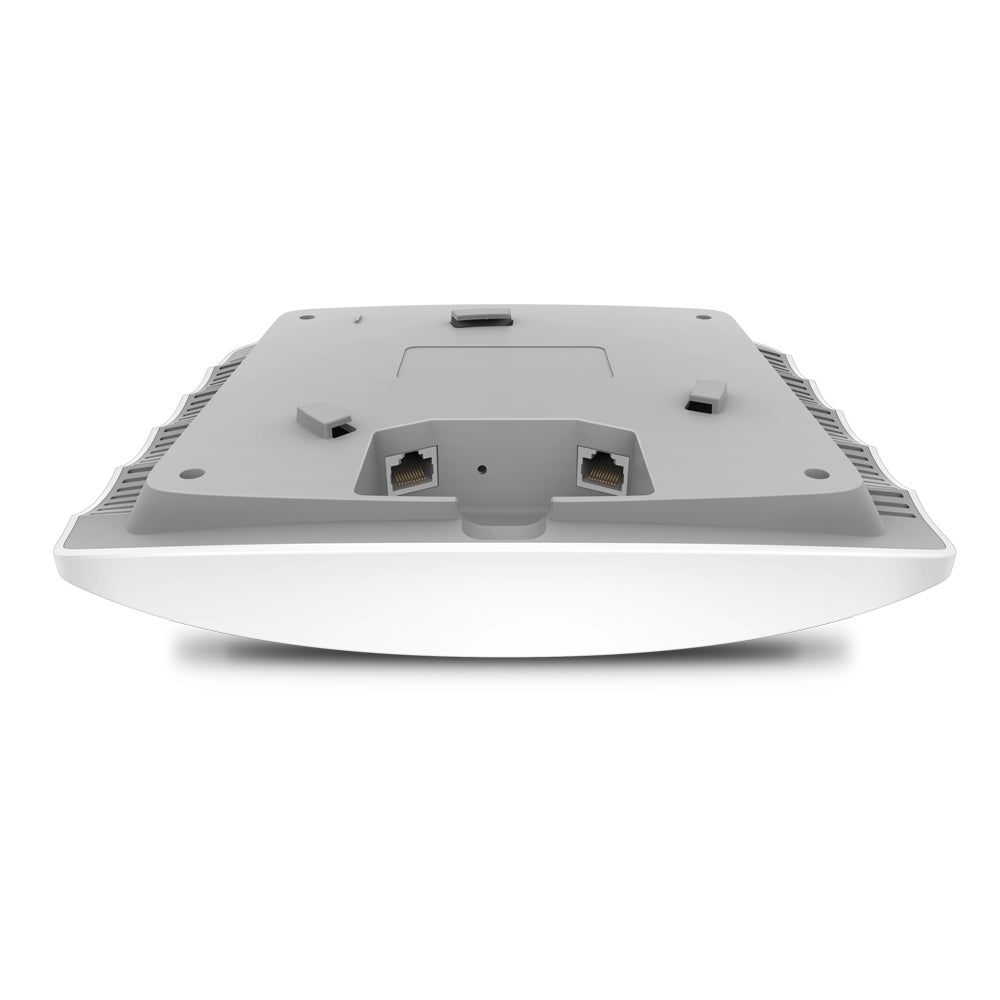

- Ethernet Port: Dual Gigabit RJ-45 ports for wired uplink and link aggregation.
- PoE: Supports both 802.3af PoE and passive PoE for flexible power installation.
- Power Consumption: Maximum 12.3W power draw for efficient PoE switch planning.
⚙️ Management
- Management Platform: Cloud-managed via Omada Cloud Controller or Omada software controller for remote real-time monitoring.
- Zero-Touch Provisioning: Auto-configuration enables rapid, hassle-free deployments from the cloud.
- VLAN / SSID: Supports multiple SSIDs with VLAN tagging for segmented and secured wireless access.
- Monitoring: Real-time analytics, client management, and rogue AP detection enhance network security.
🔒 Security
- Encryption: Supports WPA3, WPA2-Enterprise, and 802.1X for advanced enterprise security.
- Guest Isolation: Captive portal with Facebook and SMS login options maintain secure guest access and network isolation.
🏗️ Form Factor & Installation
- Mounting: Ceiling and wall mount options with included hardware for flexible deployment.
- IP Rating: Indoor use; no outdoor IP rating.
- Dimensions: Compact form factor weighing 3540 grams for easy installation.
📦 What's in the Box

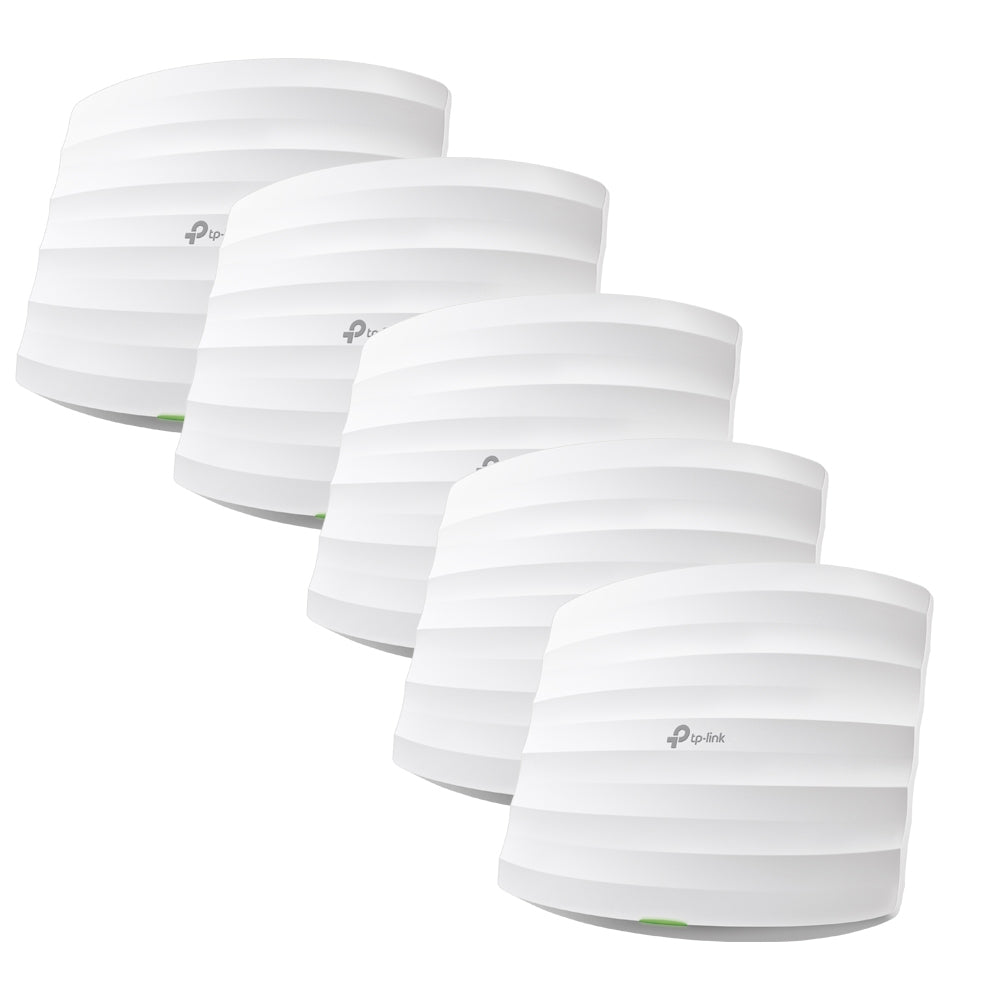

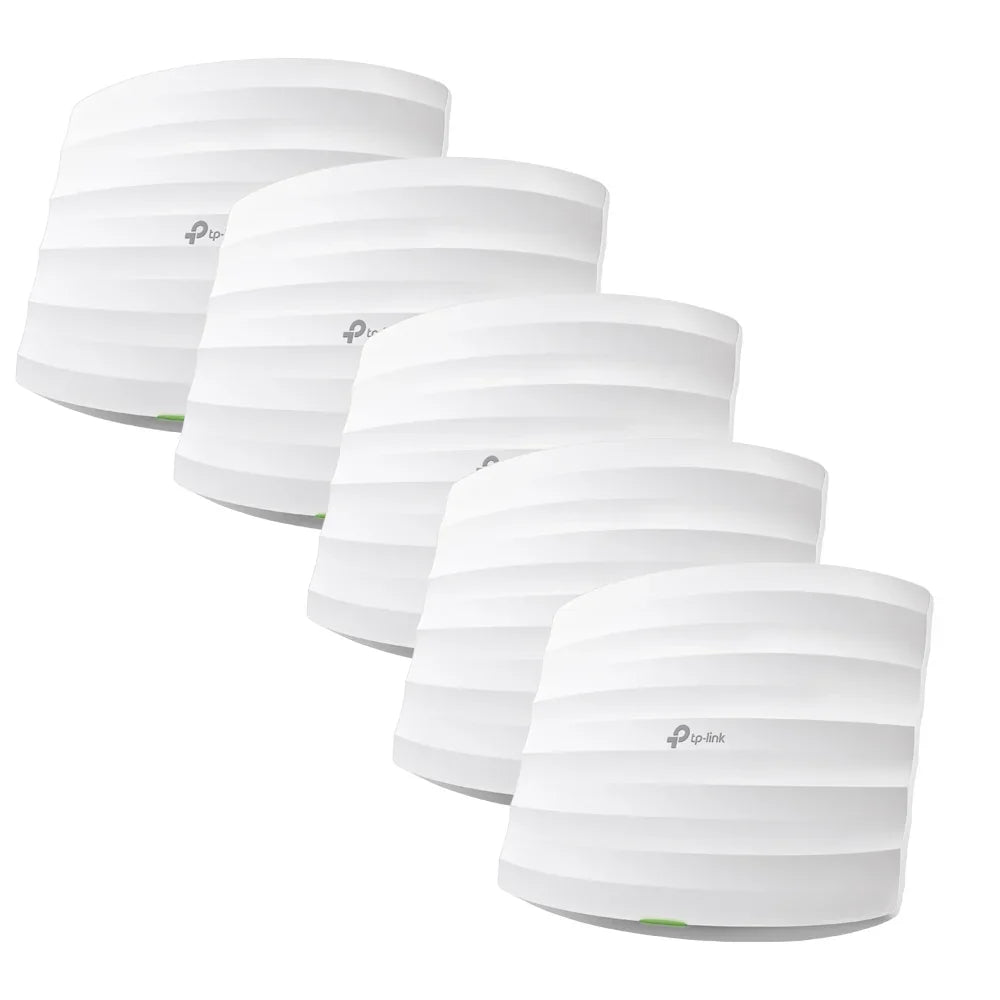

- 5x Access point units
- Mounting hardware for ceiling and wall installation
- PoE injectors included for flexible power delivery
- Quick installation guide
🛡️ Warranty
Backed by a 2-year limited warranty.
Deliver enterprise-grade wireless performance and seamless connectivity across every floor and facility with the TP-LINK EAP245.
| Performance | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Syslog | Yes |
| Maximum data transfer rate | 1750 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4, 5 GHz |
| Web-based management | Yes |
| VLAN support | Yes |
| Transmitting power | 27 dBmW |
| Reset button | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af |
| Certification | CE, FCC, RoHS |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wi-Fi roaming | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Maximum data transfer rate | 1750 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4, 5 GHz |
| VLAN support | Yes |
| Transmitting power | 27 dBmW |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wi-Fi roaming | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Maximum data transfer rate (2.4 GHz) | 450 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1300 Mbit/s |
| Virtual LAN features | SSID-based VLAN assignment |
| Security | |
| Number of SSID supported | 16 |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
| Management features | |
| Syslog | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Power | |
| Power consumption (typical) | 12.3 W |
| Input current | 1.5 A |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 48 V |
| Design | |
| Placement | Ceiling, Wall |
| Reset button | Yes |
| LED indicators | Yes |
| Product colour | White |
| Certification | CE, FCC, RoHS |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 4 dBi |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Weight & dimensions | |
| Width | 206 mm |
| Depth | 182 mm |
| Height | 37 mm |
| Packaging data | |
| Mounting kit | Yes |
| Number of products included | 5 pc(s) |
| Packaging content | |
| Mounting kit | Yes |
| Number of products included | 5 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
