Reliable, Scalable Networking for Small Business Environments
The Aruba Instant On 1830 24-Port Gigabit Switch is a smart-managed Layer 2 Ethernet switch designed specifically for SMBs. It offers easy deployment, essential security features, and energy-efficient operation to meet evolving business network demands.
🔌 Ports & Connectivity
- 24x Gigabit RJ45 Ports: High-speed Ethernet connectivity for multiple devices.
- 2x SFP Uplink Ports: Fiber uplink support for network expansion and backbone integration.
- PoE Support: Optional Class 4 PoE ports for powering connected devices with simplified cabling.
- Stacking: Not supported.
⚙️ Management & Intelligence
- Management Type: Smart (Web-Managed) Layer 2 switch.
- Management Interface: Instant On cloud-management platform and local web GUI for flexible control.
- VLAN Support: IEEE 802.1Q VLANs to segment network traffic and enhance security.
- Routing: Layer 2 switching only; no Layer 3 routing features.
🛡️ Security & QoS
- Access Control: IEEE 802.1X authentication, VLANs, and MAC filtering protect network access.
- QoS: Traffic prioritization optimized for VoIP and video streaming applications.
- Storm Control: Global broadcast and multicast storm protection enhances network stability.
⚡ Performance
- Switching Capacity: Designed to handle high-throughput at Gigabit speeds.
- Forwarding Rate: Supports efficient packet forwarding for small business needs.
- MAC Table: Suitable size for SMB device connectivity and network scalability.
- Jumbo Frames: Supported to improve performance with large data packets.
🏗️ Form Factor & Installation
- Form Factor: 1U Rack-Mount chassis for easy integration into server rooms.
- Dimensions: Standard 1U size compatible with typical racks (exact dimensions not specified).
- Cooling: Energy-efficient fan-cooled system with low noise levels.
- Power: Complies with 802.3az for energy savings; no redundant PSU option.
📦 What's in the Box
- Aruba Instant On 1830 switch unit
- Power adapter / power cord
- Rack-mount brackets
- Quick installation guide
🛡️ Warranty
Backed by a Aruba limited warranty.
Experience reliable connectivity and simple, scalable management tailored for small business networks.
| Network | |
|---|---|
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto-sensing | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Virtual LAN features | |
| VLAN support | Yes |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Processor frequency | 800 MHz |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Data transmission | |
| MAC address table | 16000 entries |
| Switching capacity | 52 Gbit/s |
| Throughput | 38.68 Mpps |
| Latency (10-100 Mbps) | 5.2 µs |
| Latency (1 Gbps) | 2.8 µs |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 7.8 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 95% |
| Weight & dimensions | |
| Width | 215.9 mm |
| Depth | 443 mm |
| Height | 43.9 mm |
| Weight | 2.49 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |

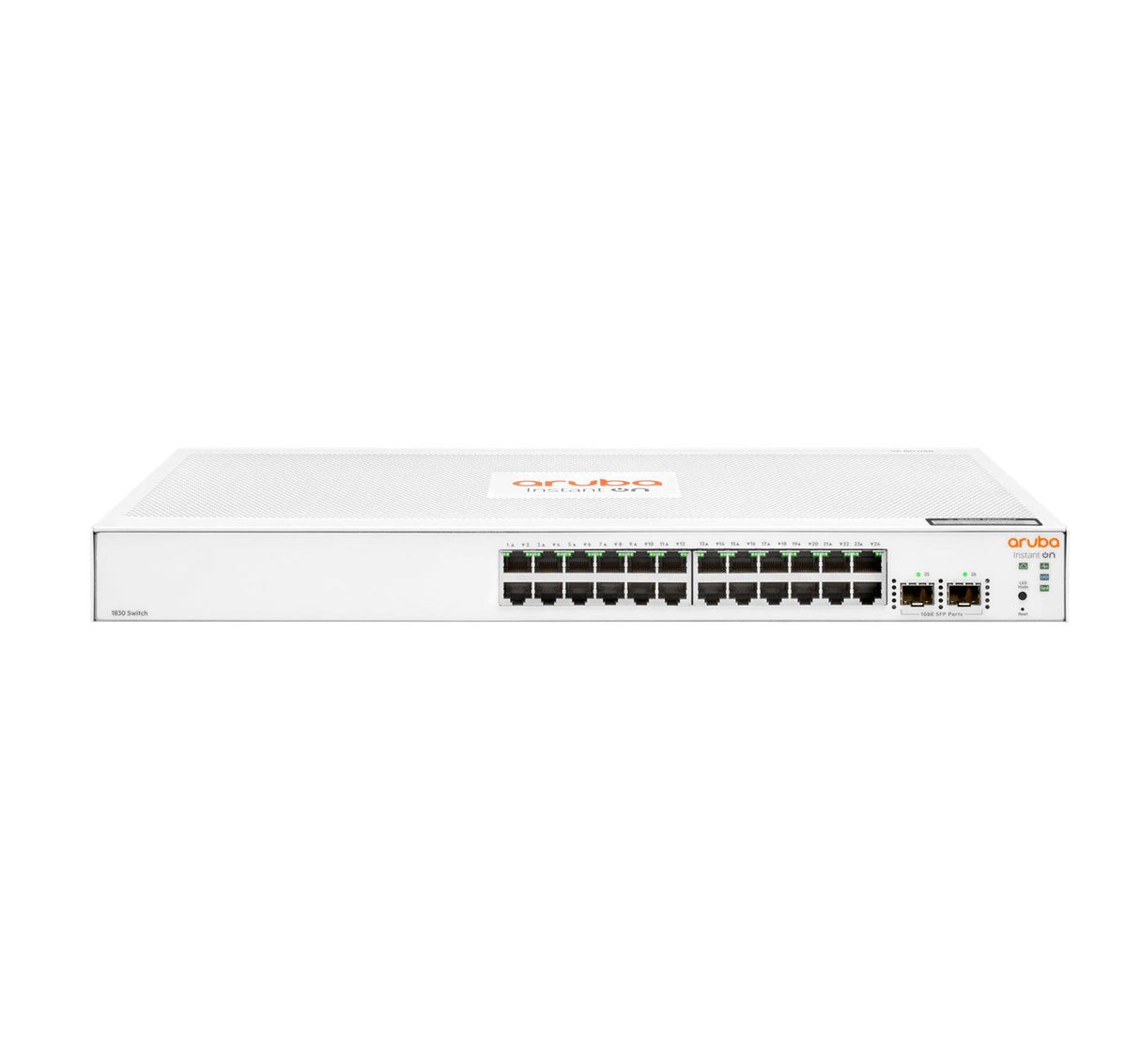

ARUBA Instant On 1830 – Smart Managed Layer 2 / 24-Port / Gigabit – Rack-Mount (1U) Network Switch
HPE | SKU:
JL812A
$37439
RRP
$51200
Unit price
/
Unavailable
$41183
Incl. GST
Shipping calculated at checkout.
