Advanced Access Layer Switch for Reliable, Scalable Enterprise Networking

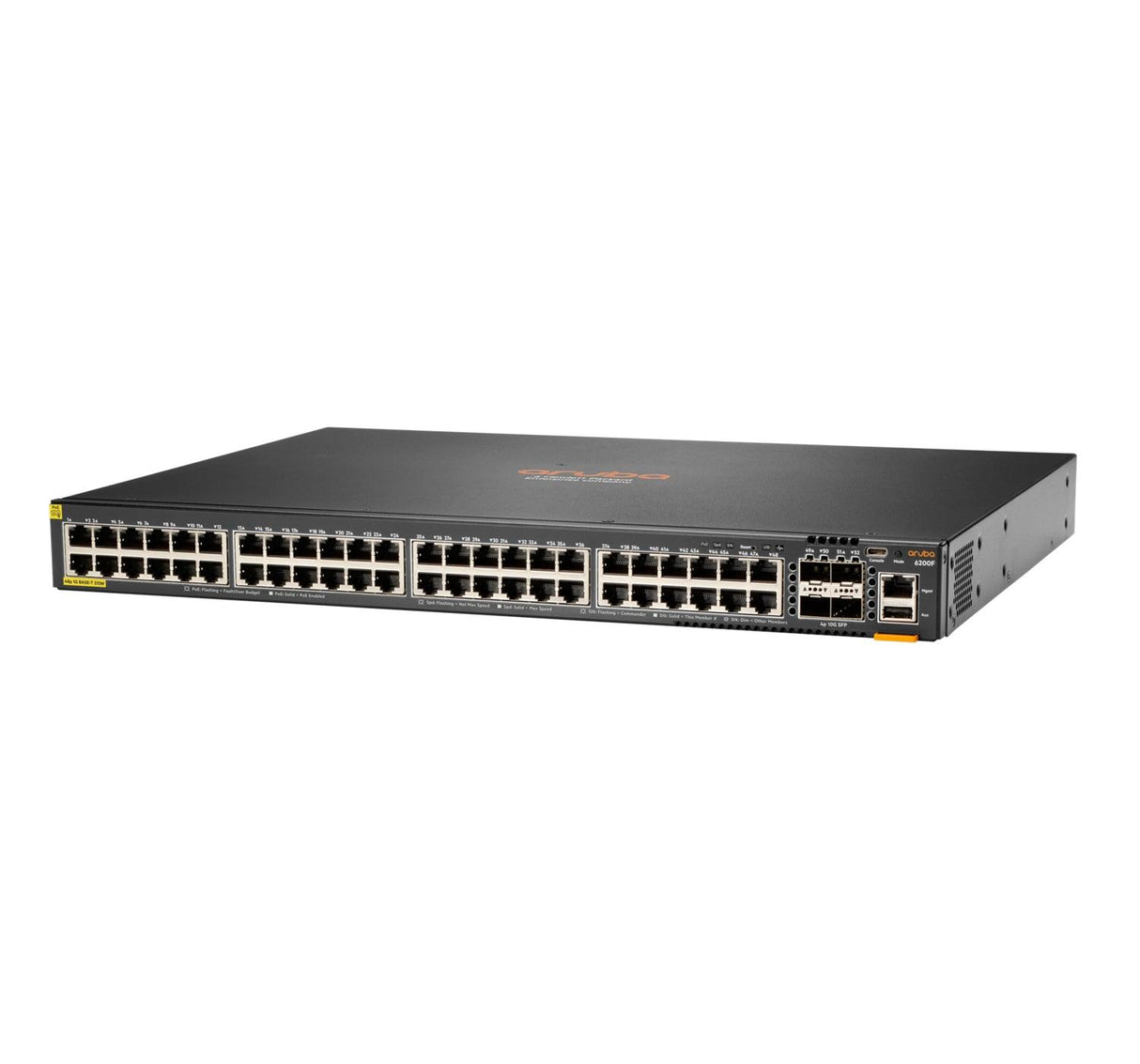

The HPE Aruba CX 6200F Switch is a high-performance managed Layer 3 network switch designed for SMBs, enterprise branch offices, and campus deployments. It delivers robust PoE+ capabilities and cloud-centric programmability to simplify network management while supporting next-generation IoT and wireless devices.

🔌 Ports & Connectivity

• 48 Gigabit RJ45 Ports: Full gigabit speed for high-density access layer connectivity
• 4 SFP+ Uplink Ports: High-speed 10Gbps fiber uplinks for flexible network topology
• PoE Support: 370W total PoE budget supporting IEEE 802.3at Class 4 (up to 60W per port)
• Stacking: Supports Aruba Virtual Stacking Framework (VSF) with up to 8 switches for simplified, scalable management

⚙️ Management & Intelligence

• Management Type: Fully managed Layer 3 switch offering extensive routing and switching features
• Management Interface: CLI, Aruba NetEdit automation, Aruba CX Mobile App, REST APIs for programmable network control
• VLAN Support: Advanced 802.1Q VLAN tagging with dynamic segmentation and automated device profiling
• Routing: Static and dynamic routing capabilities including VXLAN support for overlay networks

🛡️ Security & QoS

• Access Control: Robust ACL enforcement, 802.1X authentication, and device profiling for secure network access
• QoS: Traffic prioritization with dedicated queues optimized for voice, video, and critical applications
• Storm Control: Broadcast and multicast storm protection for network stability

⚡ Performance

• Switching Capacity: Wire-speed forwarding enabled by Gen7 ASIC architecture for low latency and high throughput
• Forwarding Rate: High million packets per second (Mpps) rate to handle bandwidth-intensive traffic smoothly
• MAC Table: Large MAC address table for extensive device support
• Jumbo Frames: Supports jumbo frames for improved efficiency with larger payloads

🏗️ Form Factor & Installation

• Form Factor: 1U Rack-Mount switch for easy integration into standard network racks
• Dimensions: Industry-standard 1U height, designed for dense rack environments
• Cooling: Fan-cooled for optimal thermal management in active network deployments
• Power: Supports hot-swappable, redundant power supplies for enhanced reliability

📦 What's in the Box

• Aruba CX 6200F Switch unit
• Power cord
• Rack-mount brackets
• Console cable
• Quick installation guide

🛡️ Warranty

Backed by a Limited Lifetime Warranty.

Experience reliable, scalable networking with simplified management to future-proof your enterprise infrastructure.
